Rear Wiper Motor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Rear Wiper Motor Replacement Components With Torque Specifications (1 Of 3)
GTY199283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

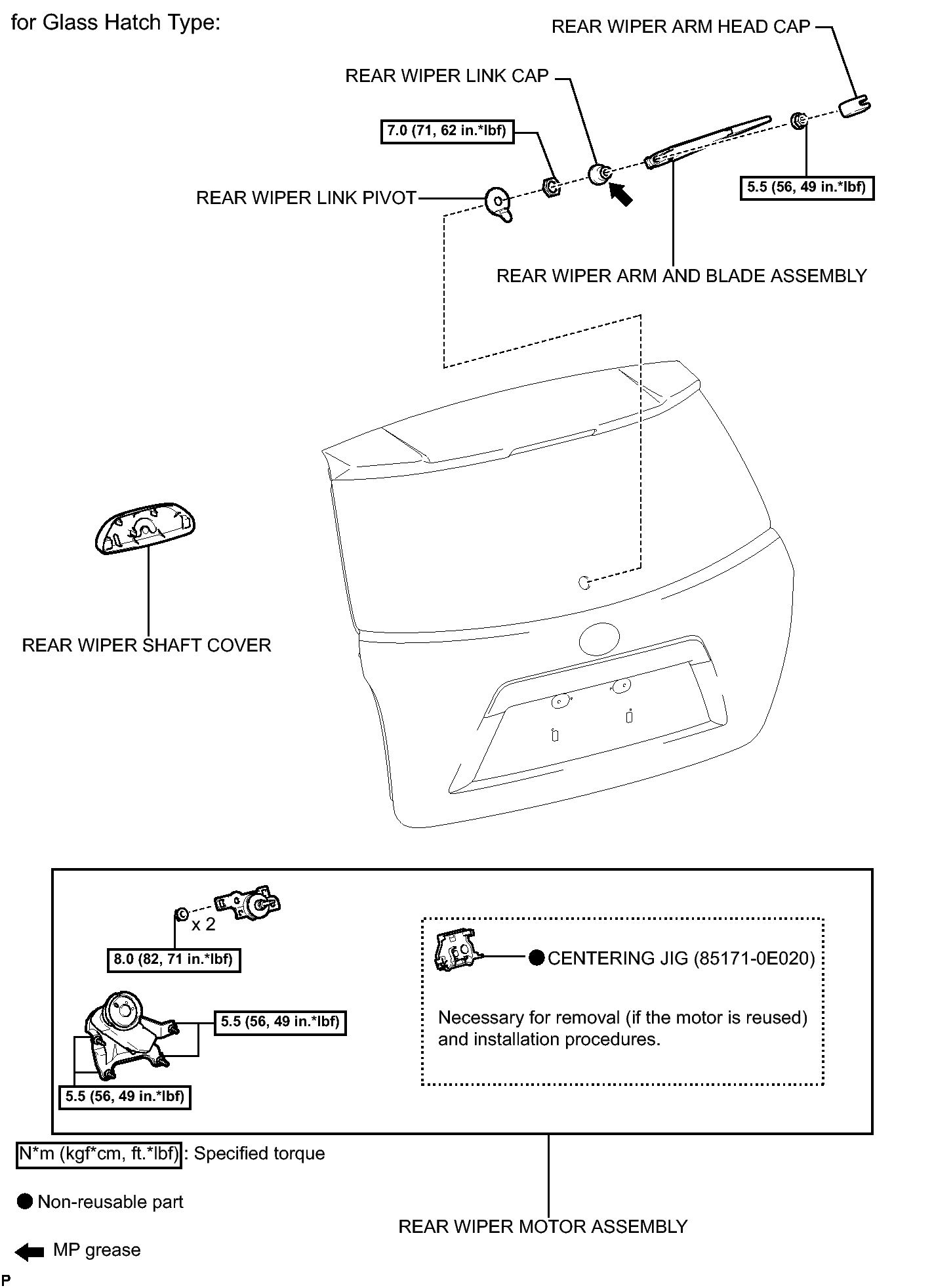

Fig 1: Identifying Rear Wiper Motor Replacement Components With Torque Specifications (2 Of 3)
GTY299778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Wiper Motor Replacement Components With Torque Specifications (3Of 3)
GTY208124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
