Transmission Control Switch Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

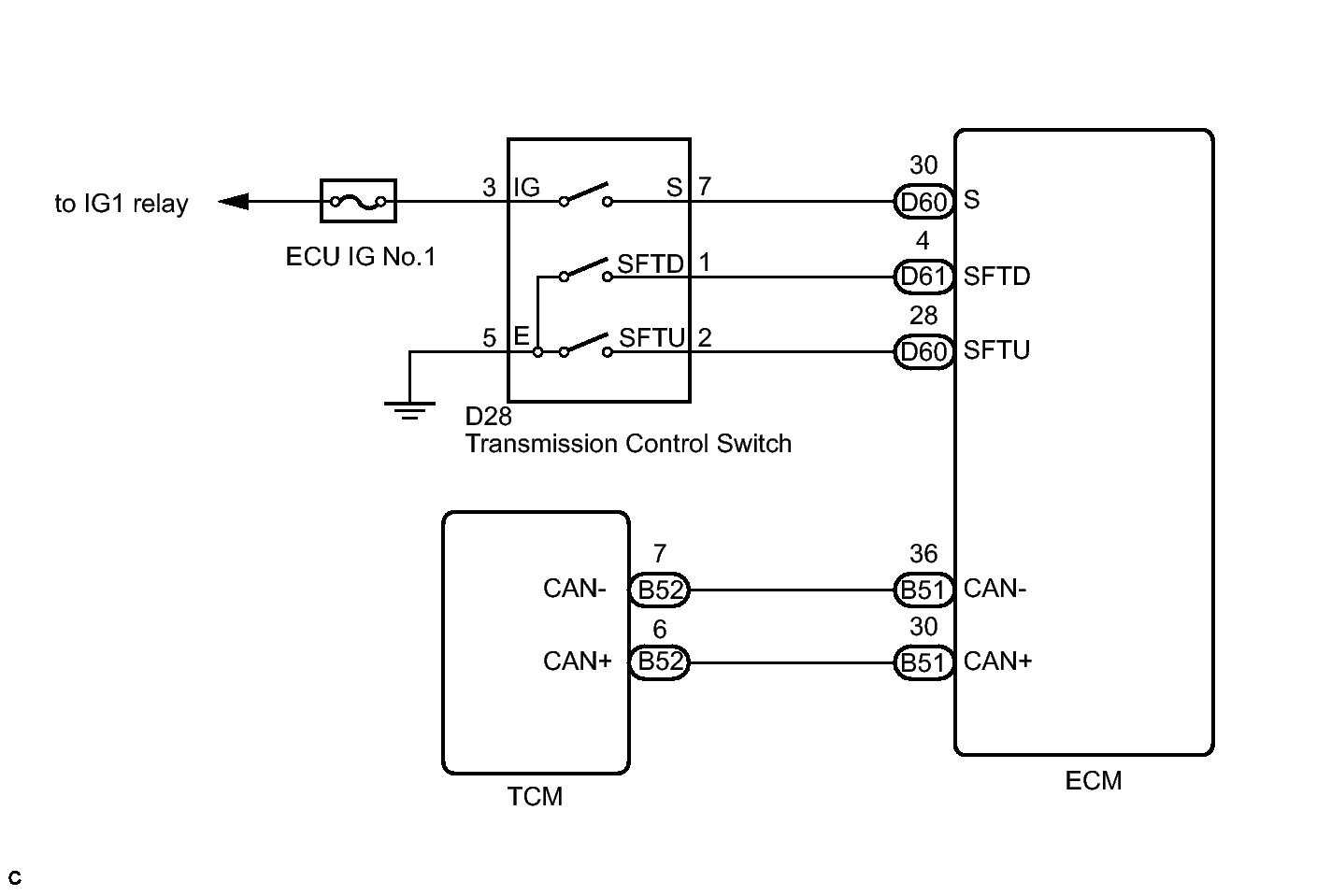

Fig 1: TCM And ECM - Wiring Diagram
GTY306031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
