ECU Power Source Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

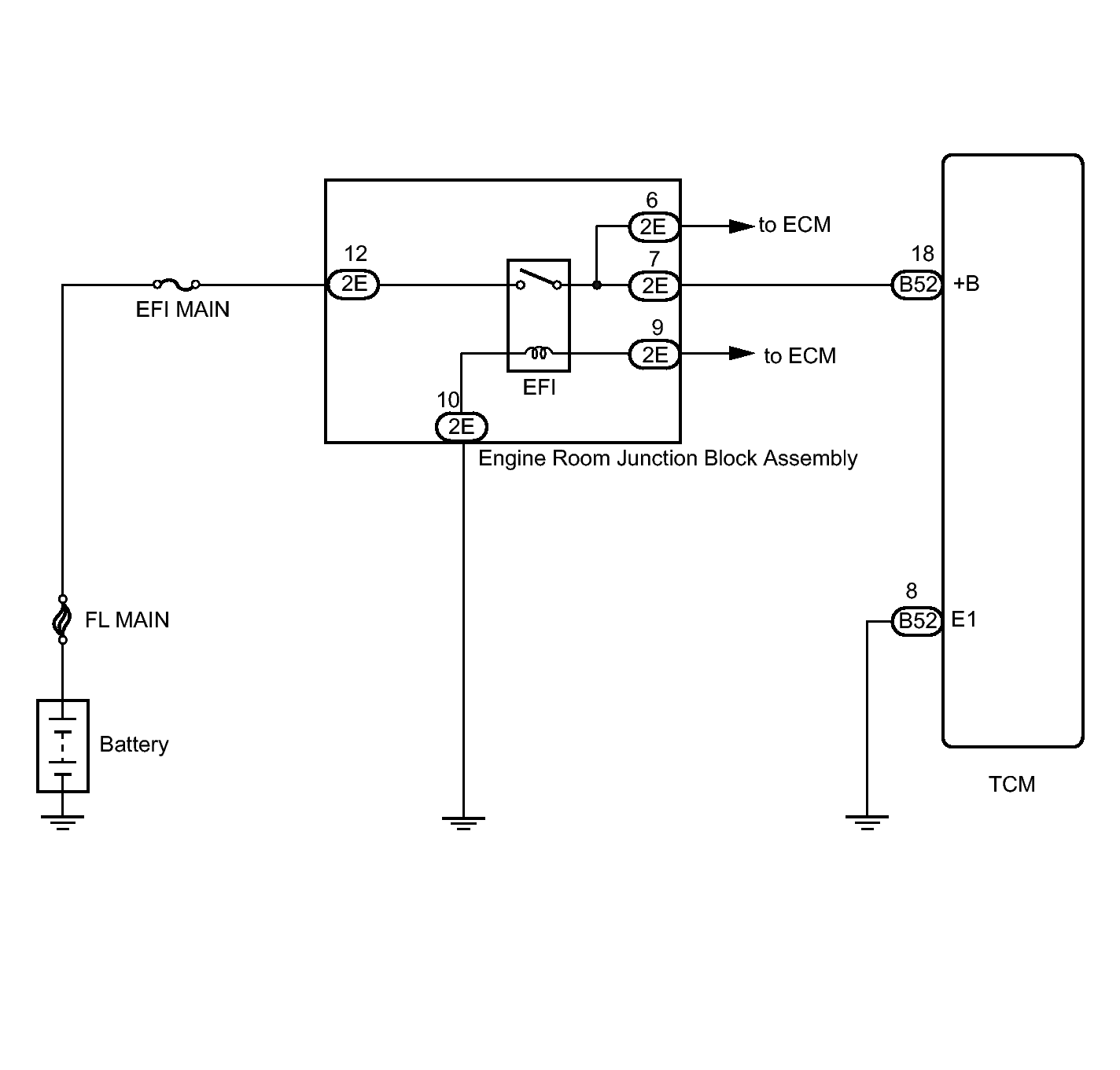

Fig 1: Engine Room Junction Block Assembly - Wiring Diagram
GTY205651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
