DTC P2810: Pressure Control Solenoid "G" Electrical (Shift Solenoid Valve SL4): Procedure

1. Remove the TCM from the transaxle.

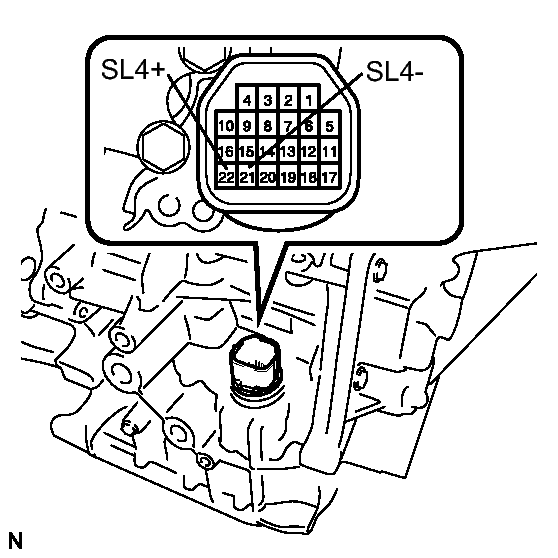

   Fig 1: Inspecting Transmission Wire (SL4 Circuit)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   22 (SL4+) - 21 (SL4-)	20°C (68°F)	5.0 to 5.6 Ω
   22 (SL4+) - Body ground	Always	10 kΩ or higher
   21 (SL4-) - Body ground	Always	10 kΩ or higher
   22 (SL4+) - All other terminals except 21 (SL4-)	Always	10 kΩ or higher
   21 (SL4-) - All other terminals except 22 (SL4+)	Always	10 kΩ or higher

   Result

   Result	Proceed to
   OK	B
   NG	A

B → See step   4

A: Go to next step

1. Remove shift solenoid valve SL4.

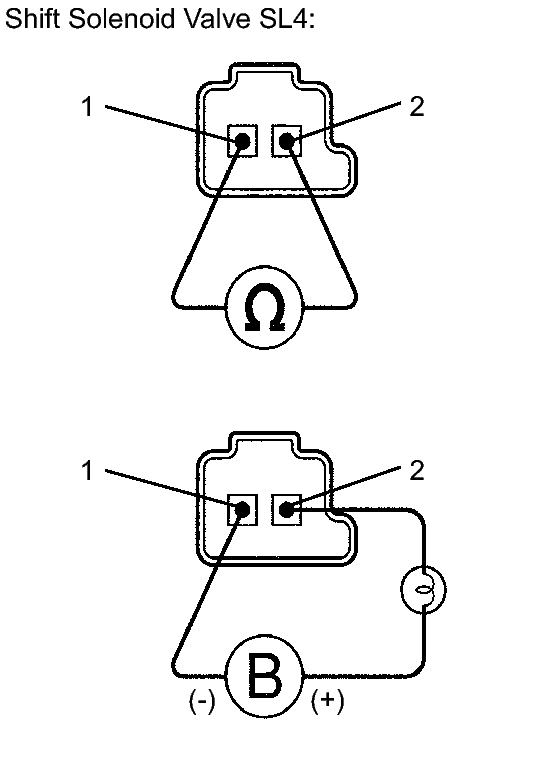

   Fig 2: Identifying Shift Solenoid Valve SL4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	20°C (68°F)	5.0 to 5.6 Ω

3. Connect a battery positive (+) lead with a 21 W bulb to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating sound.

   OK

   Valve moves and makes an operating sound.

NG → See step   5

OK → See step   3
