DTC P2769: Short in Torque Converter Clutch Solenoid Circuit (Shift Solenoid Valve SL); DTC P2770: Open in Torque Converter Clutch Solenoid Circuit (Shift Solenoid Valve SL): Procedure

1. Remove the TCM from the transaxle.

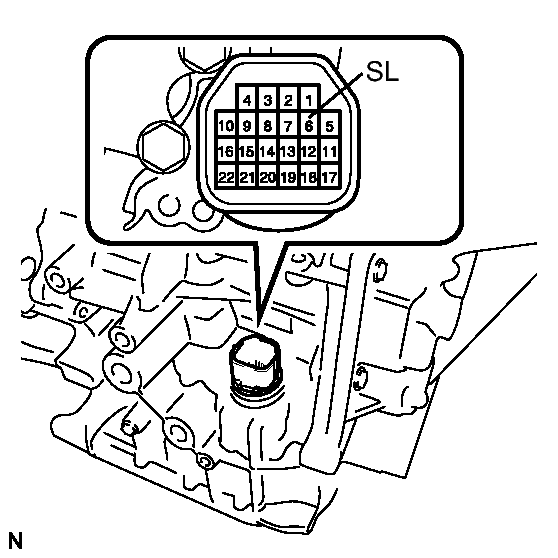

   Fig 1: Inspecting Transmission Wire (Shift Solenoid Valve SL)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   6 (SL) - Body ground	20°C (68°F)	11 to 15 Ω

   Result

   Result	Proceed to
   OK	B
   NG	A

B → See step   4

A: Go to next step

1. Remove shift solenoid valve SL.
   Fig 2: Inspecting Shift Solenoid Valve SL

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Solenoid Connector (SL) - Solenoid Body (SL)	20°C (68°F)	11 to 15 Ω

NG → See step   5

OK → See step   3
