DTC P2759: Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU): Description
WARNING: This page is about a different variant/trim than selected.
The amount of current flow to the solenoid is controlled by the duty ratio* of the TCM output signal. The higher the duty ratio becomes, the higher the lock-up hydraulic pressure becomes during the lock-up operation.

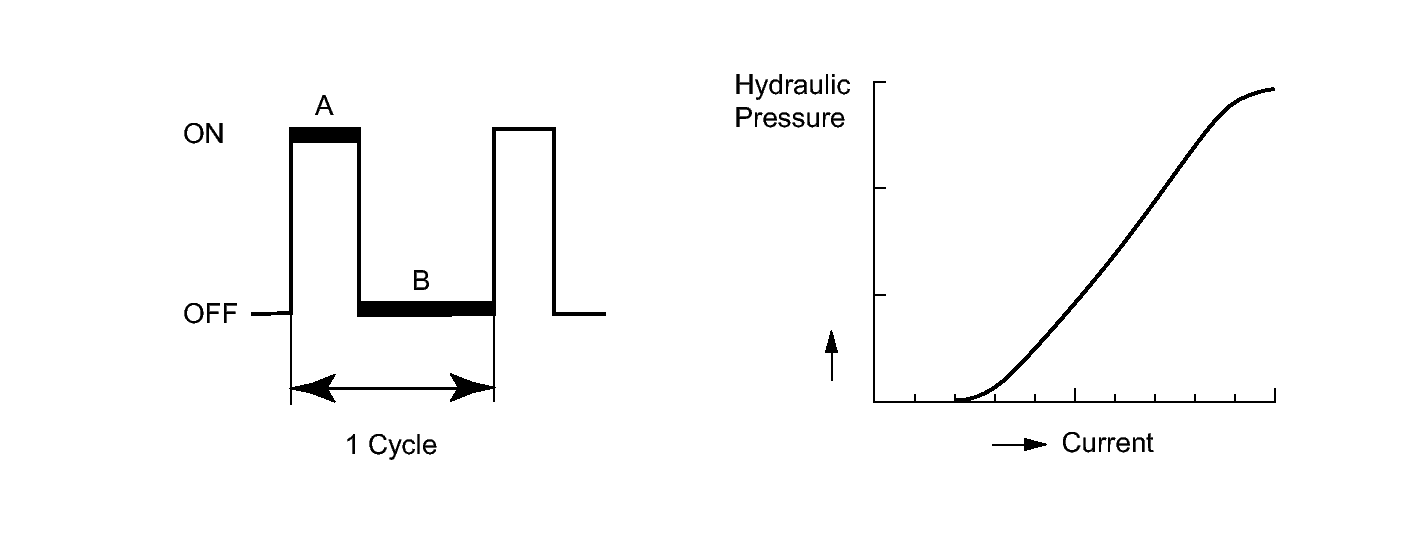

*: Duty Ratio
The duty ratio is the ratio of the electrical current on time (A) to the total of the electrical current on and off time (A + B).
Duty Ratio (%) = (A / (A + B) x 100
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| P2759 | Open or short is detected in shift solenoid valve SLU circuit for 1 second or more while driving (1-trip detection logic). |
|
