DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

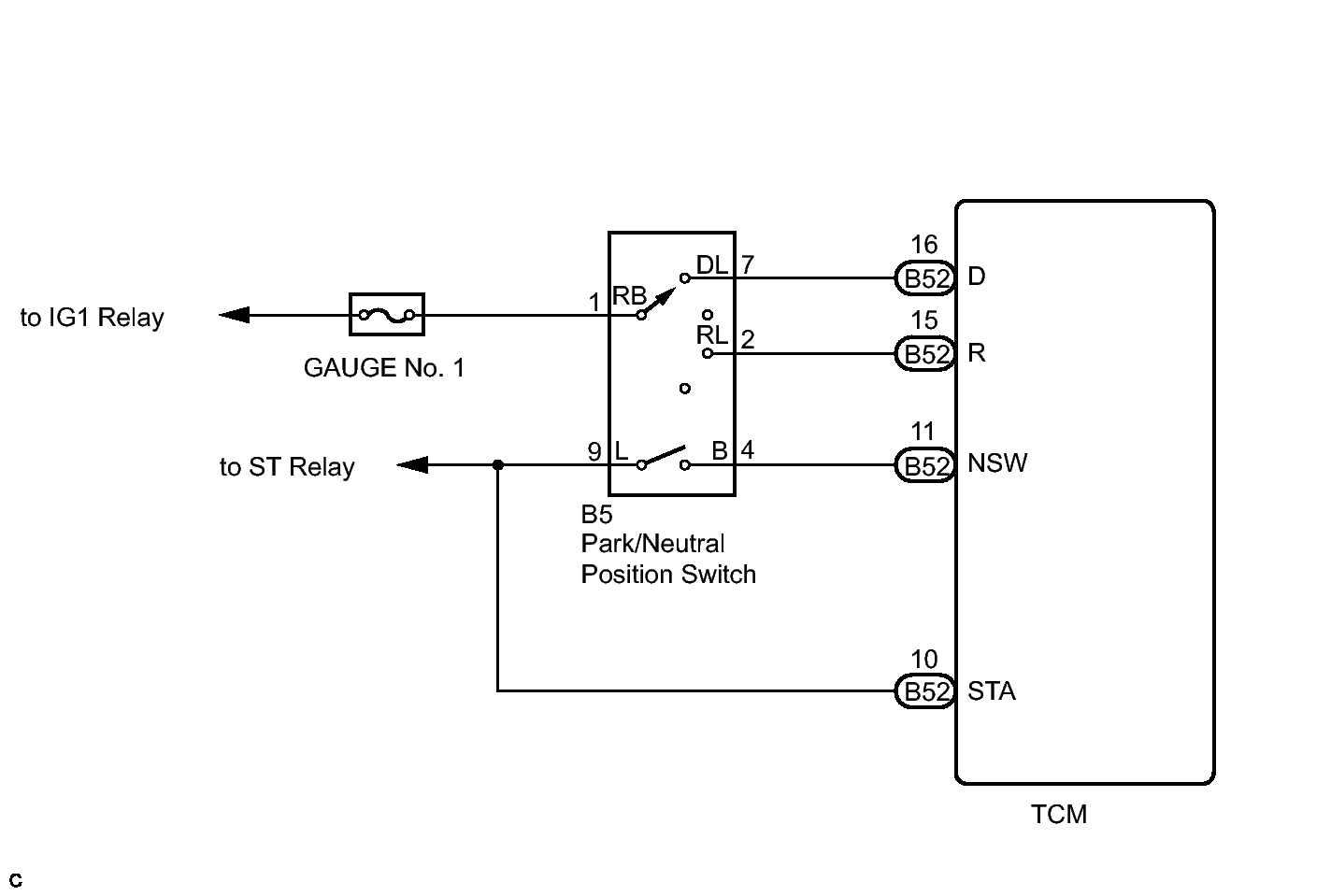

Fig 1: Park/Neutral Position Switch And TCM - Wiring Diagram
GTY201965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
