REAR SPEED SENSOR (for 4WD): Installation: Installation

WARNING: This page is about a different variant/trim than selected.

HINT:

Use the same procedure for the LH side and RH side.
The following procedure is for the LH side.
If the sensor rotor needs to be replaced, replace it together with the outboard joint shaft assembly, refer to INSTALLATION .

INSTALL REAR SPEED SENSOR
1. Install the rear speed sensor with the bolt.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
  NOTE:
  - Keep the rear speed sensor tip and sensor installation hole free from foreign matter.
  Fig 1: Locating Rear Speed Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 1 clamp and No. 2 clamp with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  NOTE:
  Do not twist the rear speed sensor wire when installing the clamp.

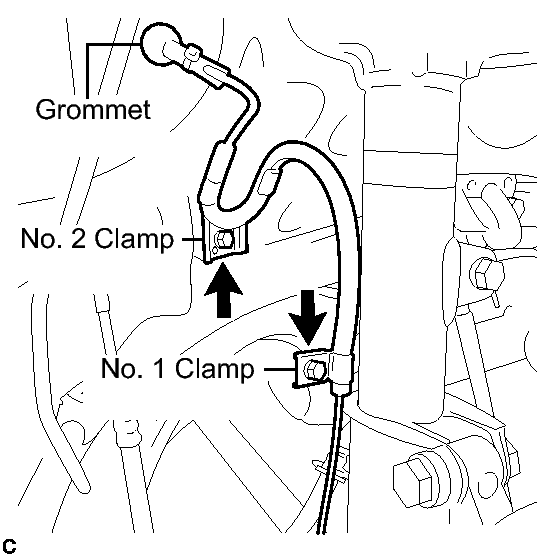

  Fig 2: Locating No. 1 And No. 2 Clamp With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Insert the connector and grommet to the inside of the vehicle through the passage hole in the wheel well.
  NOTE:
  Make sure the grommet's band clamp remains on the outside of the vehicle.
4. Hold the grommet and pull it from the inside of the vehicle to the outside of the vehicle. Then fix it in place so that it is not tilted.
  NOTE:
  When pulling out the grommet, do not grip the sensor wire.
5. Connect the rear speed sensor connector.

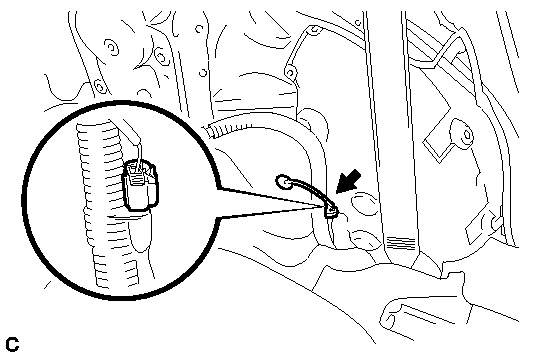

  Fig 3: Locating Rear Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH . Refer to INSTALLATION - Step 27
CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH . Refer to INSTALLATION - Step 5
INSTALL FRONT DECK SIDE TRIM COVER LH . Refer to INSTALLATION - Step 29
INSTALL NO. 2 DECK SIDE TRIM HOOK . Refer to INSTALLATION - Step 30
INSTALL ROPE HOOK ASSEMBLY (for LH Side) . Refer to INSTALLATION - Step 31
INSTALL REAR DECK TRIM COVER (w/o Remote Folding Function) . Refer to INSTALLATION - Step 32
INSTALL RECLINING REMOTE CONTROL LEVER BEZEL LH (w/ Remote Folding Function) . Refer to INSTALLATION - Step 33
INSTALL REAR POWER OUTLET SOCKET COVER . Refer to INSTALLATION - Step 1
INSTALL REAR POWER POINT SOCKET ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL REAR COMBINATION LIGHT SERVICE COVER LH . Refer to INSTALLATION - Step 36
INSTALL SIDE TRIM COVER LH (w/o Rear Seat Entertainment System) . Refer to INSTALLATION - Step 37
INSTALL POWER OUTLET SOCKET BEZEL (w/ Rear Seat Entertainment System) . Refer to INSTALLATION - Step 38
INSTALL DECK SIDE TRIM LH . Refer to INSTALLATION - Step 39
INSTALL DECK SIDE TRIM COVER LH . Refer to INSTALLATION - Step 40
INSTALL REAR FLOOR FINISH PLATE . Refer to INSTALLATION - Step 55
INSTALL REAR NO. 2 SEAT ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL CENTER SEAT CUSHION COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 2
CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH . Refer to INSTALLATION - Step 27
CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH . Refer to INSTALLATION - Step 28
INSTALL REAR MAT . Refer to INSTALLATION - Step 62
INSTALL DECK FLOOR BOARD ASSEMBLY . Refer to INSTALLATION - Step 63
INSTALL DECK SIDE TRIM BOX LH . Refer to INSTALLATION - Step 64
INSTALL REAR SEAT SIDE COVER LH . Refer to INSTALLATION - Step 65
INSTALL DECK SIDE TRIM BOX RH . Refer to INSTALLATION - Step 66
INSTALL JACK CARRIER ASSEMBLY . Refer to INSTALLATION - Step 67
INSTALL JACK ASSEMBLY . Refer to INSTALLATION - Step 68
INSTALL JACK CARRIER CUSHION . Refer to INSTALLATION - Step 69
INSTALL JACK CARRIER SUPPORT
INSTALL REAR SEAT SIDE COVER RH . Refer to INSTALLATION - Step 71
INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover) . Refer to INSTALLATION - Step 72
INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY . Refer to INSTALLATION - Step 73
INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY . Refer to INSTALLATION - Step 74
INSTALL DECK BOARD ASSEMBLY . Refer to INSTALLATION - Step 75
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH . Refer to INSTALLATION - Step 79
INSTALL REAR DOOR SCUFF PLATE LH . Refer to INSTALLATION - Step 80
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected, refer to INITIALIZATION .
CHECK FOR SPEED SENSOR SIGNAL
Refer to TEST MODE PROCEDURE
