DOWNHILL ASSIST CONTROL SWITCH (for 4WD): Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL DOWNHILL ASSIST CONTROL SWITCH
1. Engage the 2 claws and install the downhill assist control switch.

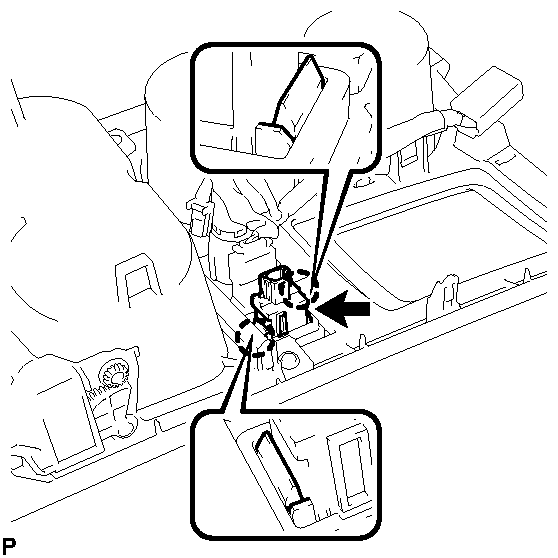

  Fig 1: Identifying Downhill Assist Control Switch Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the downhill assist control switch connector.

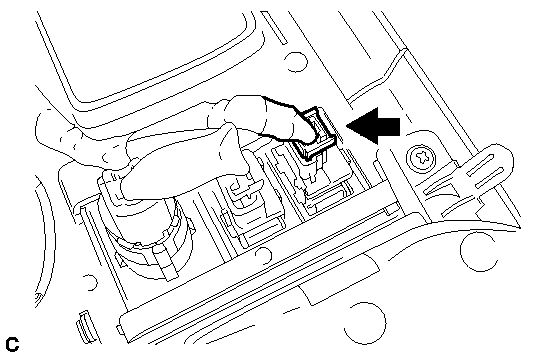

  Fig 2: Identifying Downhill Assist Control Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 22
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/ Smart Key System) . Refer to INSTALLATION - Step 36
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Smart Key System) . Refer to INSTALLATION - Step 35
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected, refer to INITIALIZATION
CHECK FOR WARNING LIGHT AND INDICATOR LIGHT
Refer to TEST MODE PROCEDURE
