Intake Manifold: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL INTAKE AIR CONTROL VALVE ACTUATOR (for TCV)  See step  1
  2. INSTALL ENGINE MOUNTING DAMPER
    1. Install the engine mounting damper with the 3 bolts.

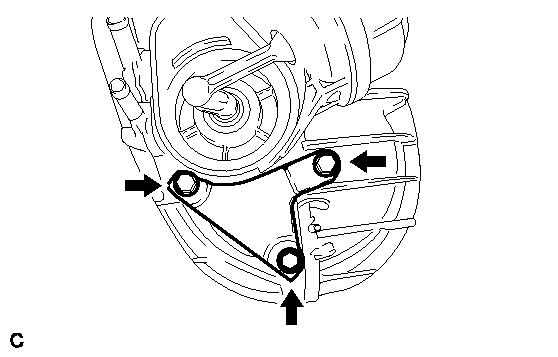

      Fig 1: Locating Engine Mounting Damper Bolts
      GTY182645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  3. INSTALL WIRING HARNESS CLAMP BRACKET
    1. Install the bracket with the bolt.

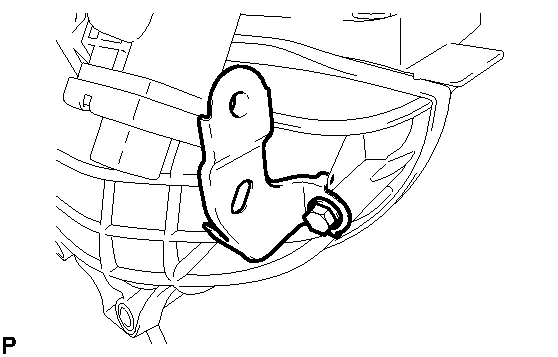

      Fig 2: Identifying Wiring Harness Clamp Bracket Bolts
      GTY179295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  4. INSTALL CHECK VALVE
    1. Connect the 2 vacuum hoses to the intake manifold to install the check valve.

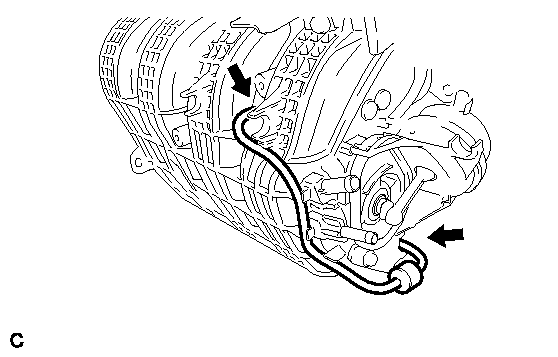

      Fig 3: Locating Check Valve
      GTY182743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check that the check valve is installed as shown in the illustration.

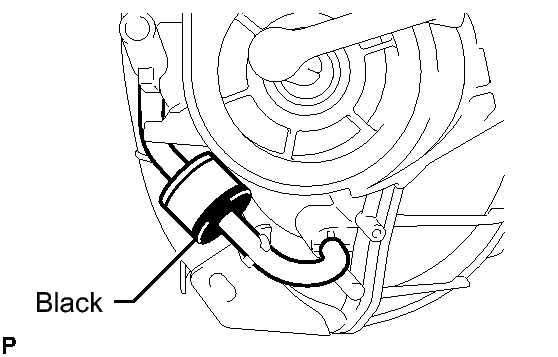

      Fig 4: Identifying Check Valve
      GTY187029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL INTAKE MANIFOLD
    1. Close the tumble control valves.

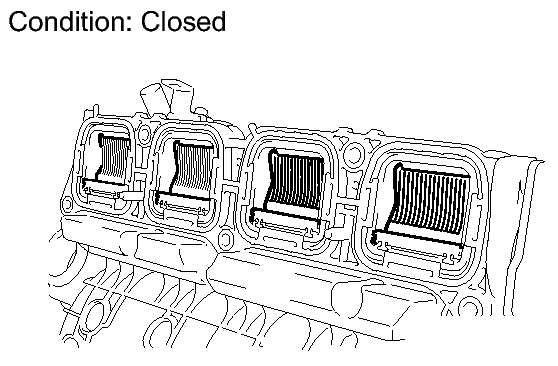

      Fig 5: Identifying Tumble Control Valves Closed Position
      GTY168667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      The valves may be damaged if they are not closed before installing the intake manifold.

      HINT:

      Connect the battery to the terminals of the actuator and operate the motor to close the valves, refer to ON-VEHICLE INSPECTION - Step 3 .

    2. Install a new gasket to the intake manifold.

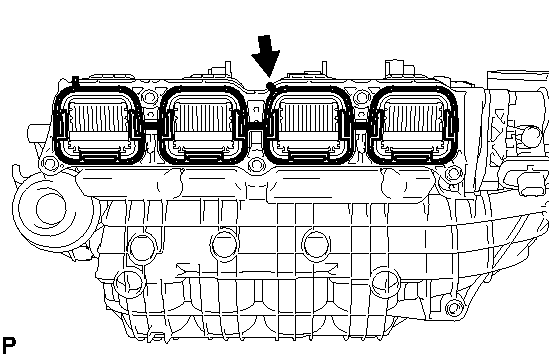

      Fig 6: Locating Gasket And Intake Manifold
      GTY195326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the intake manifold by tightening the 6 bolts in the sequence shown in the illustration.

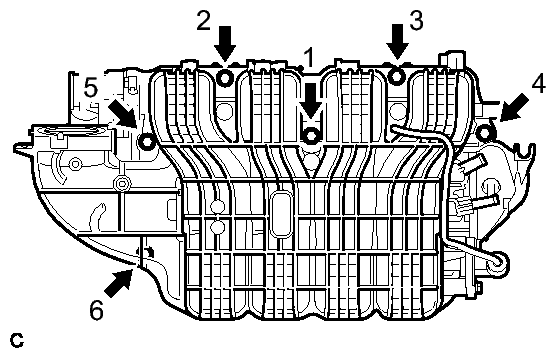

      Fig 7: Locating Intake Manifold And Bolts
      GTY195261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    4. Connect the intake air control actuator connector.

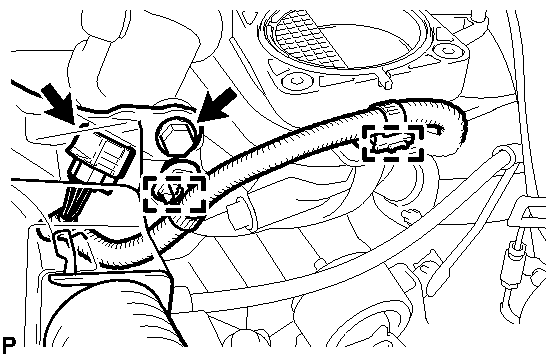

      Fig 8: Locating Intake Air Control Valve Actuator Connector
      GTY184934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Attach the 2 clamps to the intake manifold and bracket.
    6. Install the wire harness with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    7. Install the wire harness bracket with the bolt.

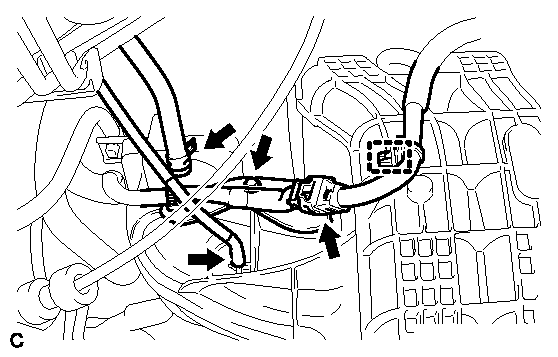

      Fig 9: Locating Fuel Vapor Feed Hose, Vacuum Hose, Clamp And Connector
      GTY195263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    8. Connect the fuel vapor feed hose, vacuum hose, clamp and connector.
    9. Install the 2 wire harness brackets with the 2 bolts.

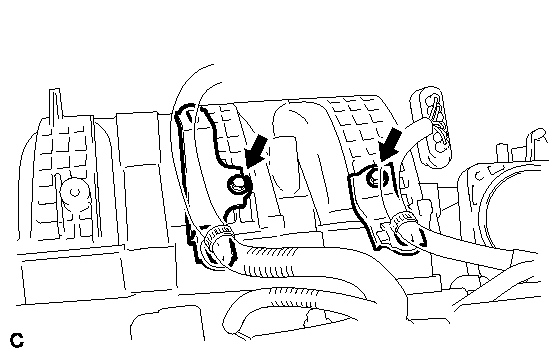

      Fig 10: Locating Wire Harness Brackets And Bolts
      GTY179692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    10. Connect the 4 clamps and wire harness.

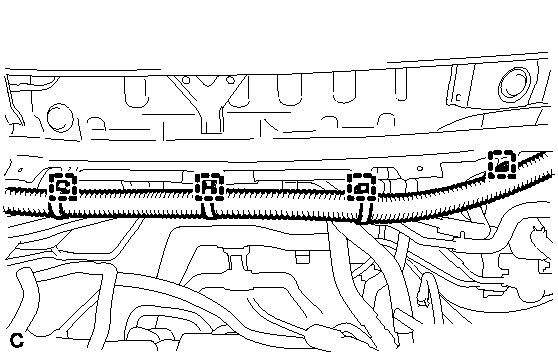

      Fig 11: Identifying Clamps And Wire Harness
      GTY195258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 2
  7. INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY  . Refer to INSTALLATION - Step 1
  8. CONNECT UNION TO CONNECTOR TUBE HOSE
    1. Connect the union to connector tube hose to the intake manifold.

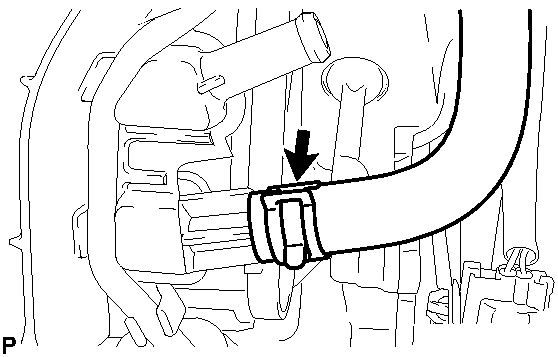

      Fig 12: Locating Connector Tube Hose
      GTY177841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. CONNECT NO. 2 VENTILATION HOSE
    1. Connect the No. 2 ventilation hose to the intake manifold.

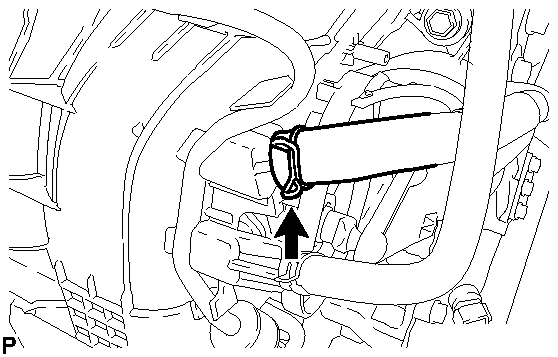

      Fig 13: Locating No. 2 Ventilation Hose
      GTY194989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)
    1. Install the vacuum switching valve (for ACIS) with the bolt.

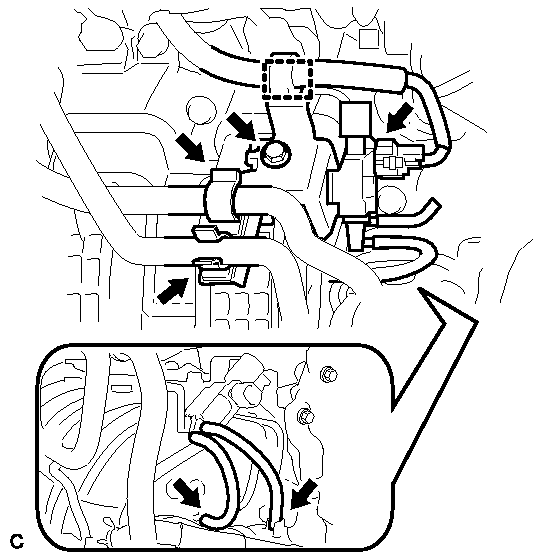

      Fig 14: Locating Vacuum Hoses, Connector Tube Hoses, Clamp And Connector
      GTY195325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

    2. Connect the 2 vacuum hoses, 2 union to connector tube hoses, clamp and connector.
  11. CONNECT OUTLET HEATER WATER HOSE  . Refer to INSTALLATION - Step 45
  12. CONNECT INLET HEATER WATER HOSE  . Refer to INSTALLATION - Step 46
  13. INSTALL THROTTLE BODY ASSEMBLY
    1. Install the throttle body assembly, refer to INSTALLATION .
  14. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected, refer to INITIALIZATION .

  15. INSPECT FOR FUEL LEAK

    HINT:

    Refer to PRECAUTION .
