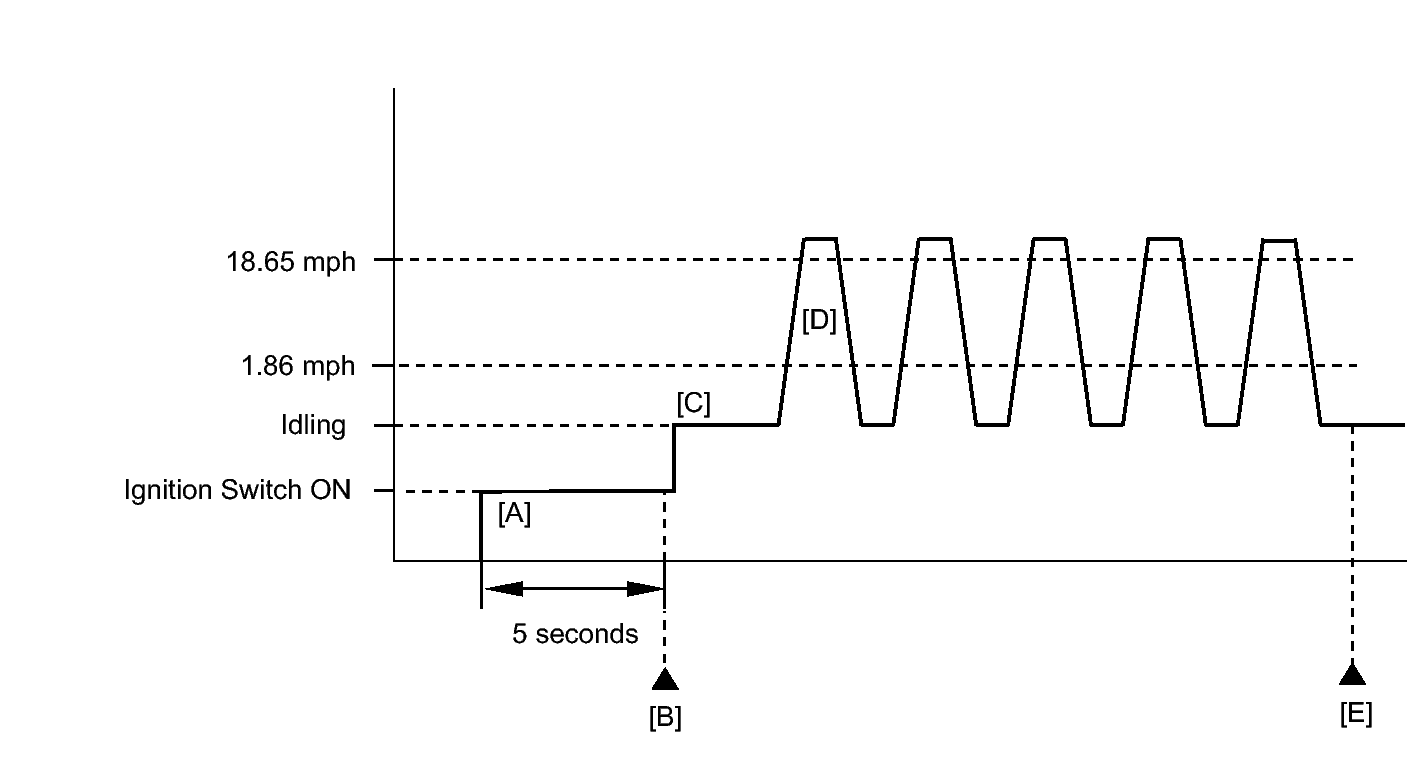

Confirmation Driving Pattern
WARNING: This page is about a different variant/trim than selected.
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON and turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Turn the ignition switch off.
- Turn the ignition switch to ON and turn the Techstream on [A].
- Wait 5 seconds after clear DTCs.
- Enter the following menus: Powertrain / Engine / Utility / All Readiness.
- Input the DTC: P0724.
- Check the DTC judgment result [B].
Techstream Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
UNKNOWN - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
WARNING:When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [C] through [E].
- Start the engine [C].
- Accelerate the vehicle to 18.65 mph (30 km/h) or more, depress the brake pedal and decelerate the vehicle to 1.86 mph (3 km/h) or less [D]. Repeat step [D] 5 times.
- Check the DTC judgment result [E].
- If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
- Read Pending DTCs.
HINT:
If a pending DTC is output, the system is malfunctioning.
- If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs, refer to DTC CHECK / CLEAR
.
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
