DTC P0500: Vehicle Speed Sensor "A": Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

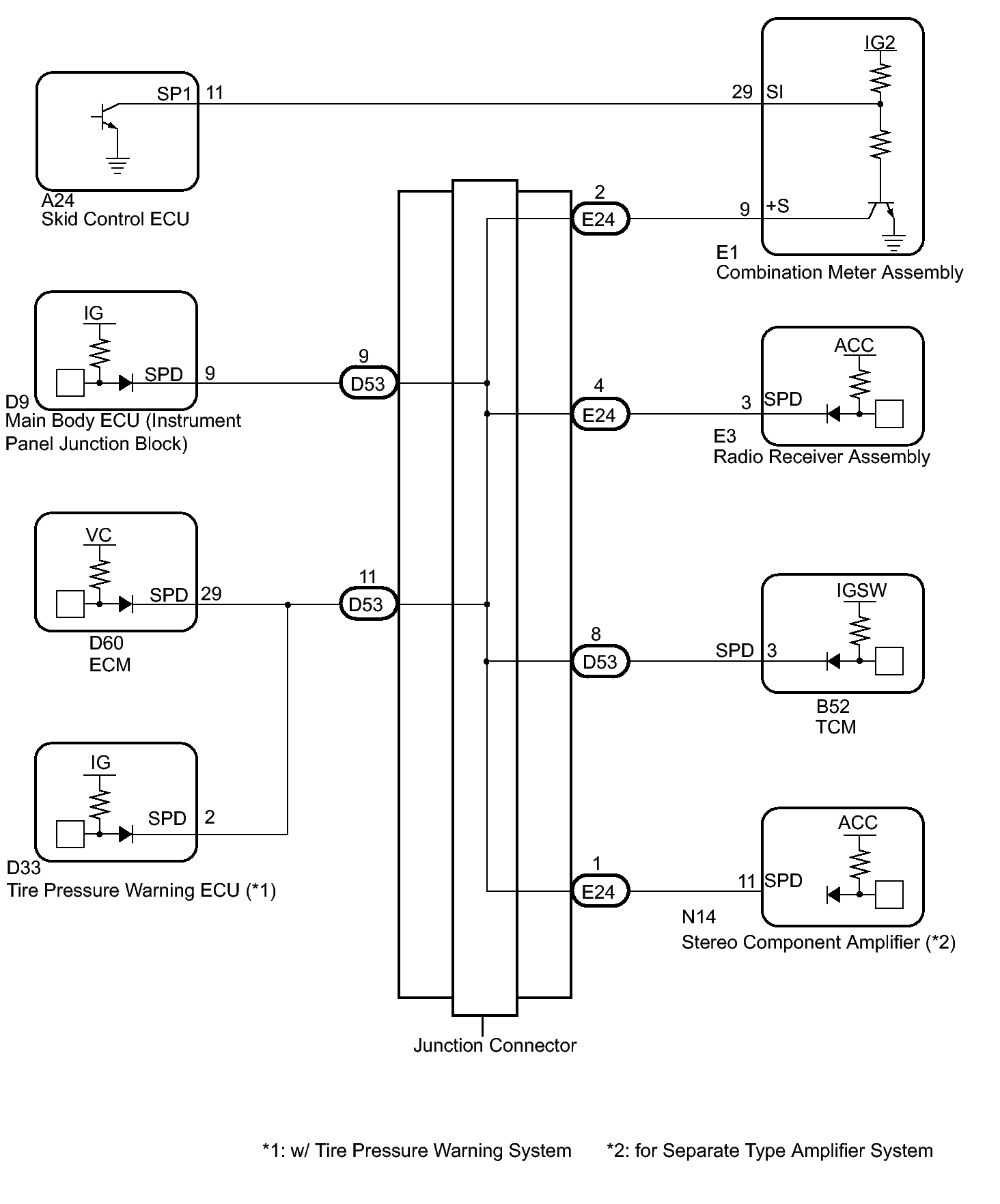

Fig 1: Vehicle Speed Signal Circuit Between Radio Receiver And Combination Meter - Wiring Diagram (For 1AR-FE)
GTY305482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
