Section 48 (Engine Control System (1AR-FE) (Diagnostic Codes (P0420-P1603) & Circuit Tests))
>>
SFI System
>>
DTC P0420: Catalyst System Efficiency Below Threshold (Bank 1)
>>
Catalyst Location
Catalyst Location
WARNING:
This page is about a different variant/trim than selected.

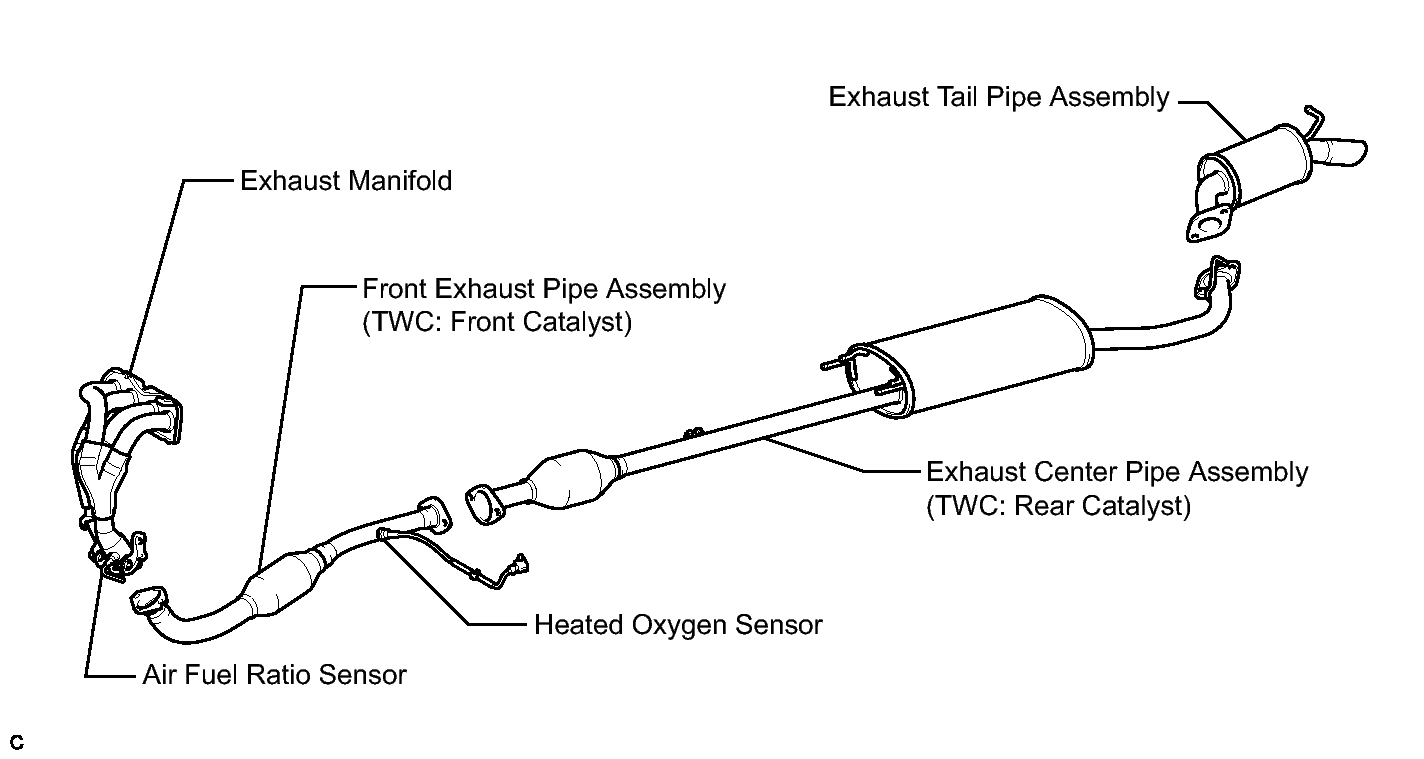

Fig 1: Identifying Catalyst System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
