Section 47 (Air Conditioning System (Manual) (Diagnostics - Introduction))
>>
AIR CONDITIONING SYSTEM (for Manual Air Conditioning System)
>>
Parts Location
>>
Illustration
Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

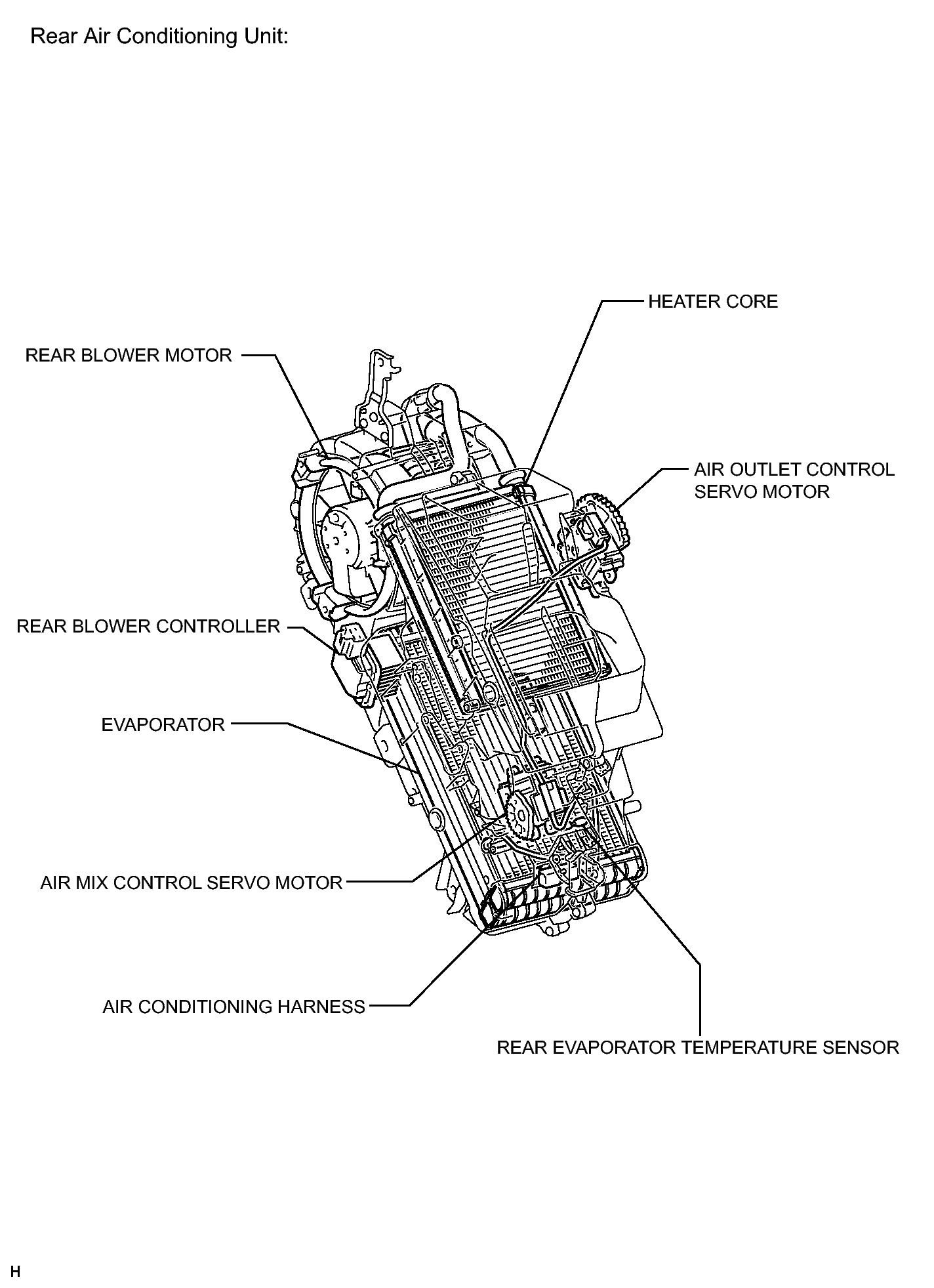

Fig 1: Identifying Air Conditioning System Components Locations (1 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

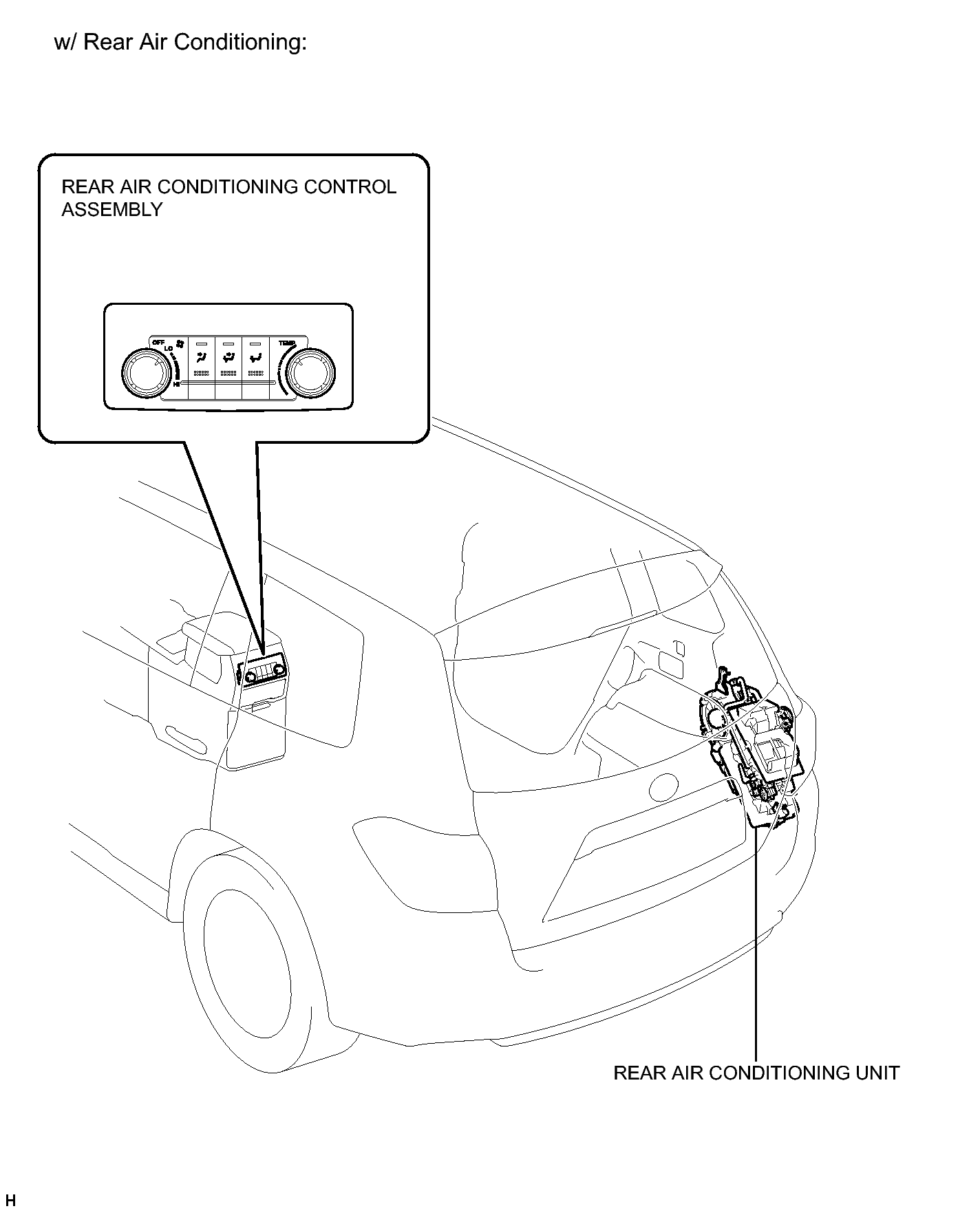

Fig 1: Identifying Air Conditioning System Components Locations (2 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

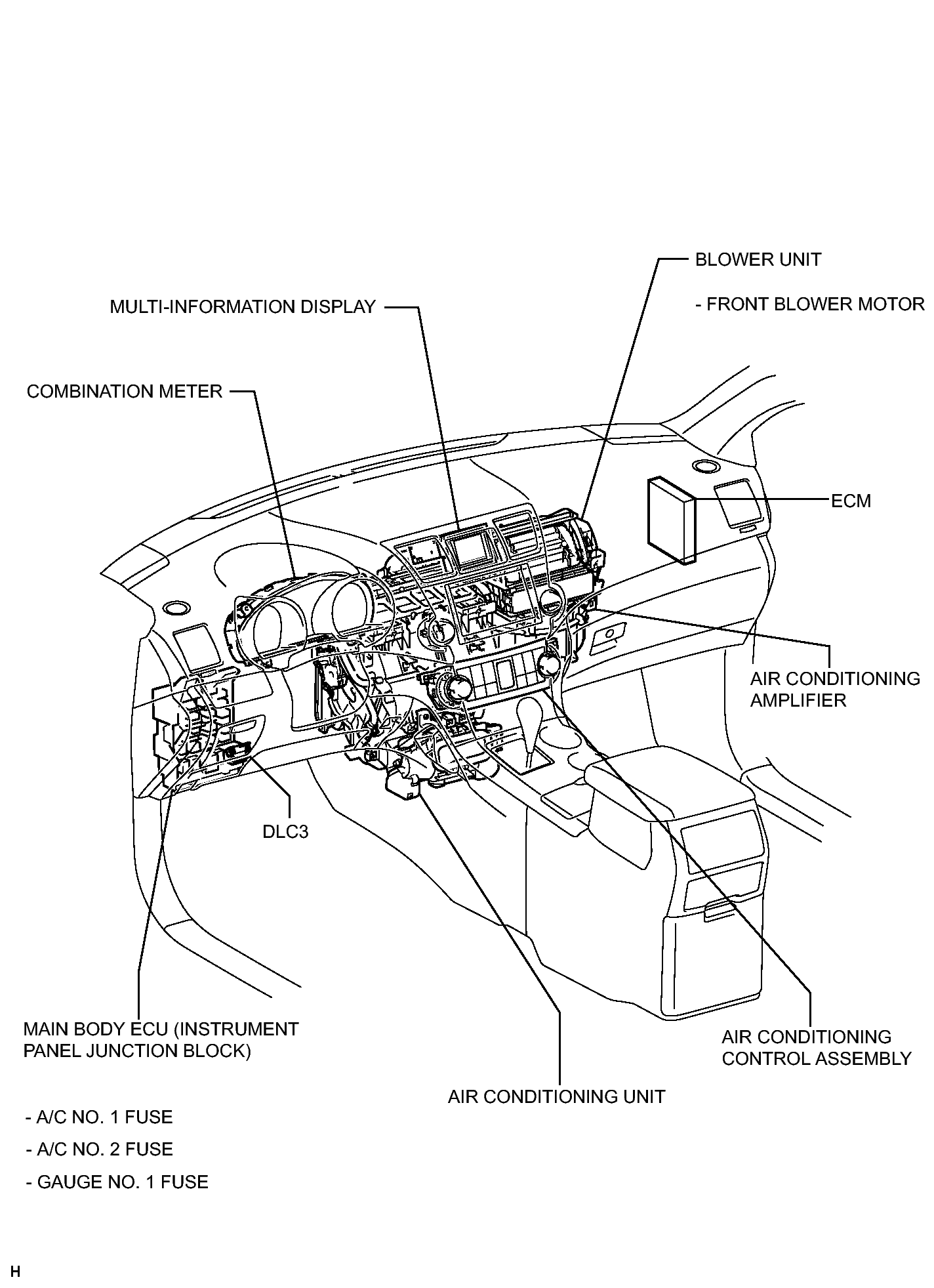

Fig 1: Identifying Air Conditioning System Components Locations (3 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

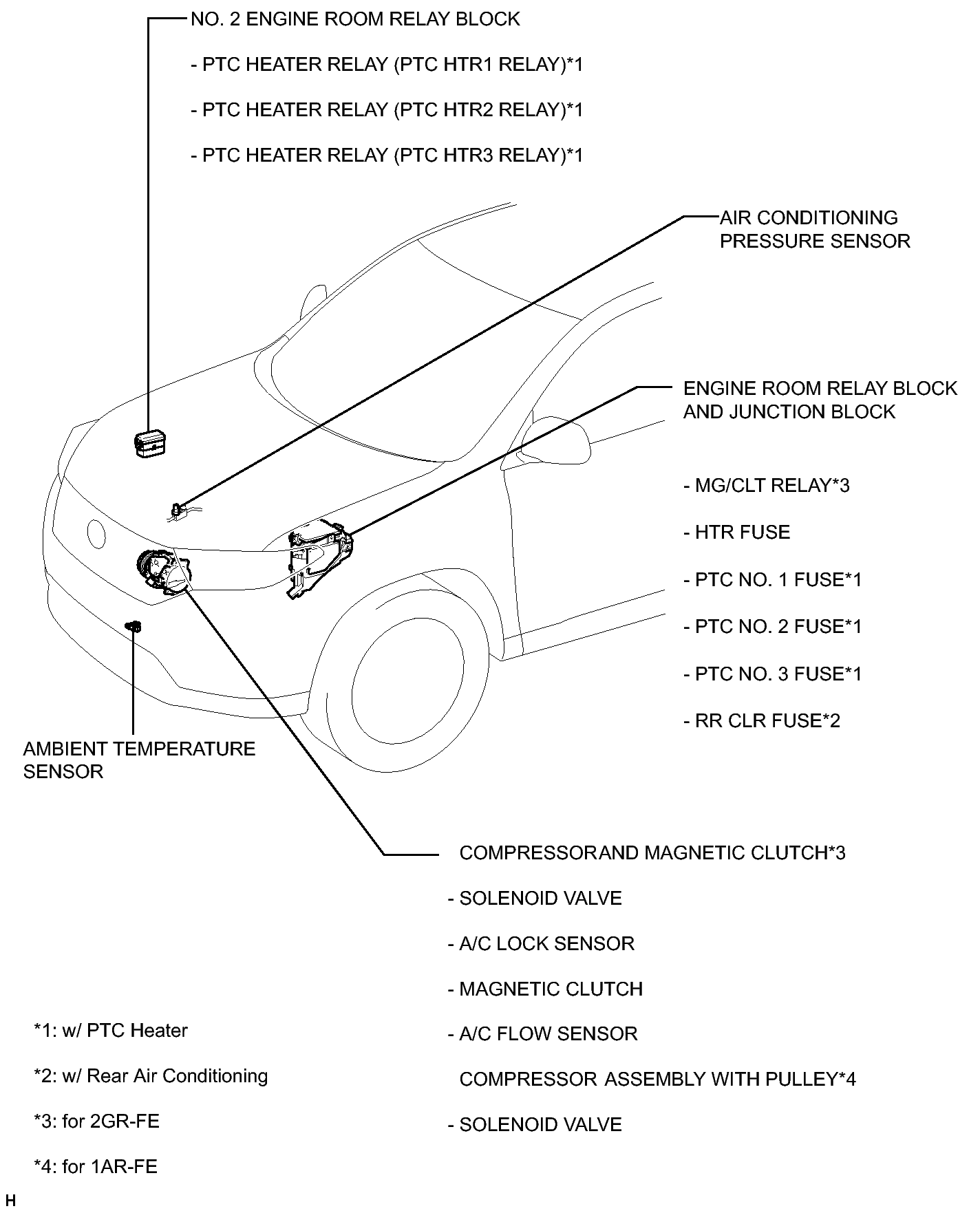

Fig 1: Identifying Air Conditioning System Components Locations (4 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

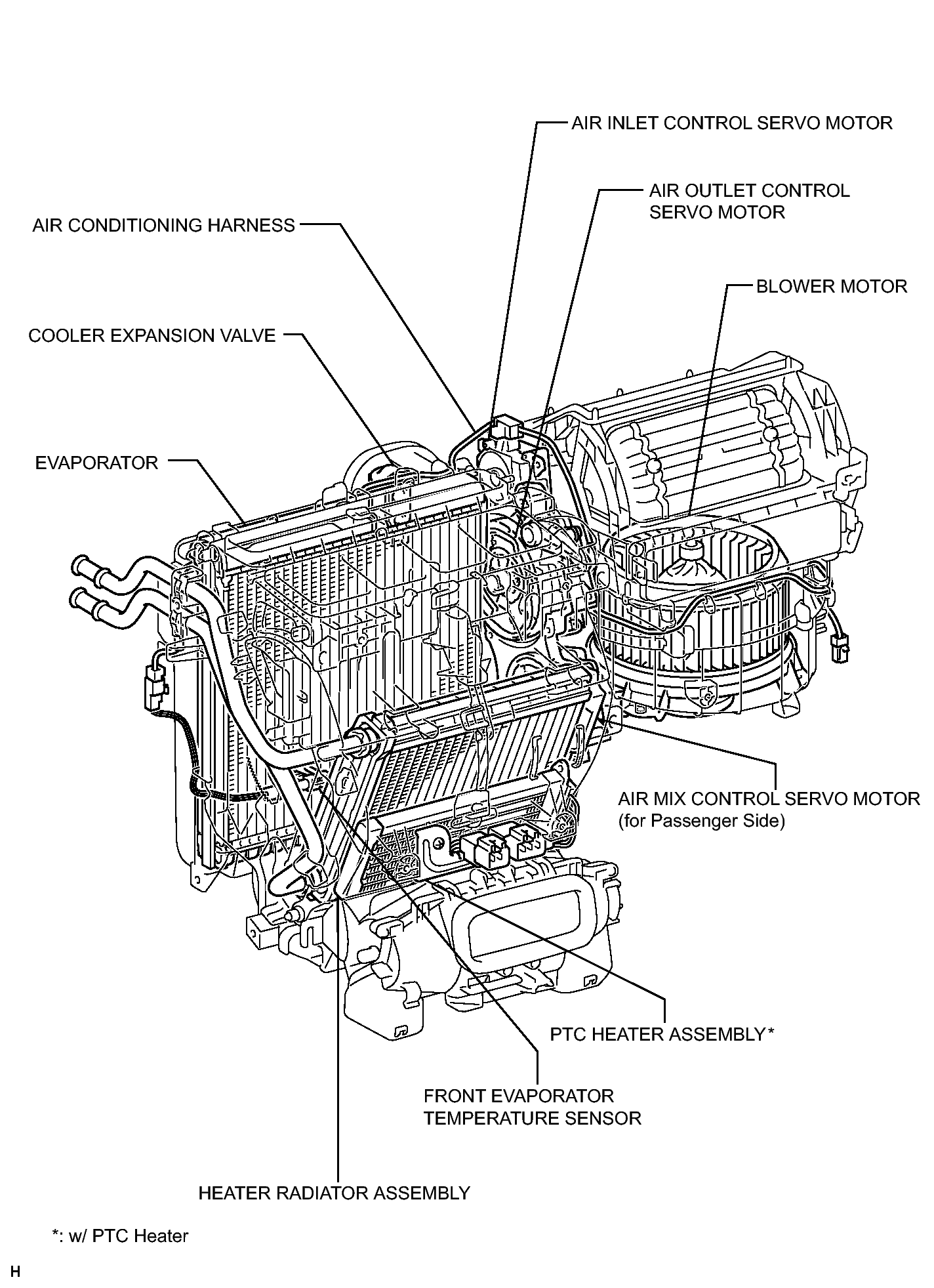

Fig 1: Identifying Air Conditioning System Components Locations (5 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
