Section 46 (Air Conditioning System (Automatic) (Diagnostics - Introduction))
>>
AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System)
>>
Parts Location
>>
Illustration
Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

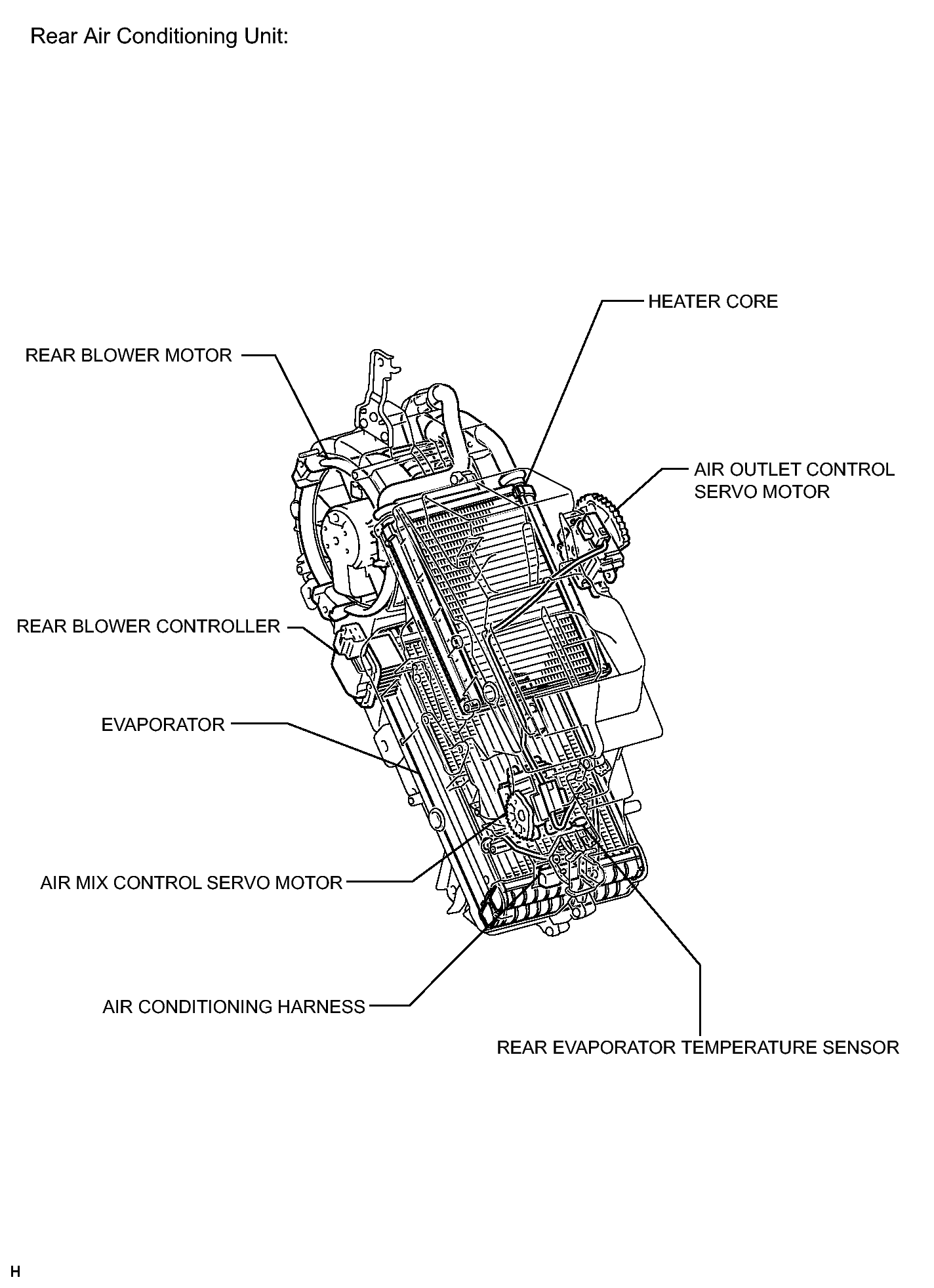

Fig 1: Identifying Air Conditioning System Components Locations (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

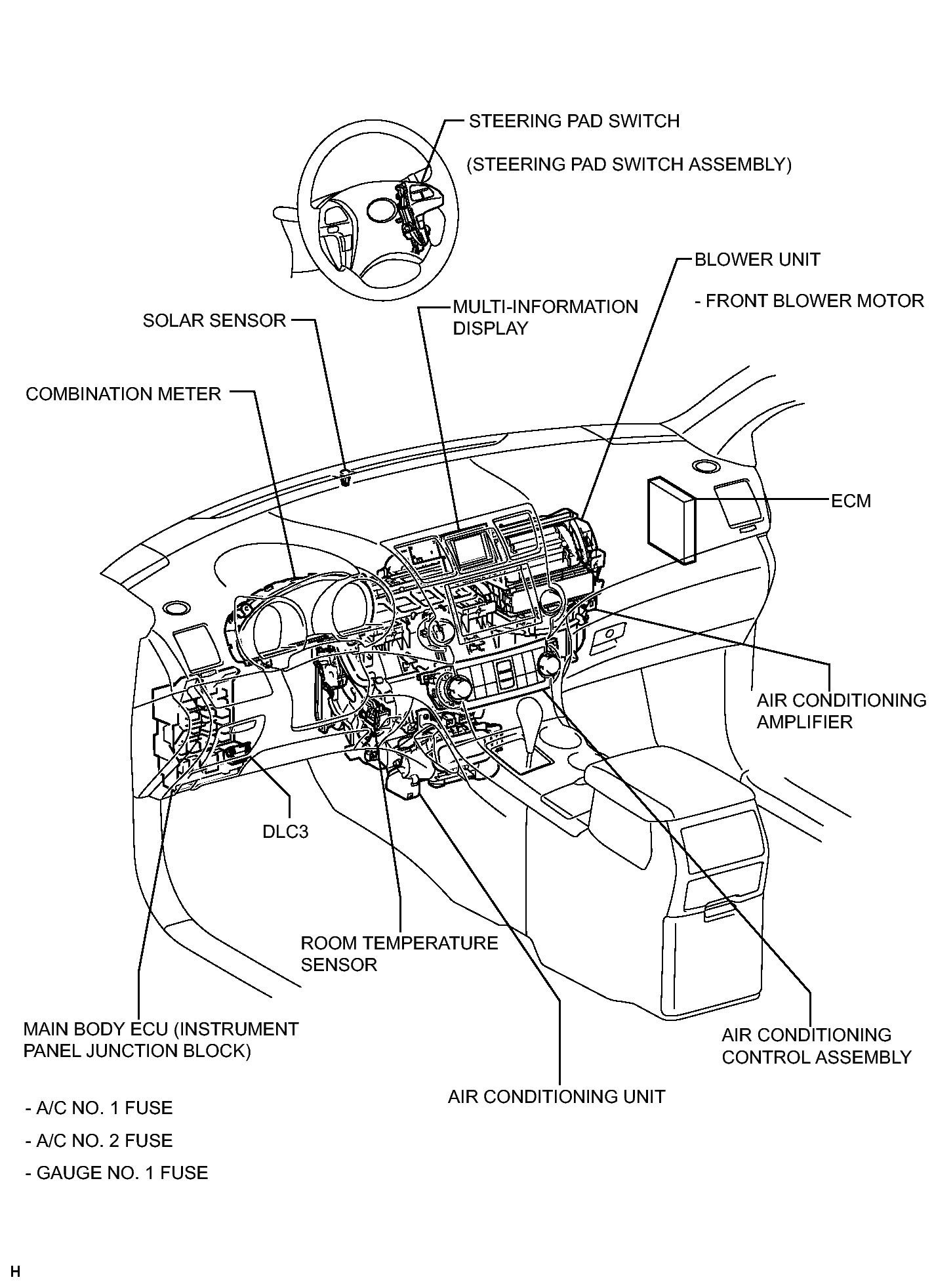

Fig 1: Identifying Air Conditioning System Components Locations (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

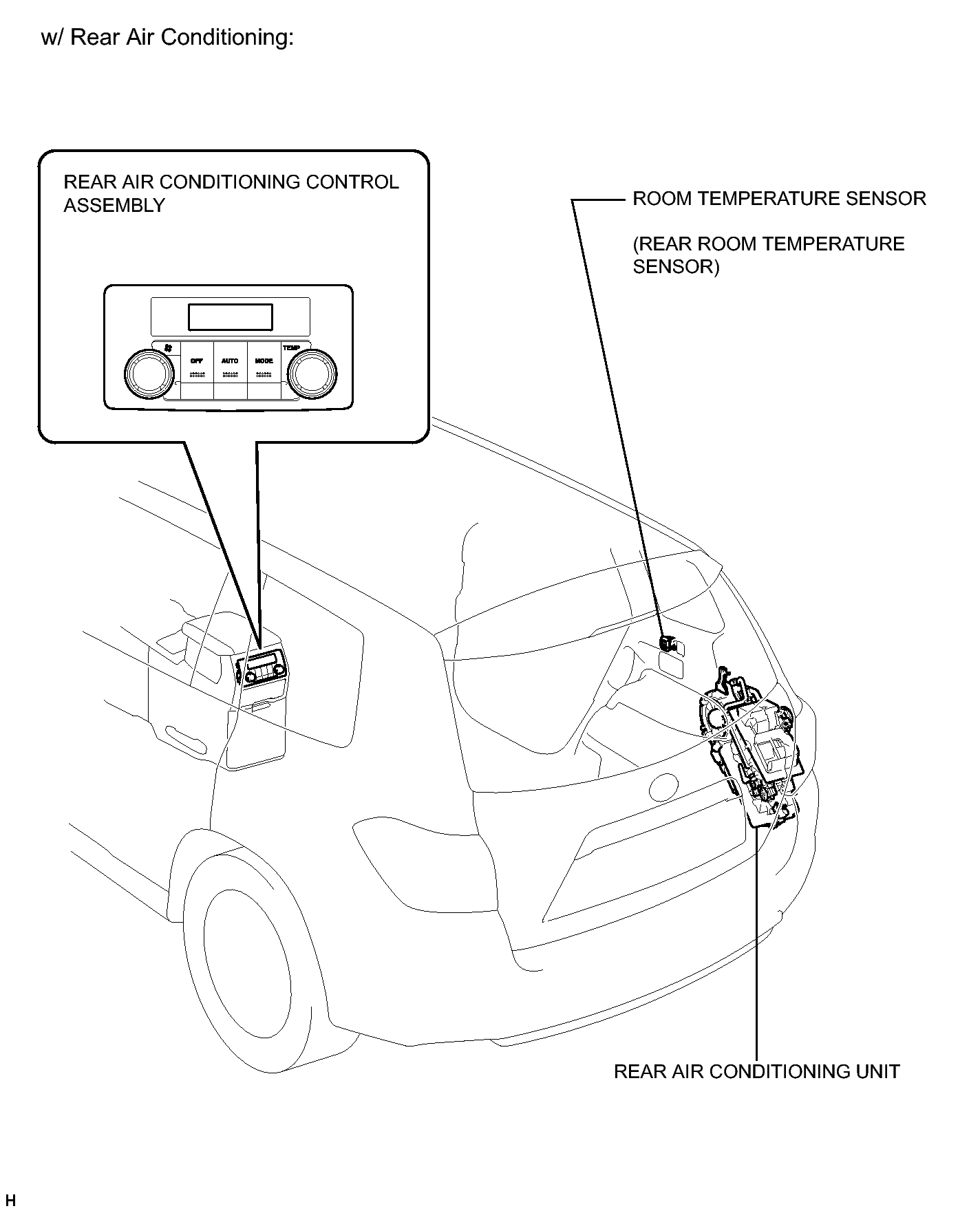

Fig 1: Identifying Air Conditioning System Components Locations (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

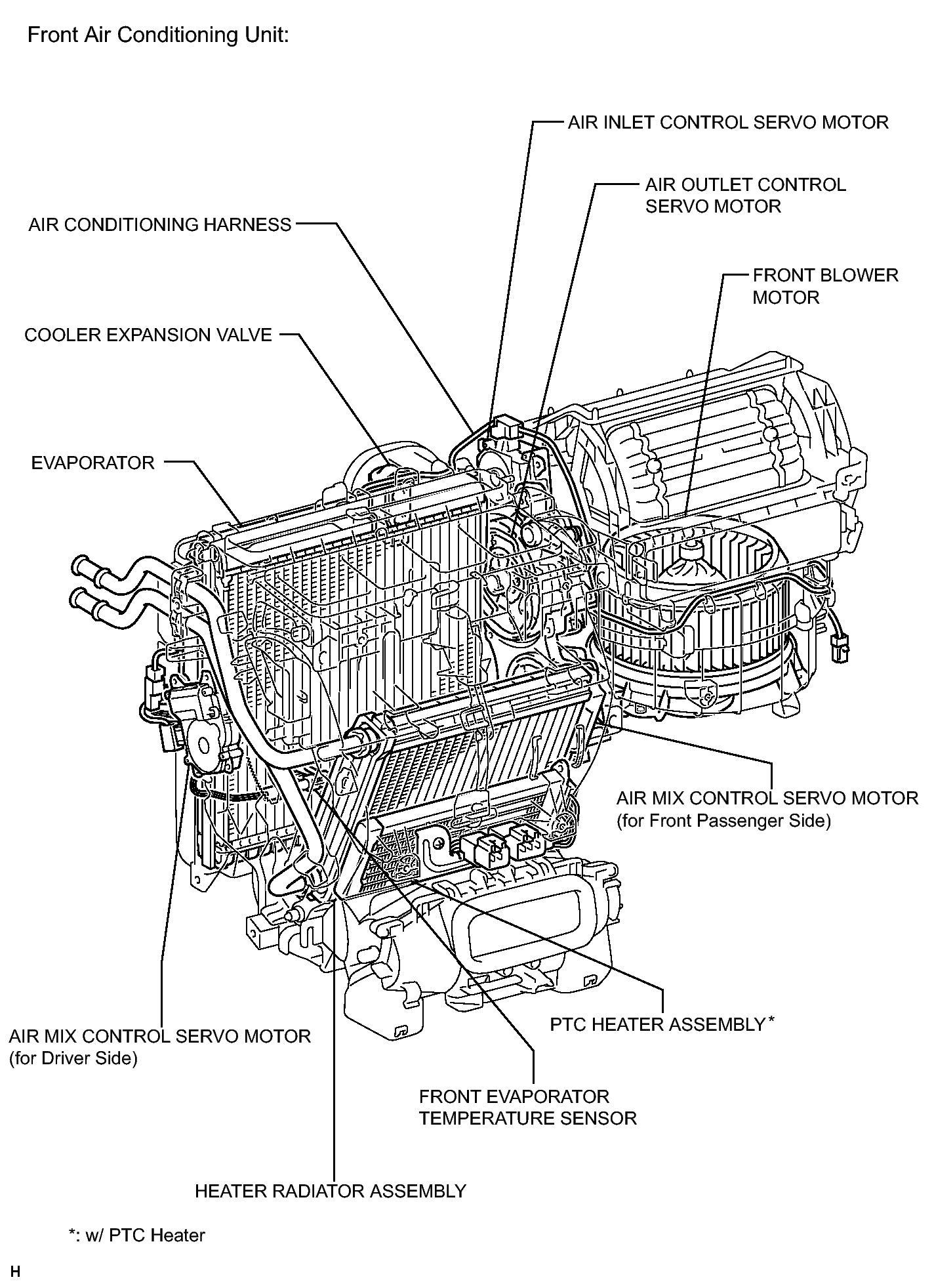

Fig 1: Identifying Air Conditioning System Components Locations (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

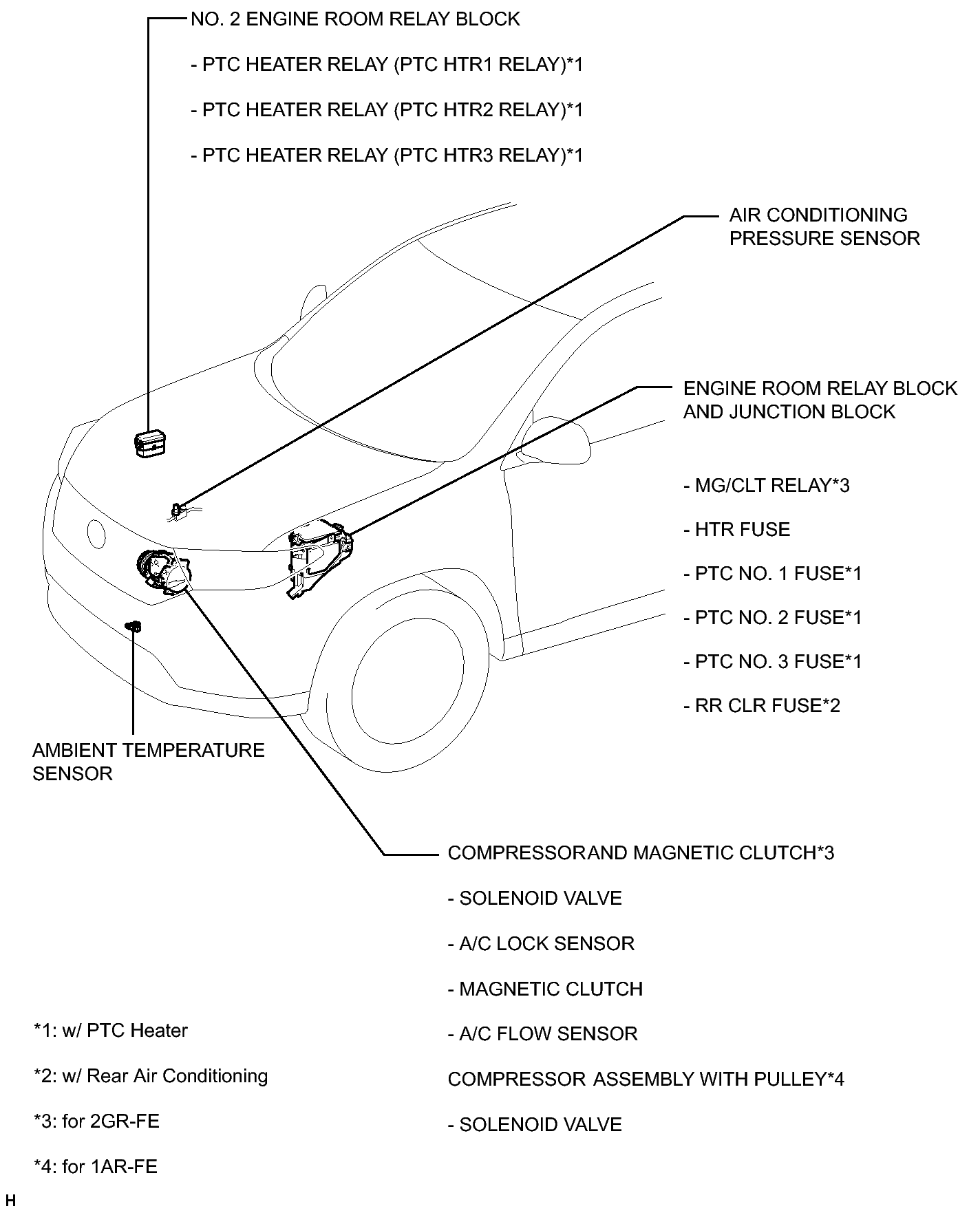

Fig 1: Identifying Air Conditioning System Components Locations (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
