Fuel Sender Gauge Assembly: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
    1. Remove the fuel suction tube assembly with pump and gauge, refer to REMOVAL .
  2. REMOVE FUEL SENDER GAUGE ASSEMBLY
    1. Disconnect the connector and remove the fuel sender gauge from the fuel suction tube.

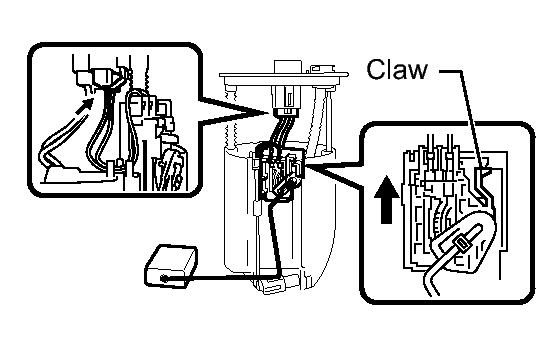

      Fig 1: Removing Fuel Sender Gauge From Fuel Suction Tube
      GTY195336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
