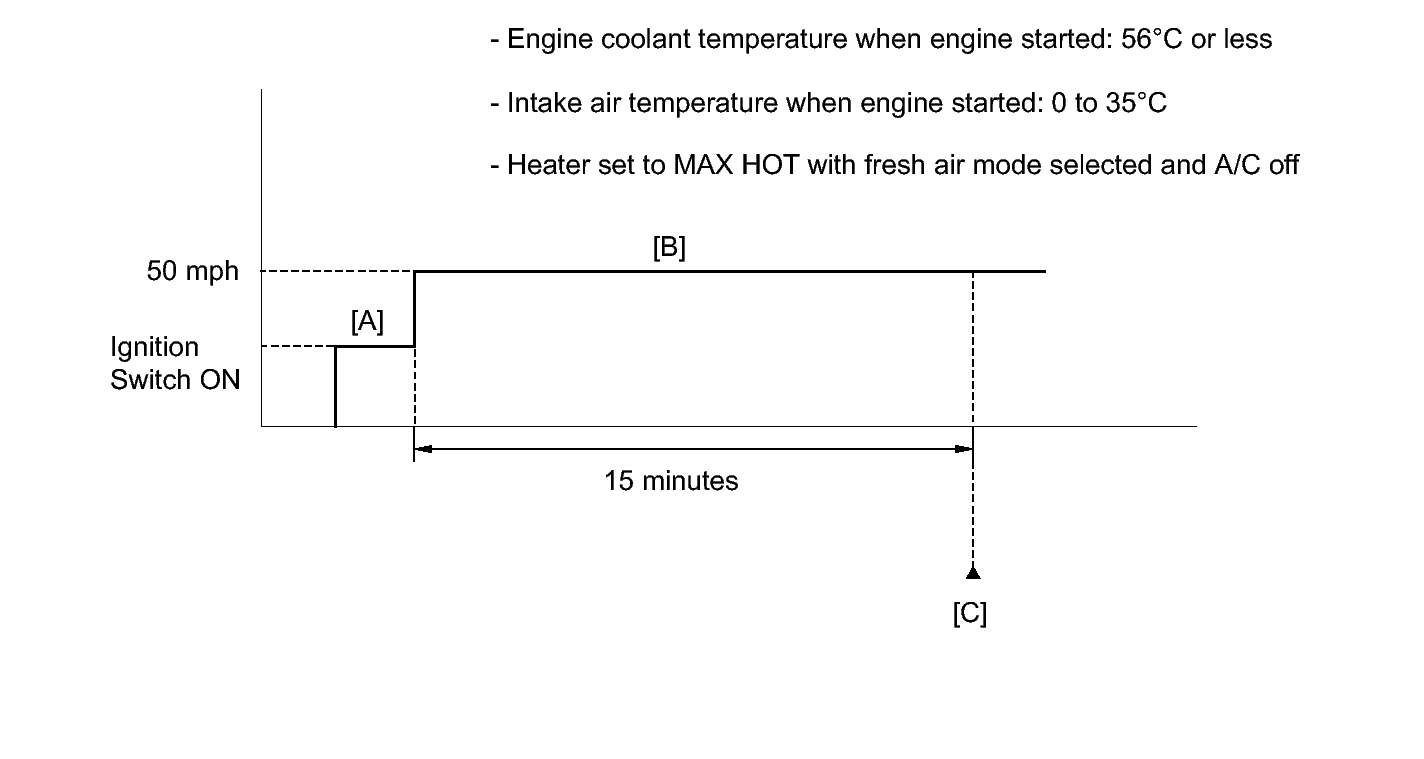

Confirmation Driving Pattern
WARNING: This page is about a different variant/trim than selected.
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON and turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Turn the ignition switch off for 30 seconds.
- Turn the ignition switch to ON and turn the Techstream on [A].
- Enter the following menus: Powertrain / Engine / Data List / All Data / Coolant Temp and Intake Air.
- Stop the engine and allow it to soak.
- Connect the Techstream to the DLC3.
- Turn the ignition switch ON and turn the Techstream on.
- Enter the following menus: Powertrain / Engine / Data List / All Data / Coolant Temp and Intake Air.
- Check if "Coolant Temp" is 56°C (133°F) or less and "Intake Air" is between 0 and 35°C (32 and 95°F). [A]
- Set the heater to MAX HOT with fresh air mode selected and turn the A/C off.
- Start the engine and drive the vehicle for 15 minutes at 50 mph (80 km/h). [B]
HINT:
- Data can be captured relatively easily by using the snapshot function in the Data List.
- Enter the following menus: Data List / Function / Snap-shot configuration / Record time / 5 min.
- Data capture can be started by using the target point. For example, setting the target point to an engine speed of 4000 RPM and then racing the engine, etc. to raise the engine speed to a speed of 4000 RPM or more will cause data capture to start.
- After driving the vehicle at 50 mph (80 km/h) and "Coolant Temp" stabilizes, check that "Coolant Temp" is 75°C (167°F) or higher. [C]
HINT:
If "Coolant Temp" is below 75°C (167°F) while driving the vehicle at 50 mph (80 km/h), inspect the cooling system and thermostat.
