Section 44 (Engine Control System (1AR-FE) (Diagnostic Codes (P0010-P0365) & Circuit Tests))
>>
SFI System
>>
DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input
>>
Wiring Diagram
DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

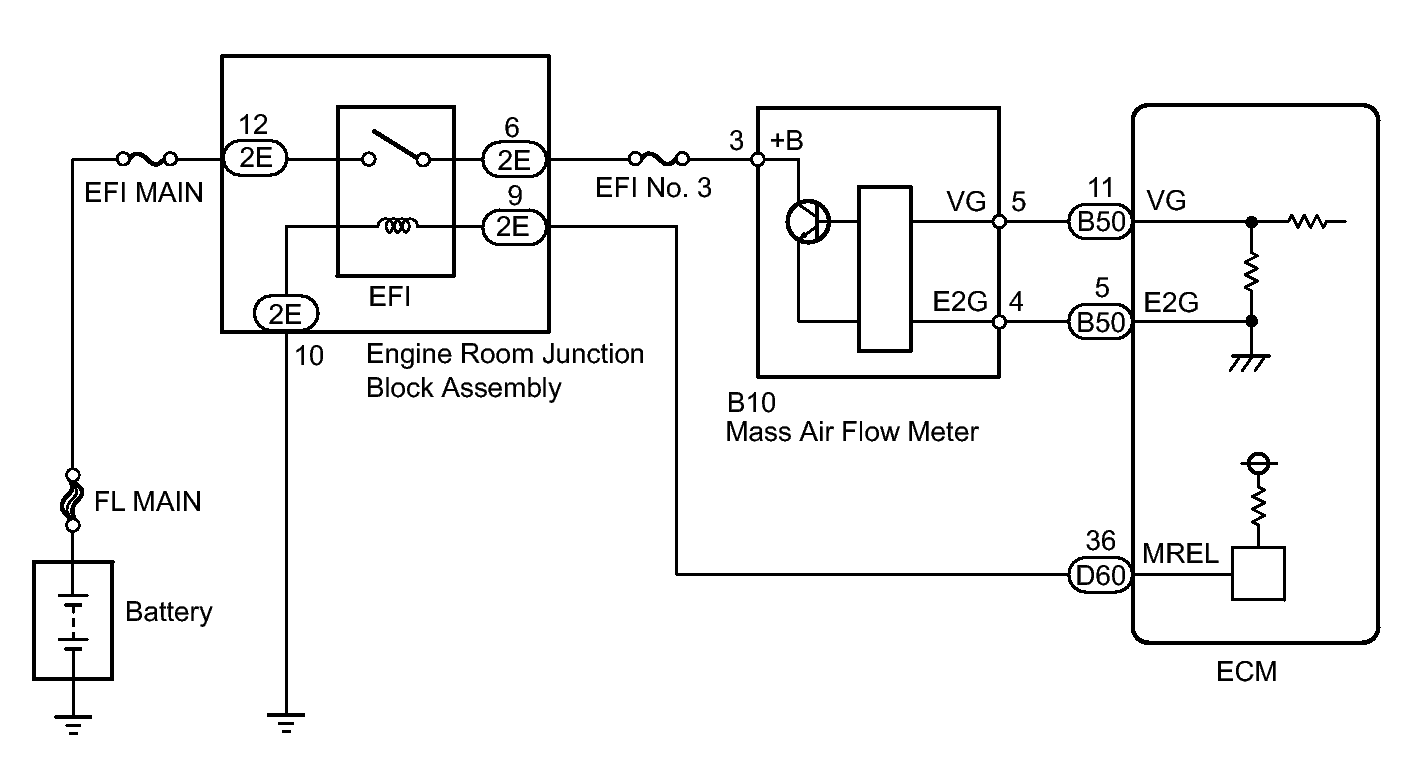

Fig 1: Identifying Mass Or Volume Air Flow Circuit Low Input Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
