DTC P0013: Camshaft Position "B" Actuator Circuit / Open (Bank 1): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

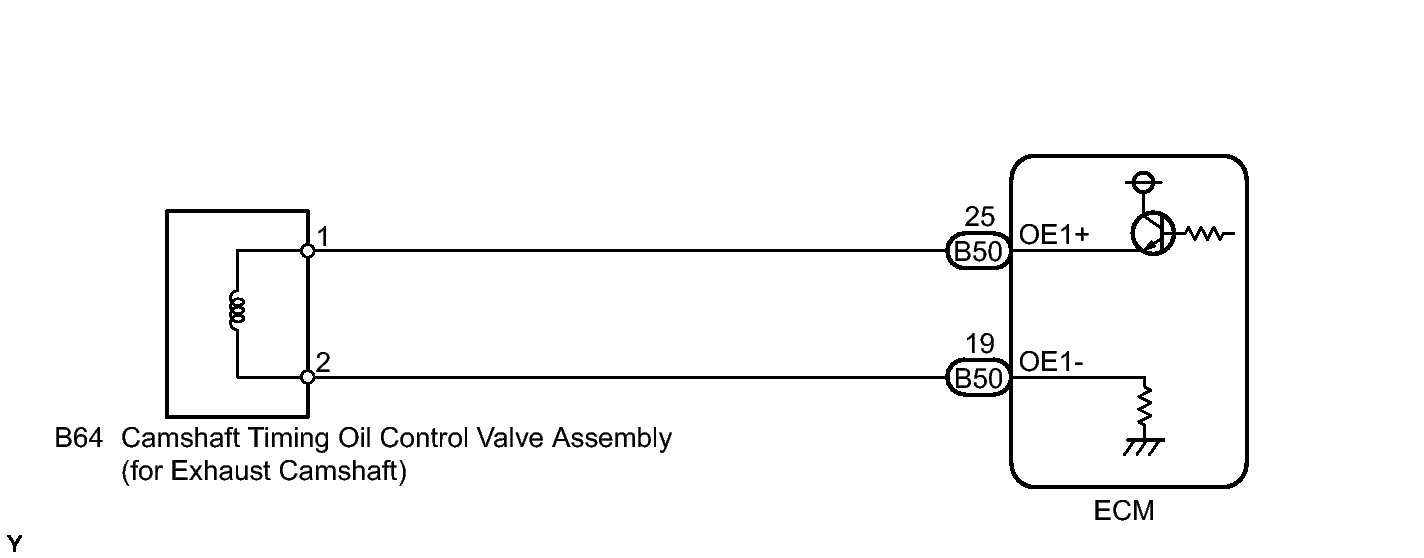

Fig 1: Camshaft Position "B" Actuator Circuit/Open (Bank 1) - Wiring Diagram
GTY192921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
