Section 44 (Engine Control System (1AR-FE) (Diagnostic Codes (P0010-P0365) & Circuit Tests))
>>
SFI System
>>
DTC P0010: Camshaft Position "A" Actuator Circuit (Bank 1)
>>
Wiring Diagram
DTC P0010: Camshaft Position "A" Actuator Circuit (Bank 1): Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

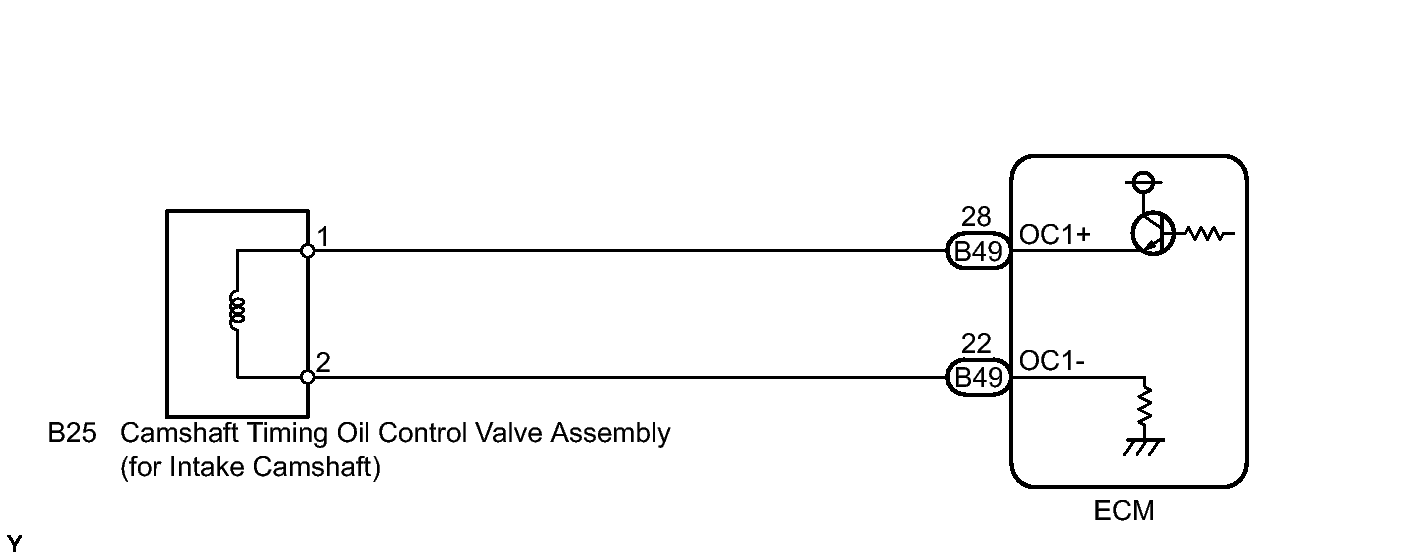

Fig 1: Camshaft Position "A" Actuator Circuit (Bank 1) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
