DTC P0010: Camshaft Position "A" Actuator Circuit (Bank 1): Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PERFORM ACTIVE TEST USING TECHSTREAM (OPERATE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY)
    1. Connect the Techstream to the DLC3.
    2. Start the engine.
    3. Turn the Techstream on.
    4. Turn the A/C switch on.
    5. Enter the following menus: Powertrain / Engine / Active Test / Control the VVT Linear (Bank 1).
    6. Check the engine speed while operating the camshaft timing oil control valve assembly (for intake camshaft) using the Techstream.

      Result

      Techstream Operation Specified Condition
      0% Normal engine speed
      100% Engine idles roughly or stalls

    NG → See step   2

    OK → See step   6

  2. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT)
    1. Remove the camshaft timing oil control valve assembly (for intake camshaft).

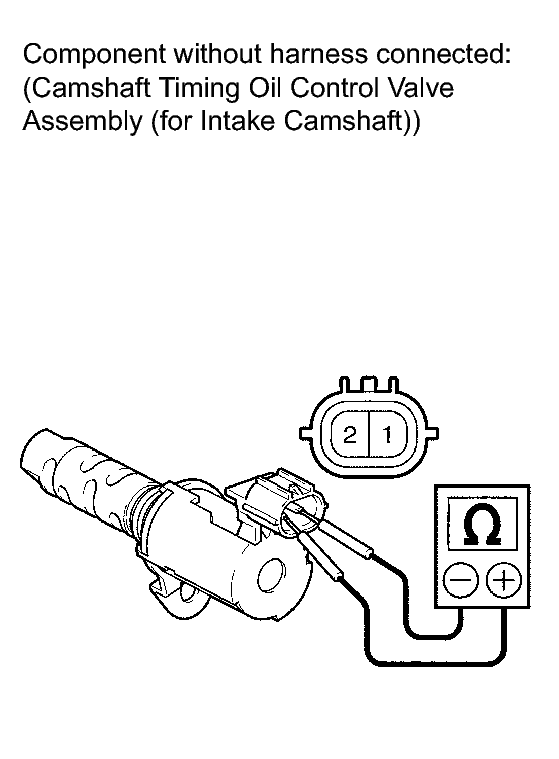

      Fig 1: Inspecting Camshaft Timing Oil Control Valve Assembly
      GTY173284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 6.9 to 7.9 Ω
    3. Connect the positive (+) battery terminal to terminal 1 and connect the negative (-) battery terminal to terminal 2. Check the valve operation.

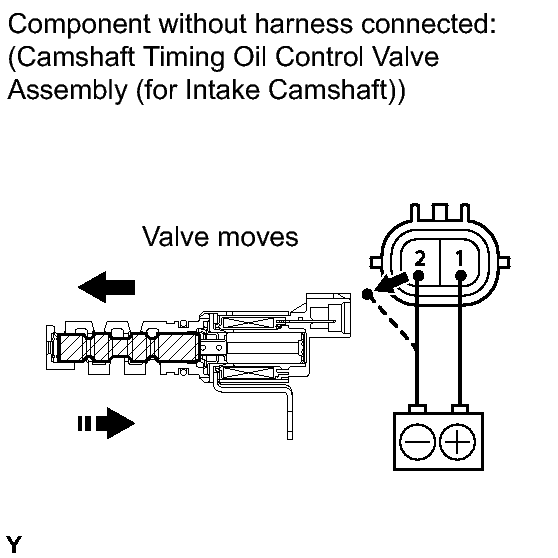

      Fig 2: Identifying Camshaft Timing Oil Control Valve Assembly
      GTY290686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      Valve moves quickly.

    4. Reinstall the camshaft timing oil control valve assembly (for intake camshaft).

    NG → See step   5

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY - ECM)
    1. Disconnect the camshaft timing oil control valve assembly (for intake camshaft) connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      B25-1 - B49-28 (OC1+) Always Below 1 Ω
      B25-2 - B49-22 (OC1-) Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      B25-1 or B49-28 (OC1+) - Body ground Always 10 kΩ or higher
      B25-2 or B49-22 (OC1-) - Body ground Always 10 kΩ or higher
    4. Reconnect the camshaft timing oil control valve assembly (for intake camshaft) connector.
    5. Reconnect the ECM connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   4

  4. REPLACE ECM. Refer to  REMOVAL
  5. REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT). Refer to  REMOVAL
  6. CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS
