Mass Air Flow Meter: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL MASS AIR FLOW METER SUB-ASSEMBLY
1. Install the mass air flow meter with the 2 screws.

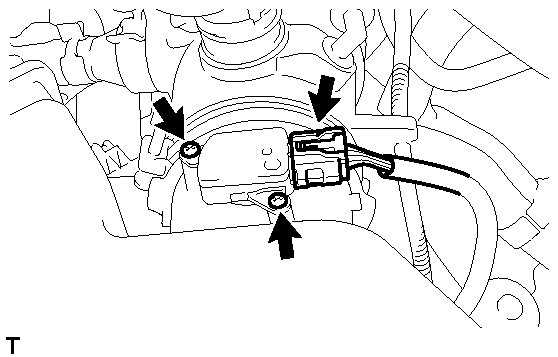

  Fig 1: Locating Screws And Mass Air Flow Meter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Make sure that the O-ring is not cracked or does not jump out of position during installation.
2. Connect the mass air flow meter connector.
