Heated Oxygen Sensor: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT FLOOR COVER LH  . Refer to REMOVAL - Step 2
  2. REMOVE HEATED OXYGEN SENSOR
    1. Disconnect the heated oxygen sensor connector.

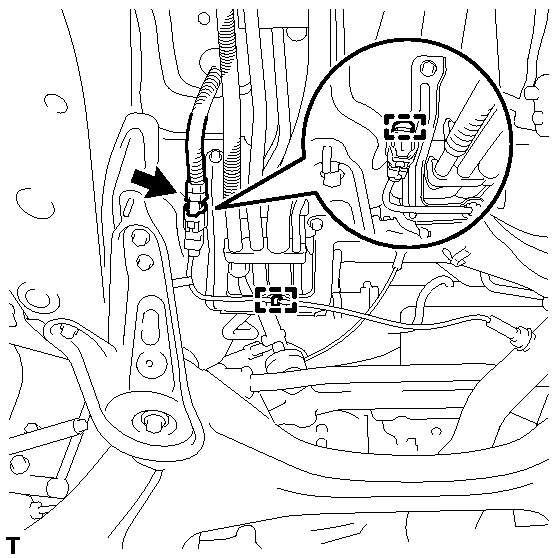

      Fig 1: Locating Heated Oxygen Sensor Connector
      GTY195243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Separate the 2 wire harness clamps.
    3. Using SST, remove the heated oxygen sensor from the front exhaust pipe.

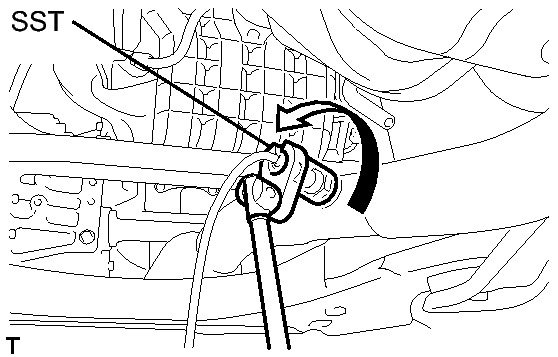

      Fig 2: Identifying SST To Remove Heated Oxygen Sensor From Front Exhaust Pipe
      GTY195281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
