Camshaft Oil Control Valve: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 25
  2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side)
    1. Disconnect the oil control valve connector.

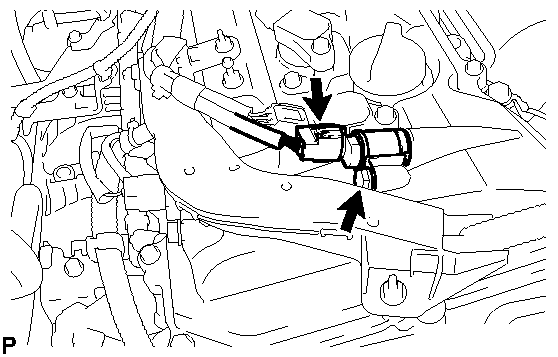

      Fig 1: Locating Bolt And Oil Control Valve
      GTY194945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
  3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side)
    1. Disconnect the oil control valve connector.

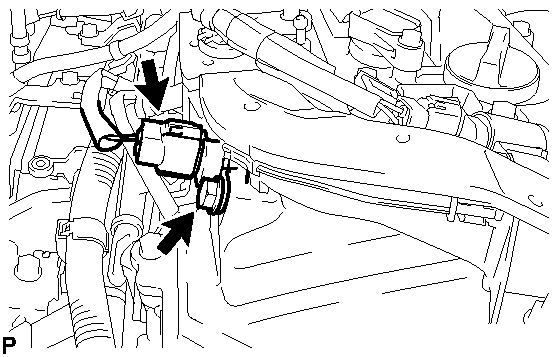

      Fig 2: Locating Bolt And Oil Control Valve
      GTY194946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
