Rear No. 2 Seat Outer Belt Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

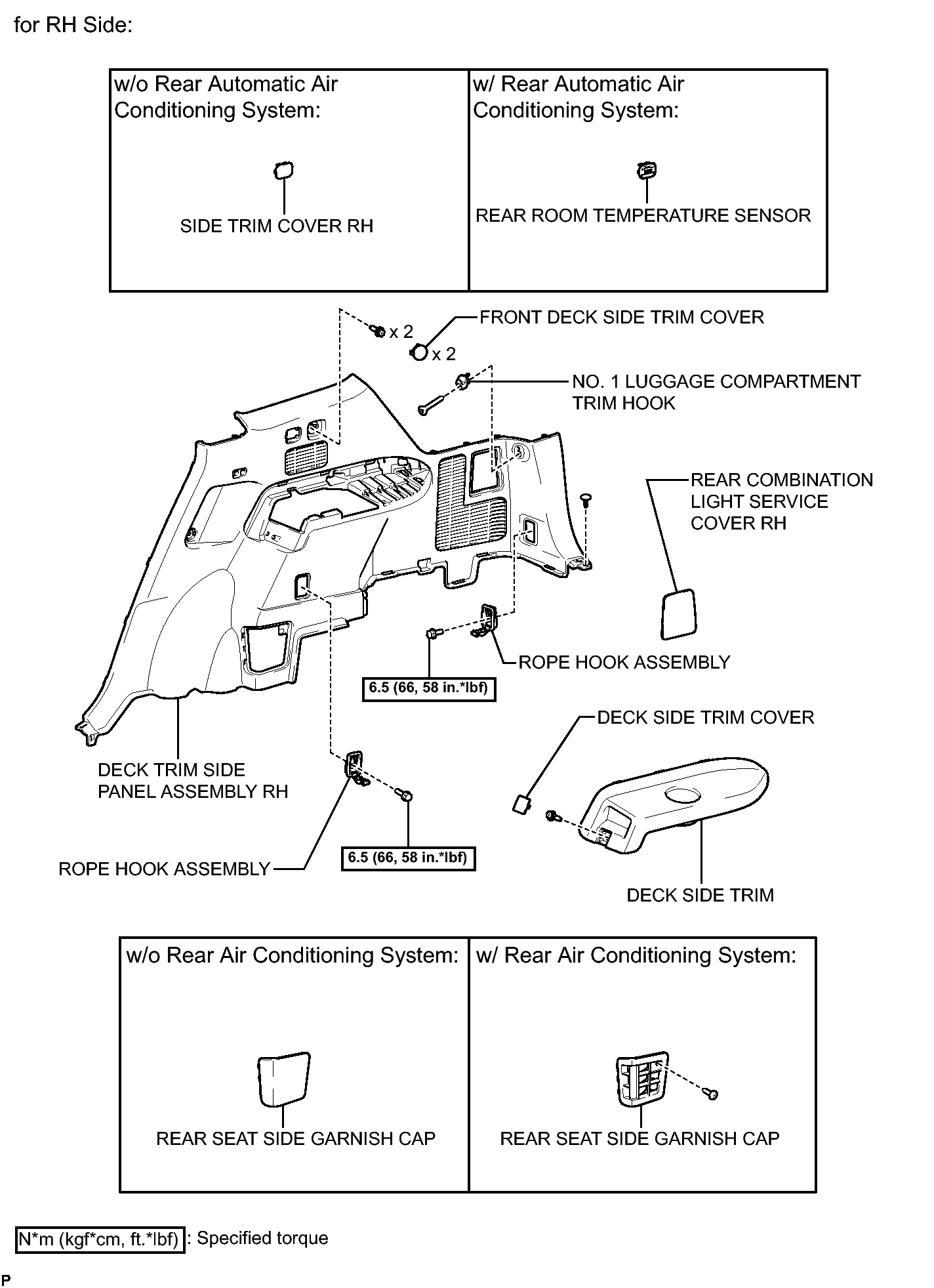

Fig 1: Identifying Rear No. 2 Seat Outer Belt Assembly Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

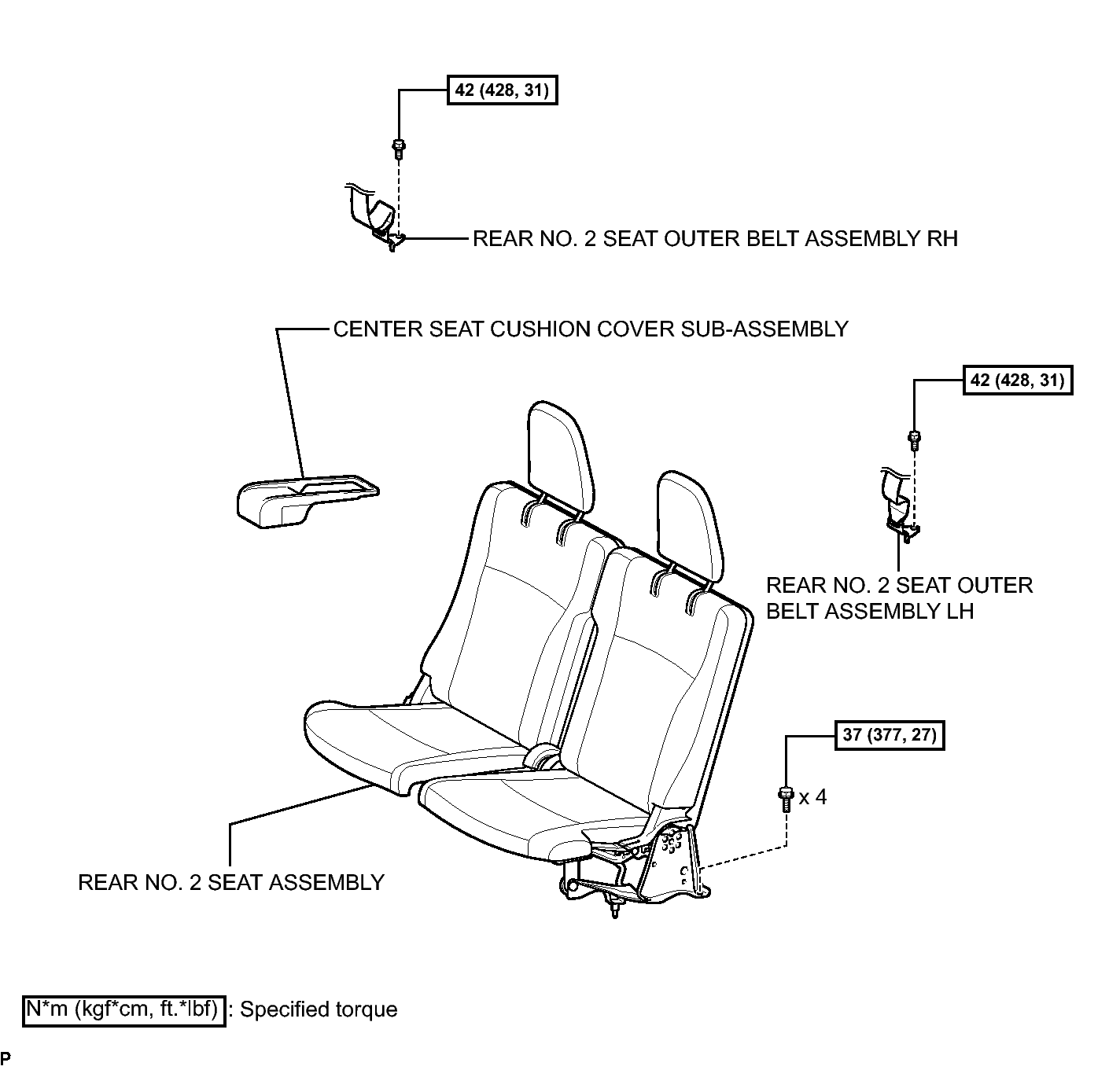

Fig 1: Identifying Rear No. 2 Seat Outer Belt Assembly Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

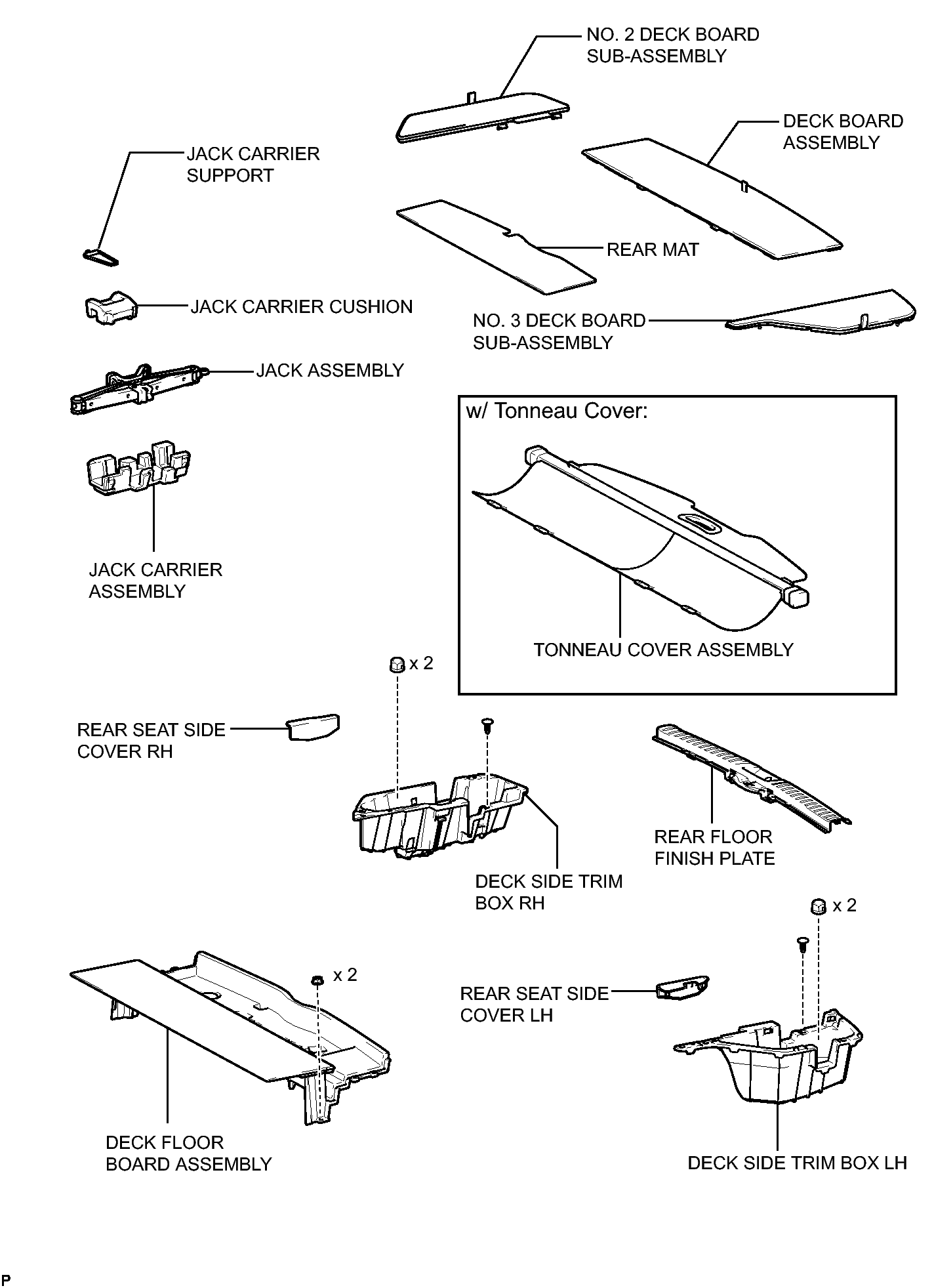

Fig 1: Identifying Rear No. 2 Seat Outer Belt Assembly Replacement Components With Torque Specifications (3 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

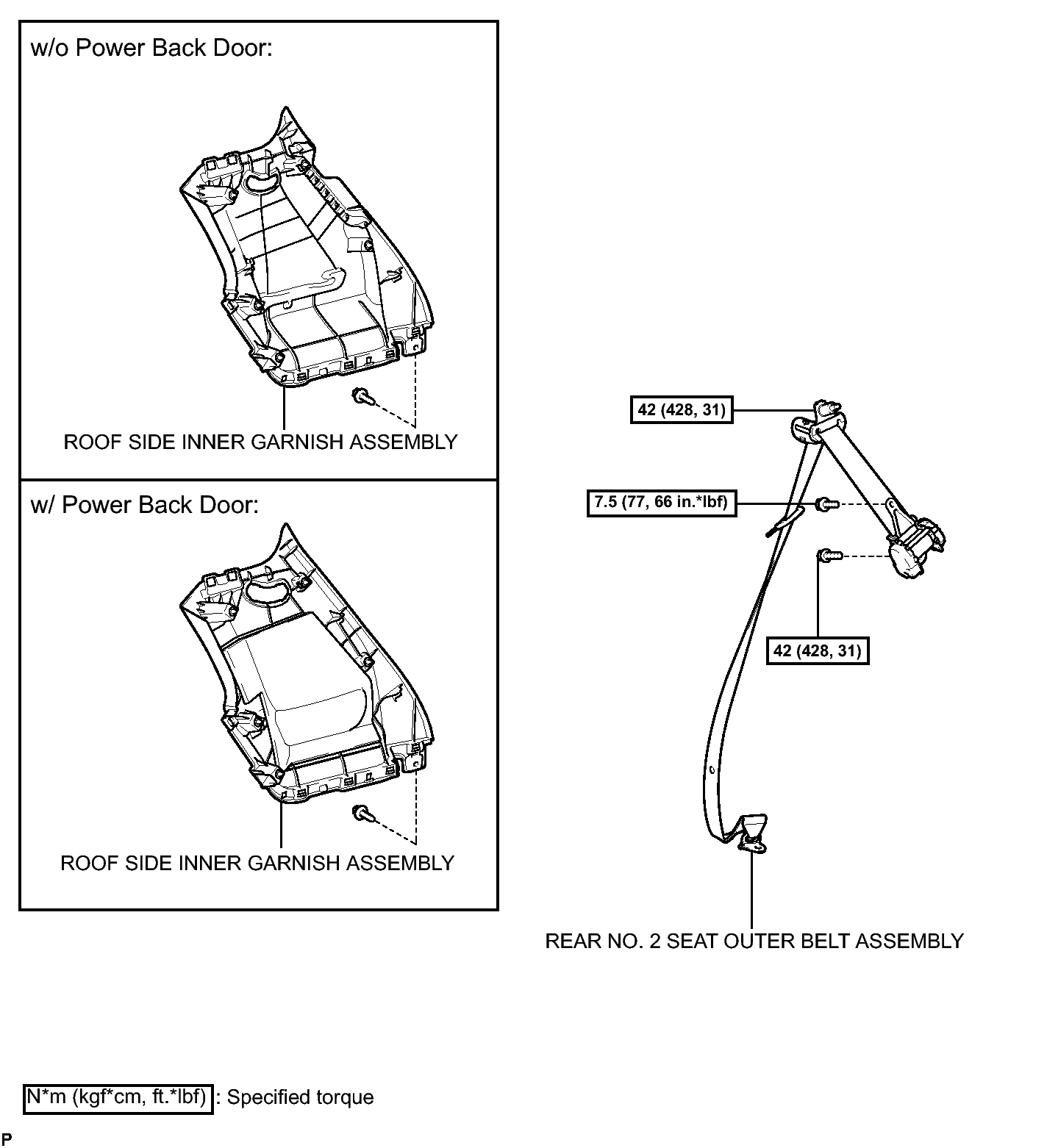

Fig 1: Identifying Rear No. 2 Seat Outer Belt Assembly Replacement Components With Torque Specifications (4 of 6)

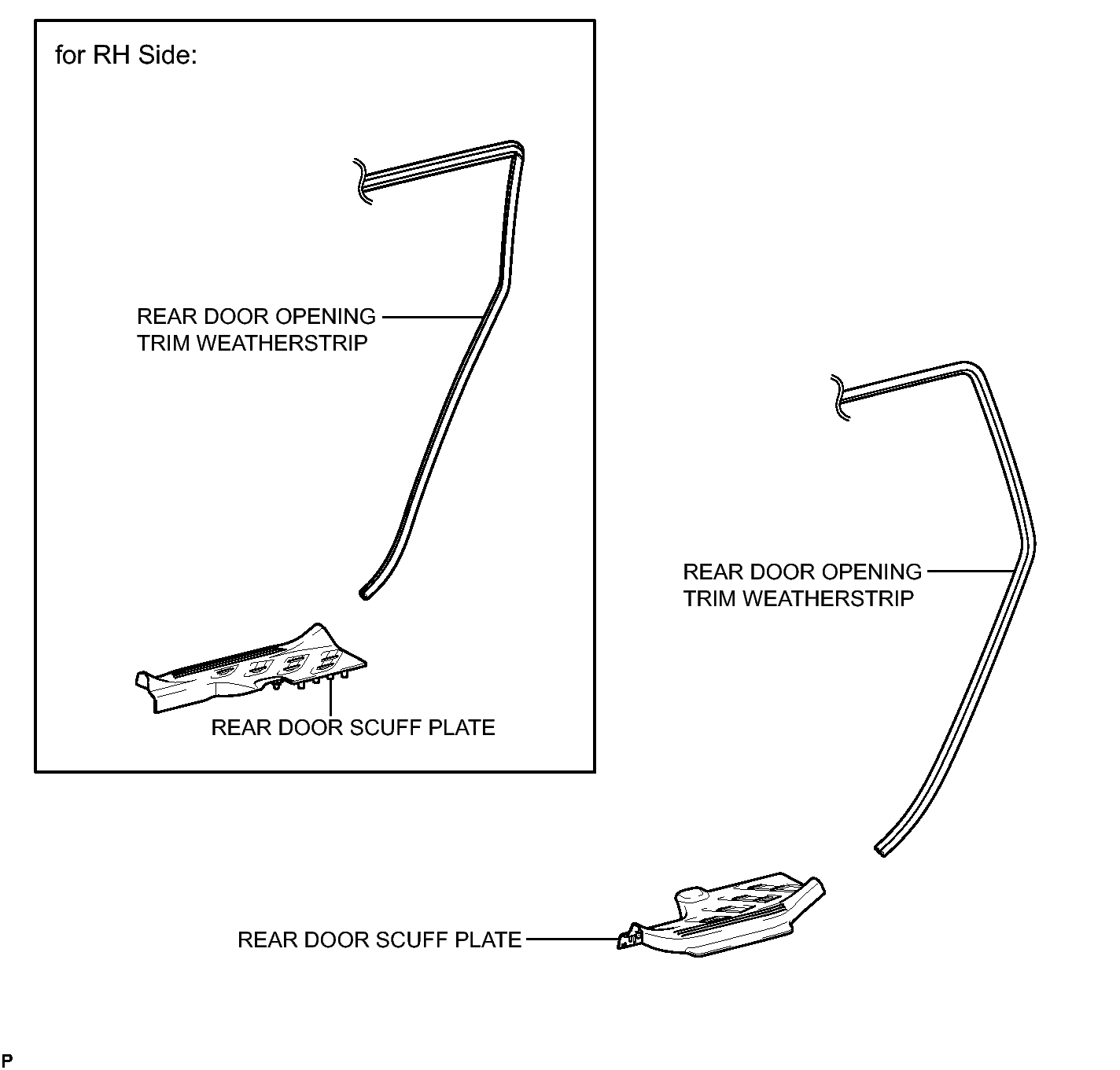

Fig 1: Identifying Rear No. 2 Seat Outer Belt Assembly Replacement Components With Torque Specifications (5 of 6)

Fig 1: Identifying Rear No. 2 Seat Outer Belt Assembly Replacement Components With Torque Specifications (6 Of 6)
