Rear No. 1 Seat Outer Belt Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

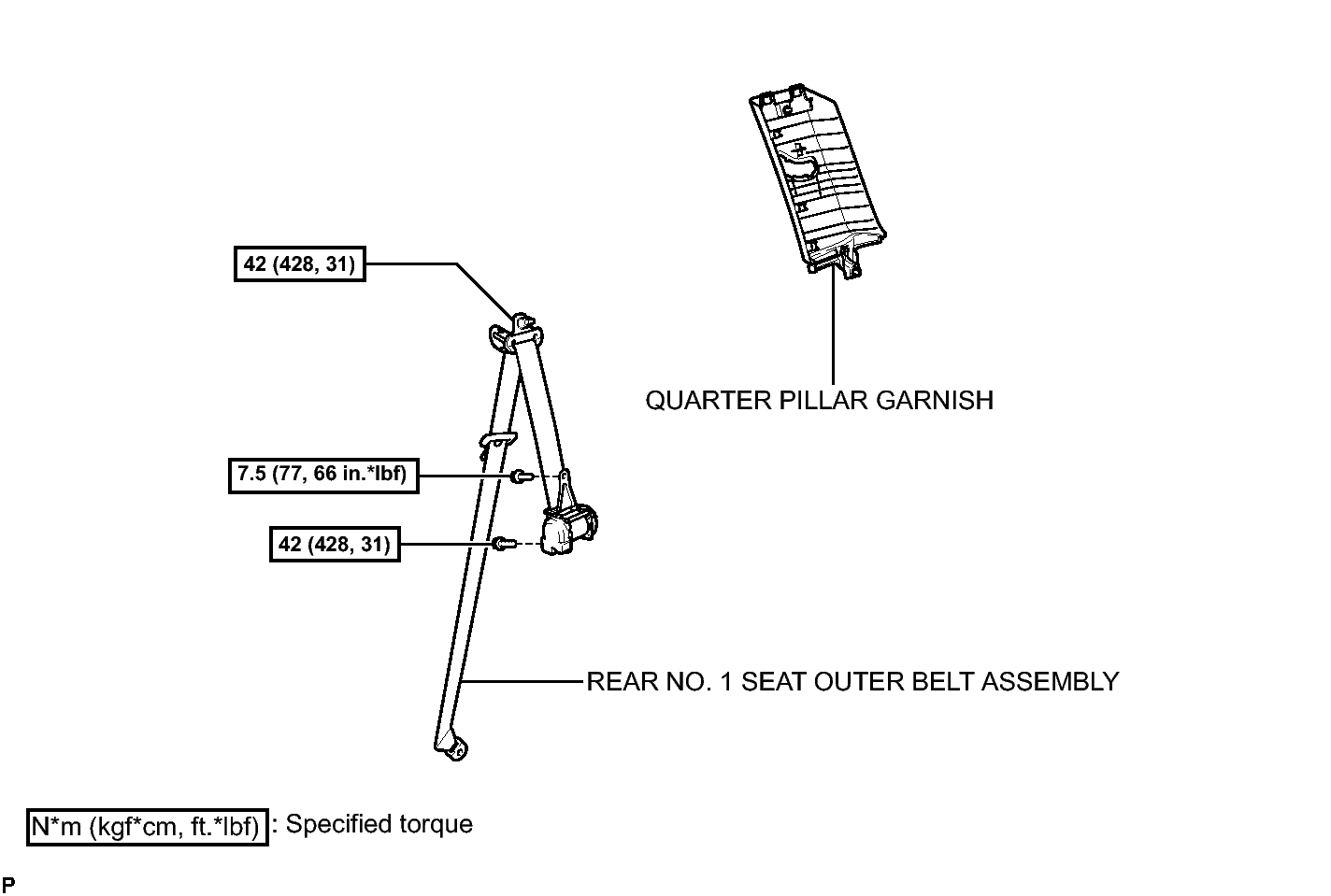

Fig 1: Identifying Rear No. 1 Seat Outer Belt Assembly Replacement Components With Torque Specification (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

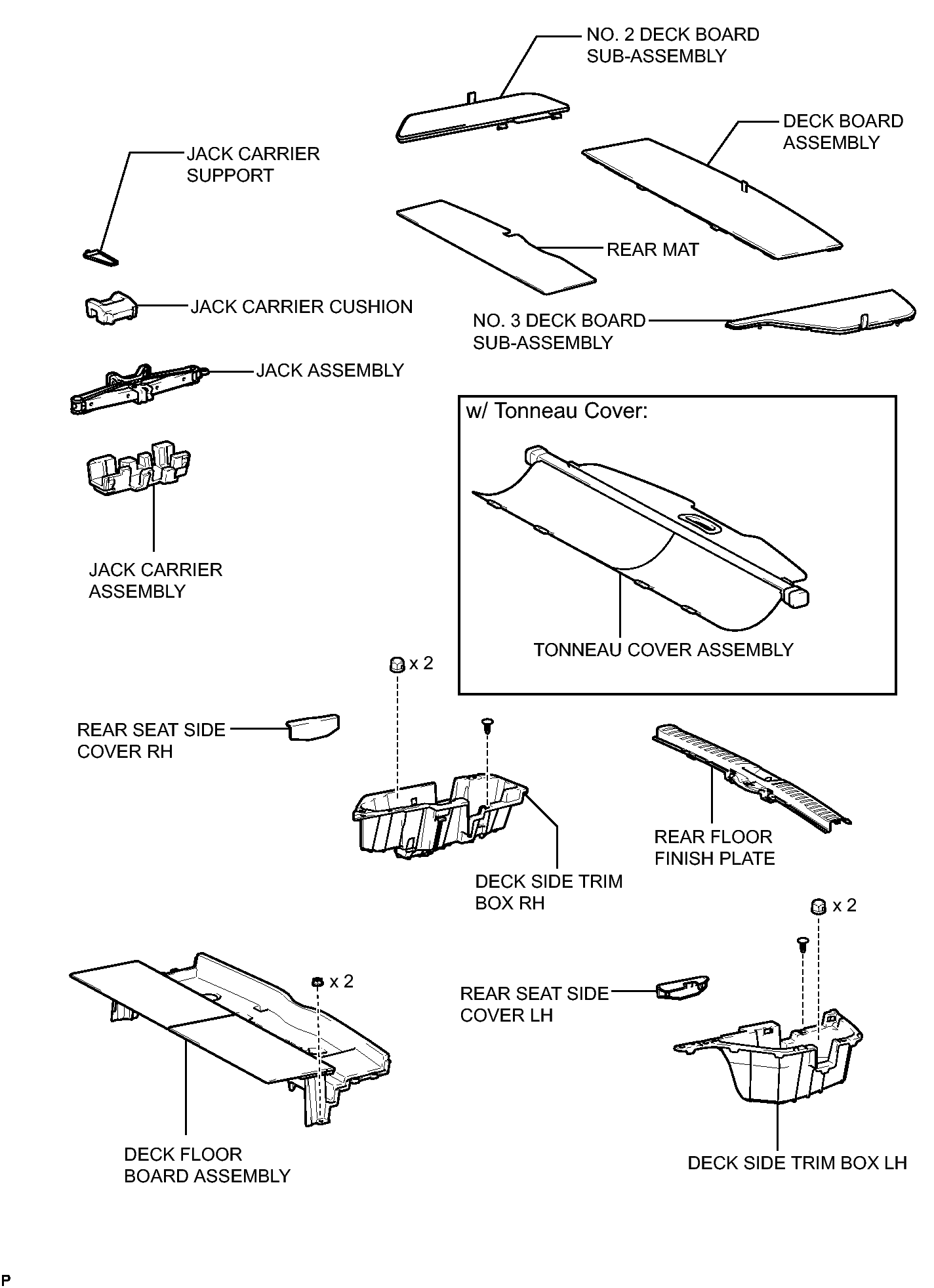

Fig 1: Identifying Rear No. 1 Seat Outer Belt Assembly Replacement Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

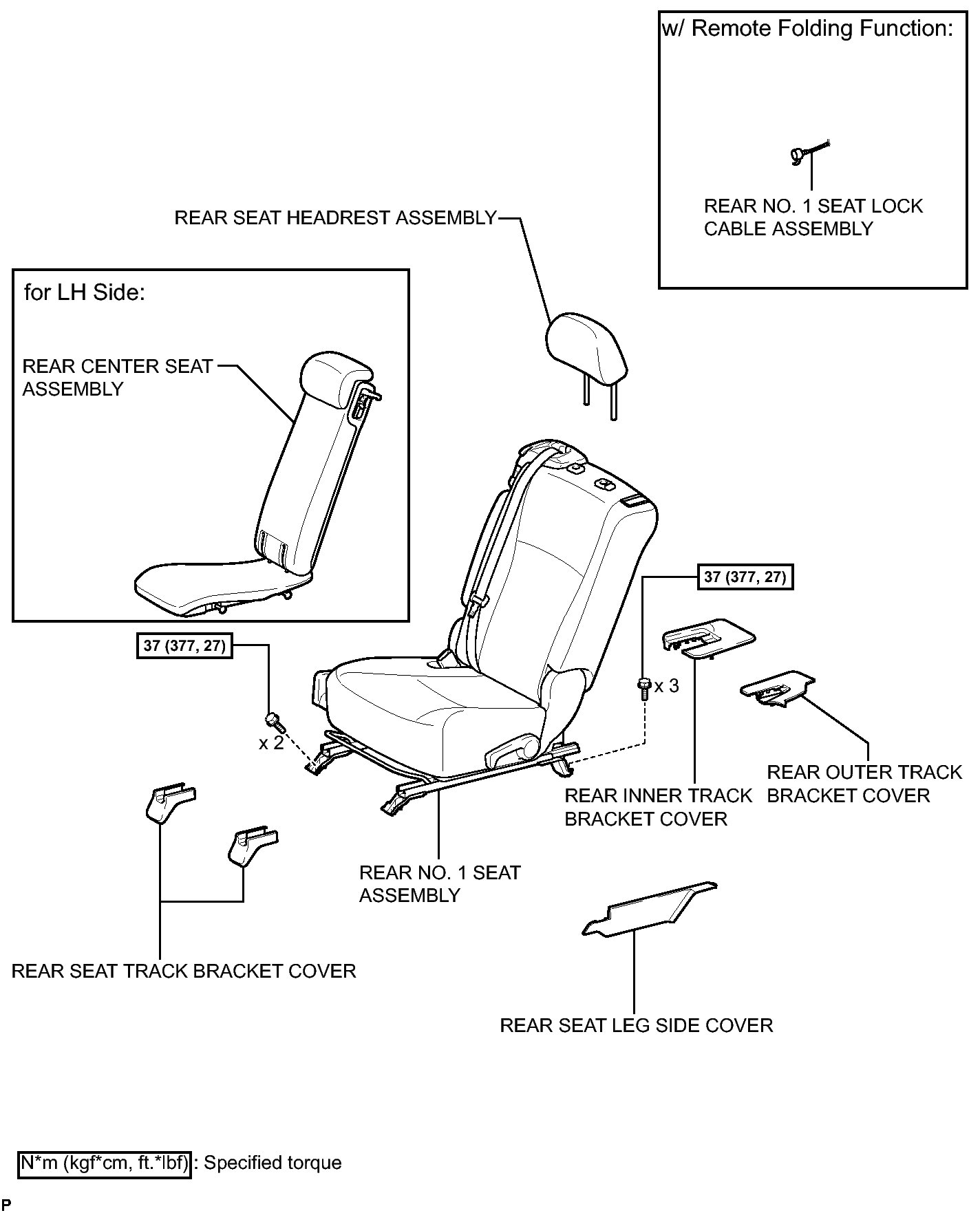

Fig 1: Identifying Rear No. 1 Seat Outer Belt Assembly Replacement Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

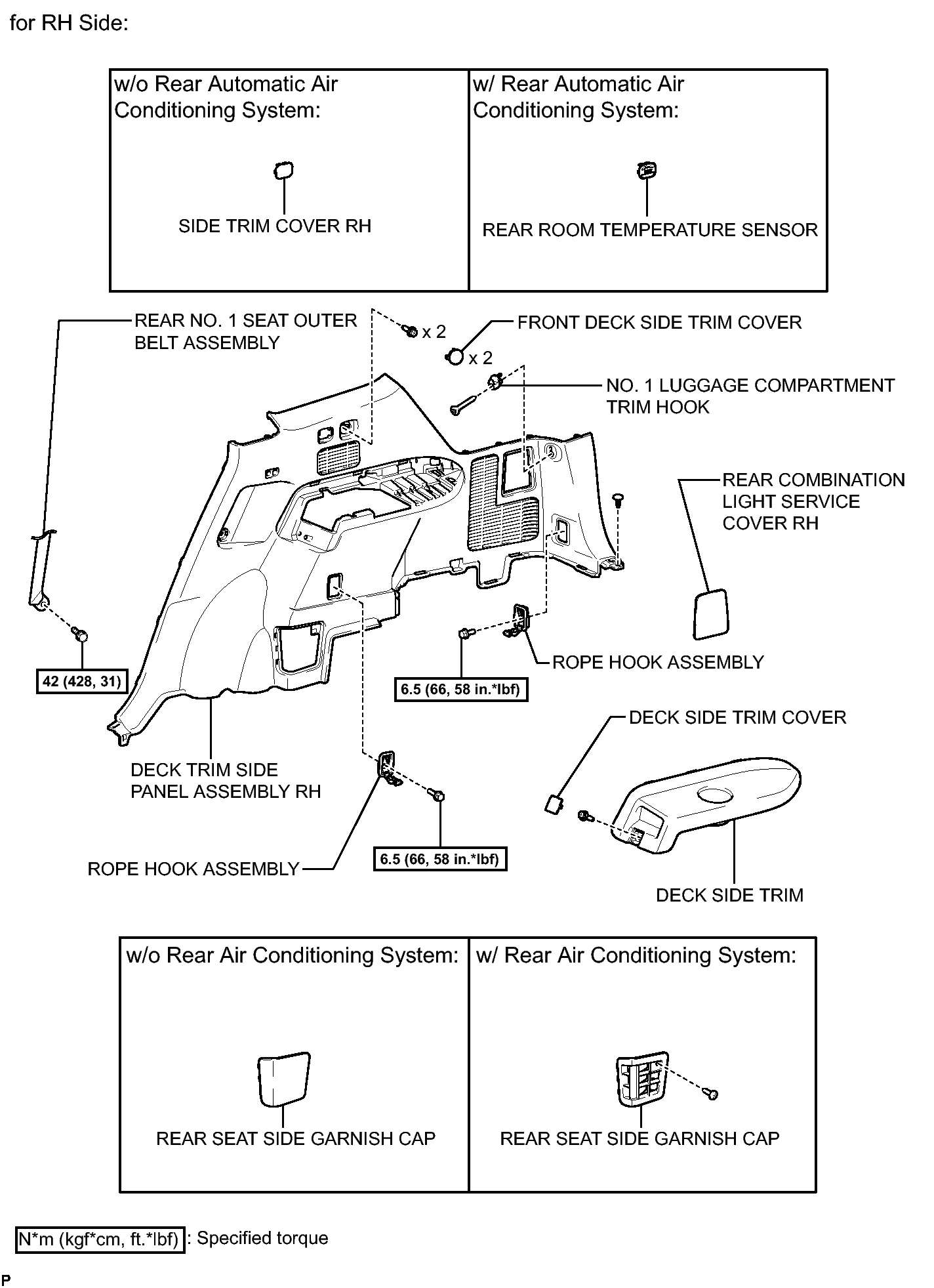

Fig 1: Identifying Rear No. 1 Seat Outer Belt Assembly Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

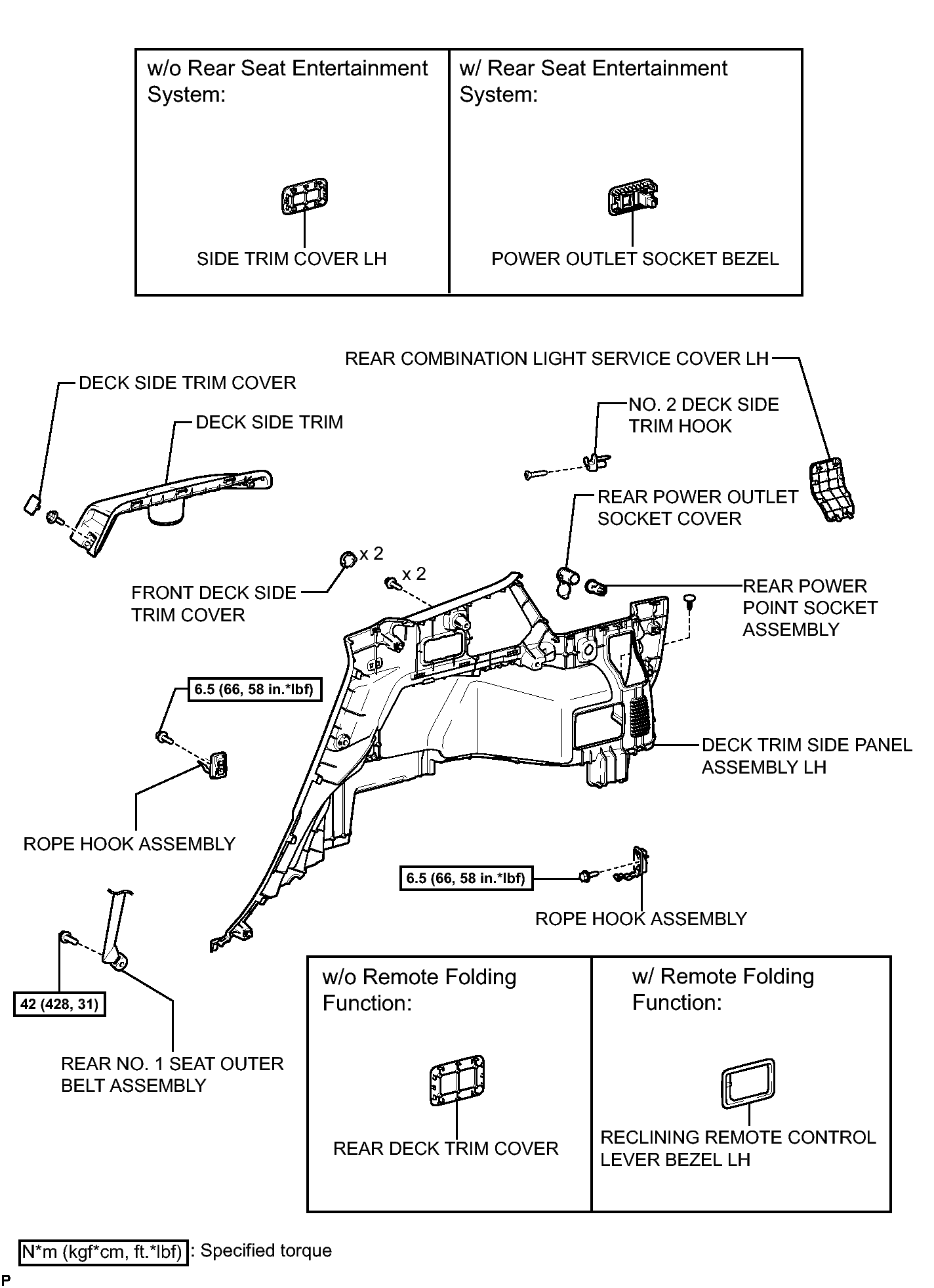

Fig 1: Identifying Rear No. 1 Seat Outer Belt Assembly Replacement Components With Torque Specifications (5 Of 7)

Fig 1: Identifying Rear No. 1 Seat Outer Belt Assembly Replacement Components With Torque Specifications (6 Of 7)

Fig 1: Identifying Rear No. 1 Seat Outer Belt Assembly Replacement Components With Torque Specifications (7 Of 7)
