Rear Center Seat Outer Belt Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

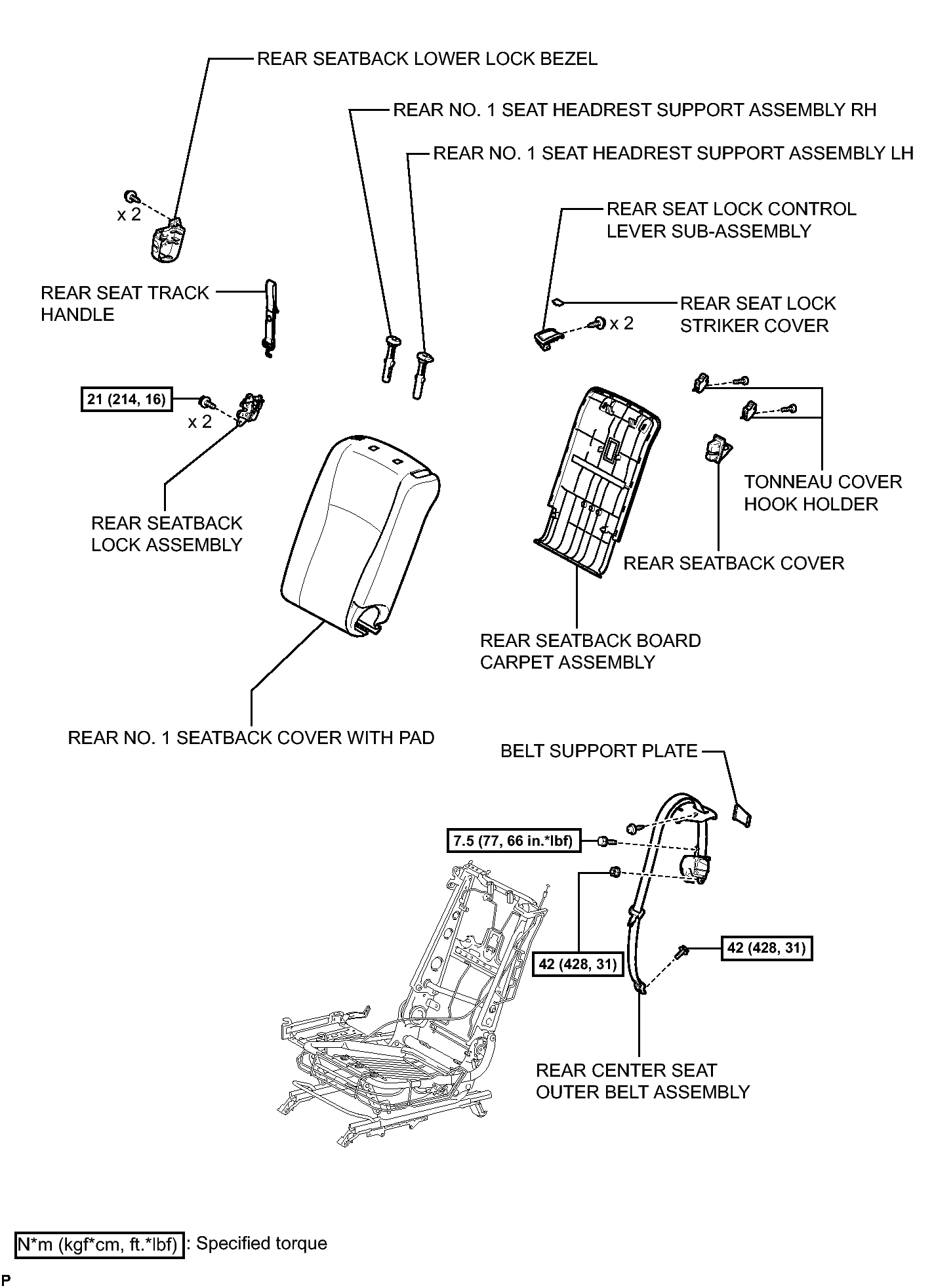

Fig 1: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specification (2 Of 3)

Fig 1: Identifying Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (3 Of 3)
