Rear Center Seat Inner Belt Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

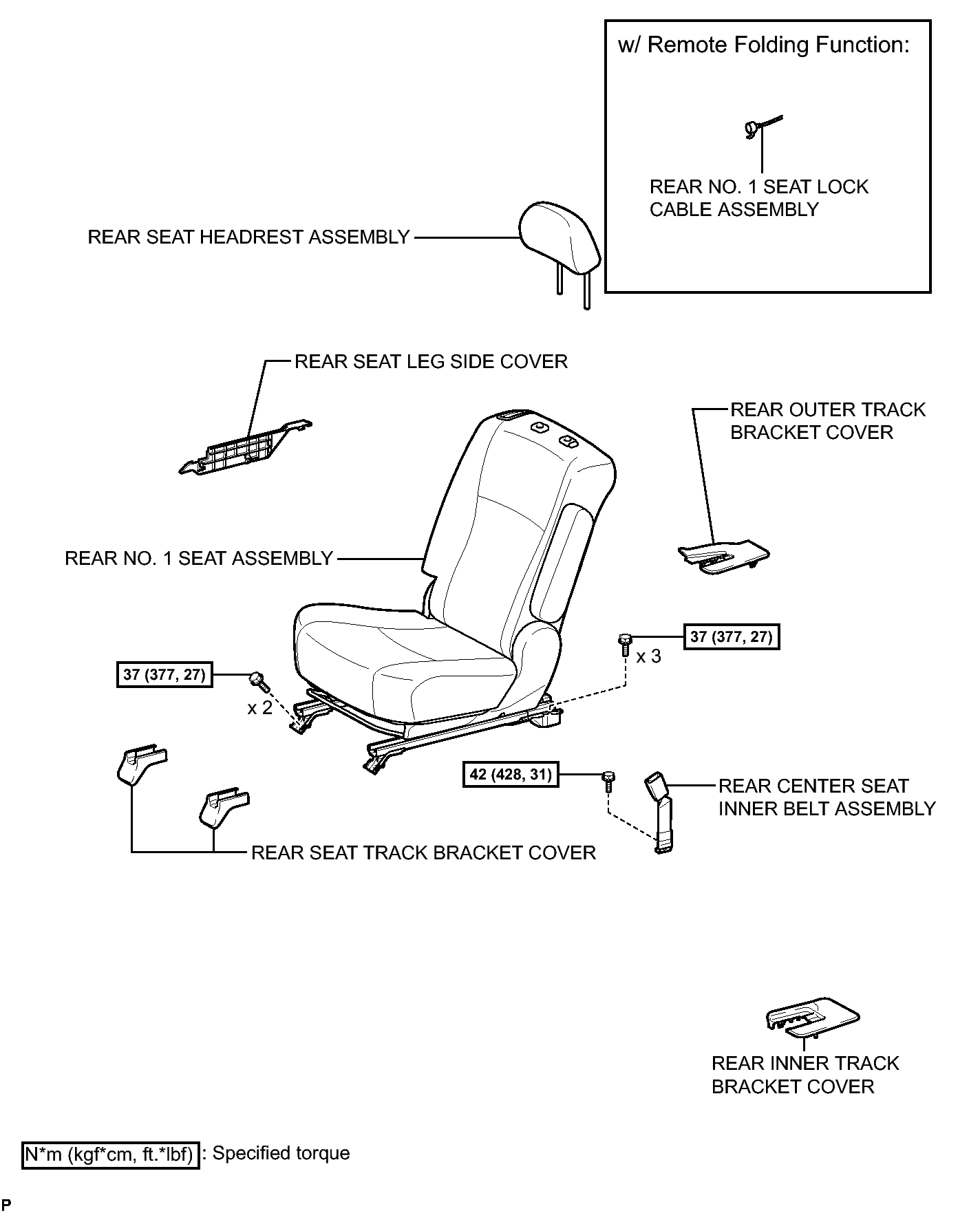

Fig 1: Rear Center Seat Inner Belt Assembly Replacement Components With Torque Specifications
GTY167361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
