REAR NO. 1 SEAT INNER BELT ASSEMBLY (for RH Side): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

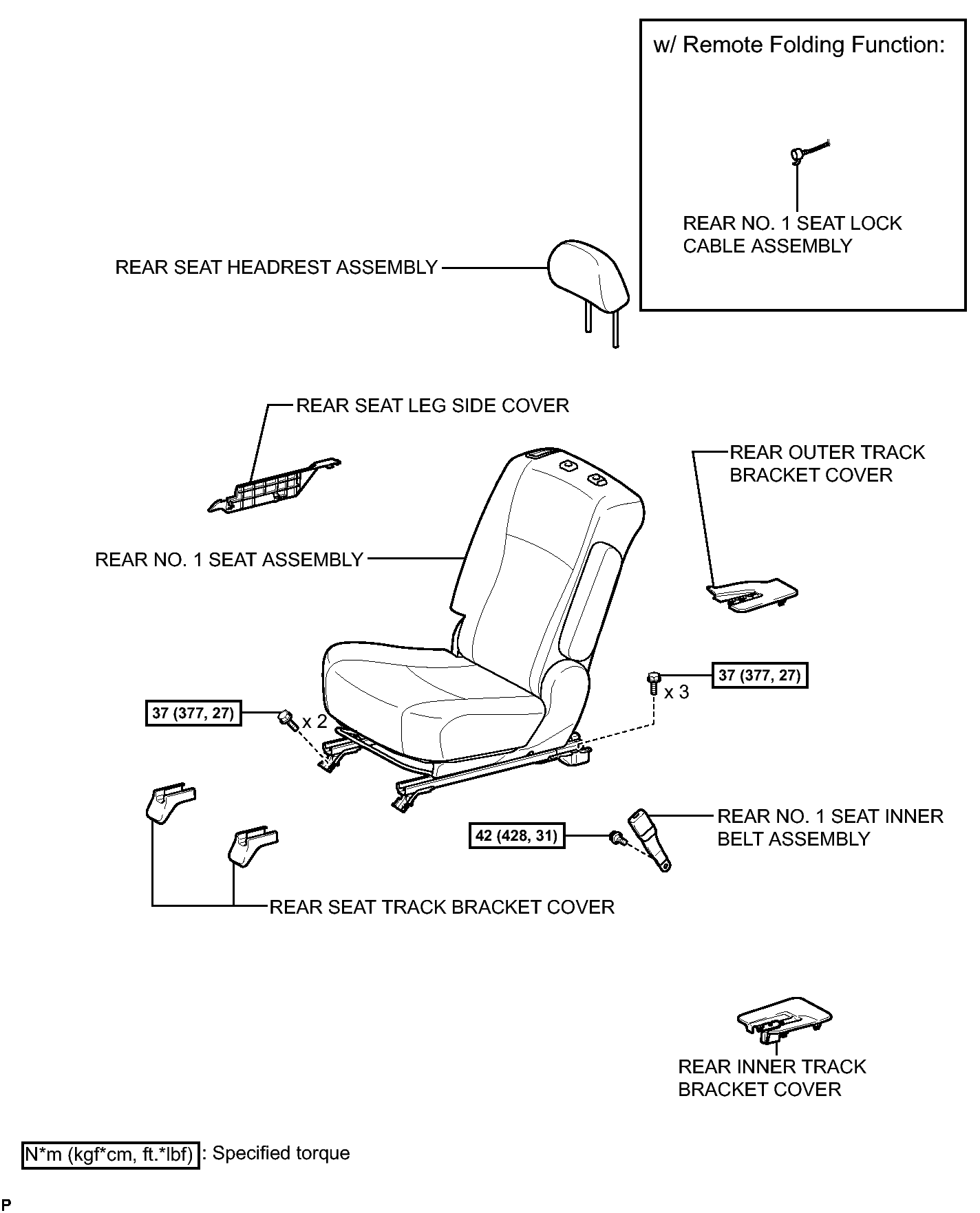

Fig 1: Rear No. 1 Seat Inner Belt Assembly (RH Side) Replacement Components With Torque Specifications
GTY198931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
