Front Seat Outer Belt Assembly With PRETENSIONER: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

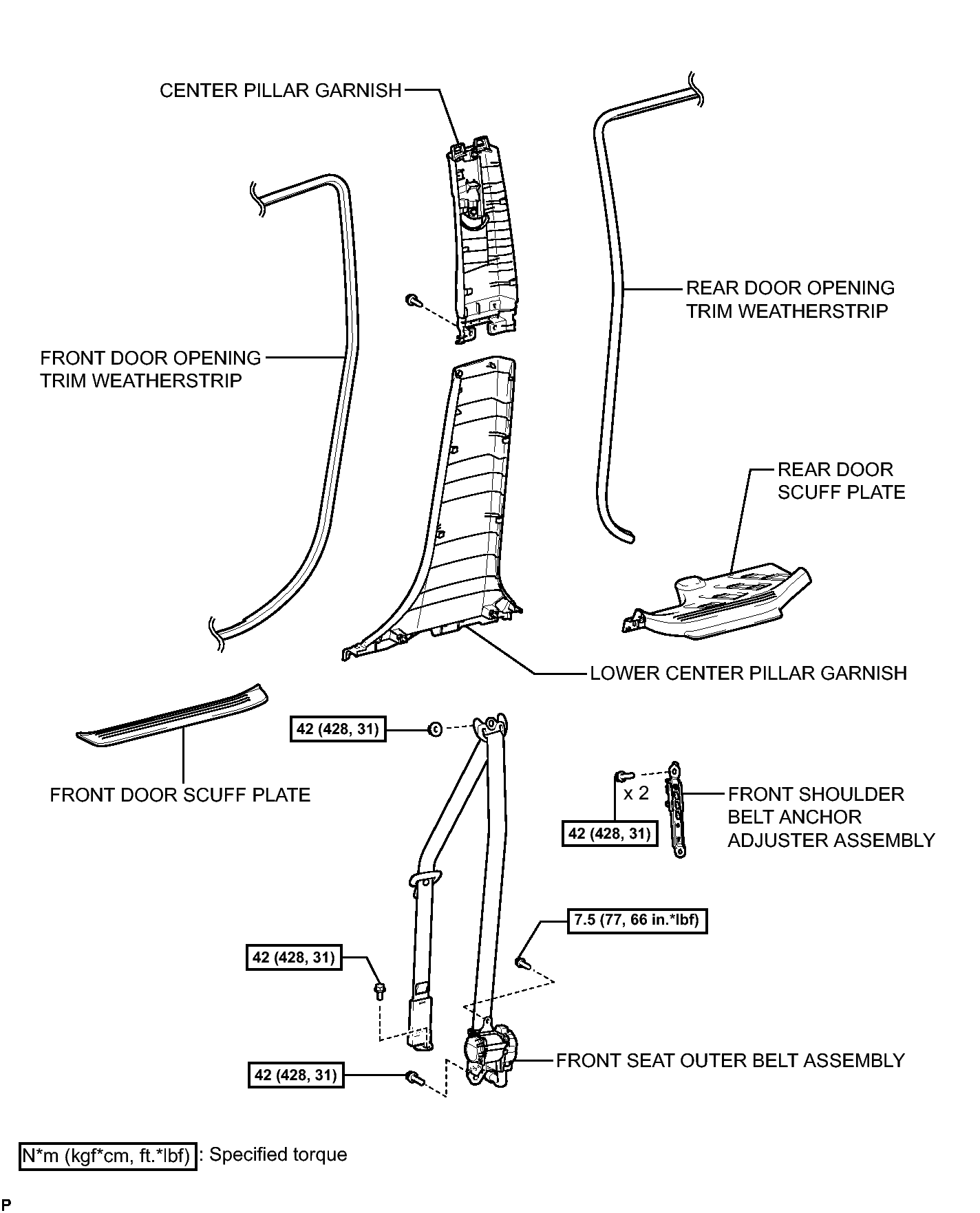

Fig 1: Front Seat Outer Belt Assembly Replacement Components With Torque Specifications
GTY198880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
