PCV Valve: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL VENTILATION VALVE SUB-ASSEMBLY
1. Install the PCV valve.

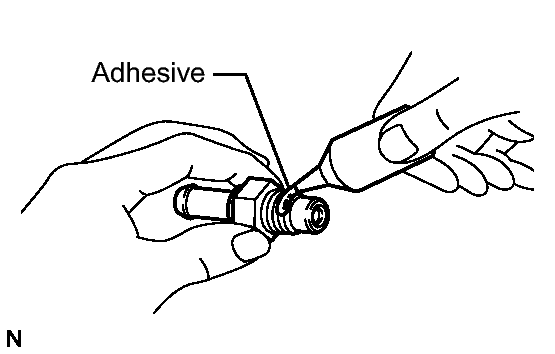

  Fig 1: Applying Adhesive To PCV Valve Threads
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Apply adhesive to 2 or 3 threads.
    Adhesive

    Toyota Genuine Adhesive 1324, Three Bond 1324 or Equivalent
  2. Install the PCV valve.

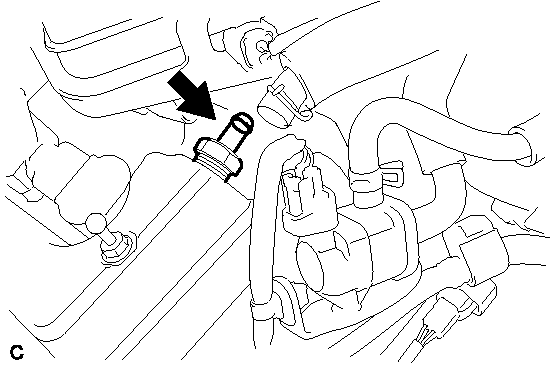

    Fig 2: Identifying PCV Valve
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)
INSTALL PCV HOSE
1. Connect the PCV hose to the PCV valve.

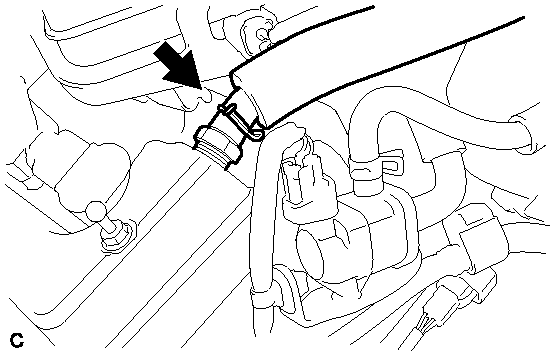

  Fig 3: Identifying PCV Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 102
