Section 36 (Cooling System (1AR-FE) (Service Information)): Thermostat: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

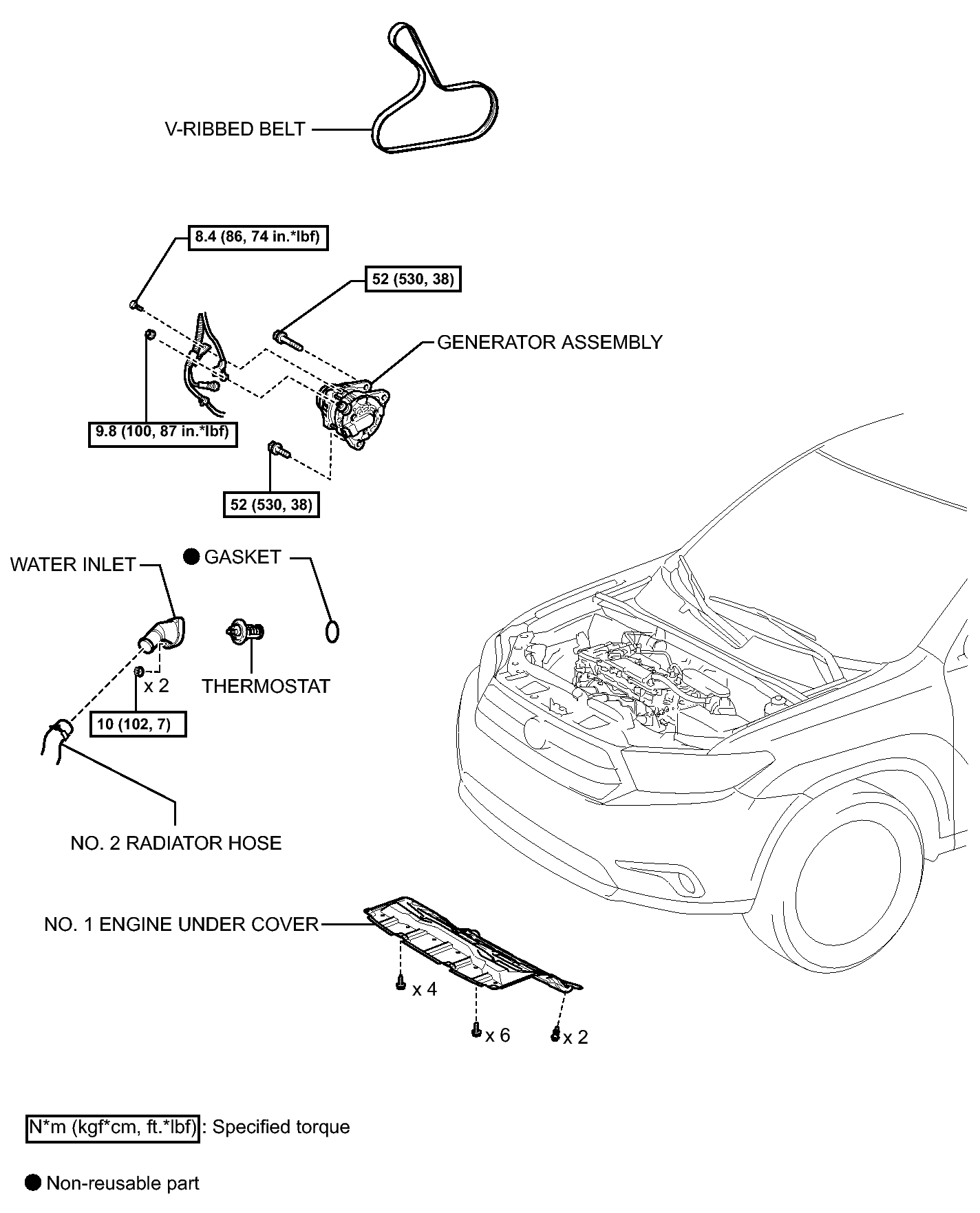

Fig 1: Identifying Thermostat Replacement Components With Torque Specifications
