Section 35 (Cooling System (2GR-FE) (Service Information))
>>
Thermostat
>>
Components
>>
Illustration
Section 35 (Cooling System (2GR-FE) (Service Information)): Thermostat: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Identifying Thermostat Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

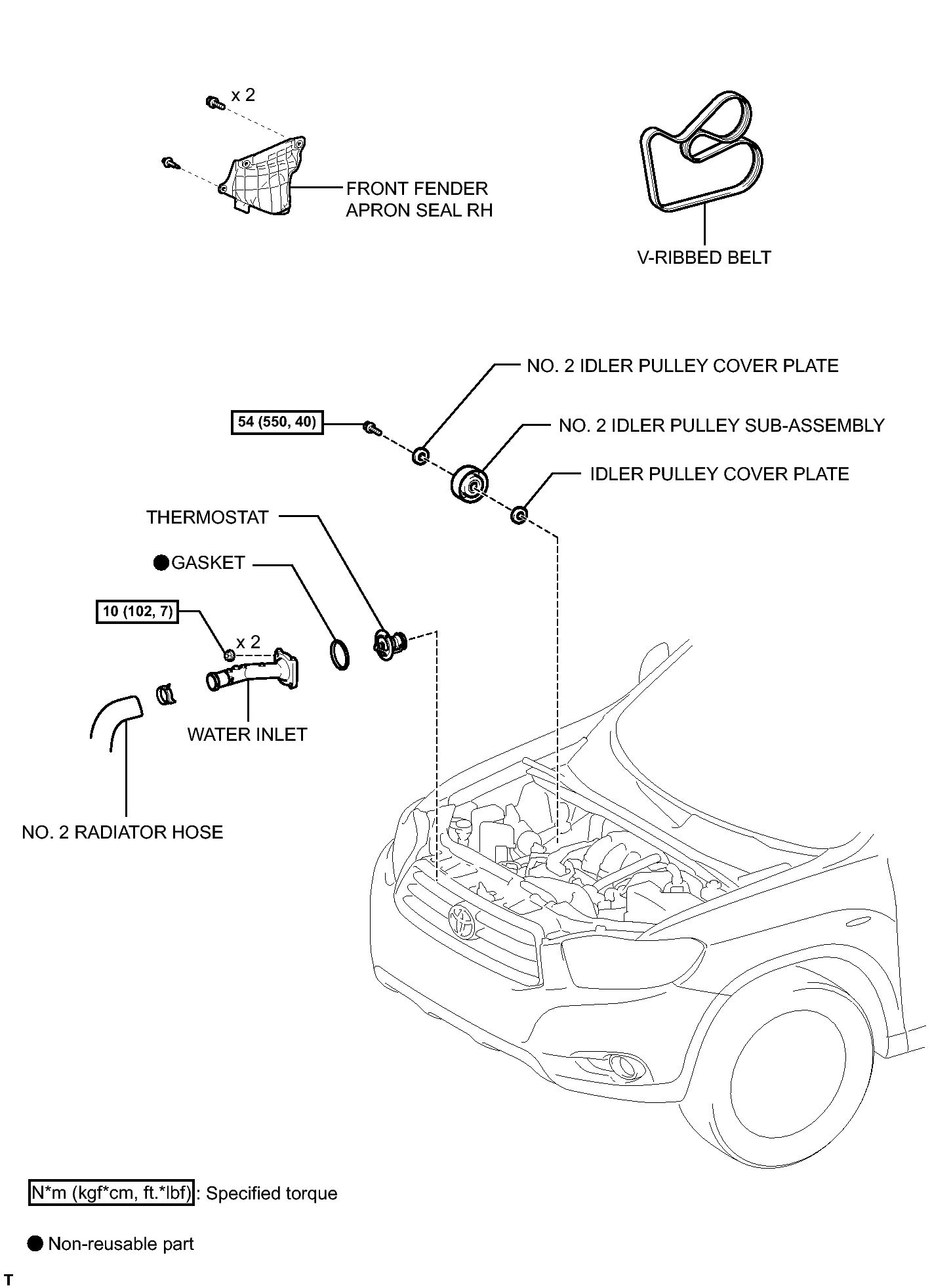

Fig 1: Identifying Thermostat Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
