System Diagram

WARNING: This page is about a different variant/trim than selected.

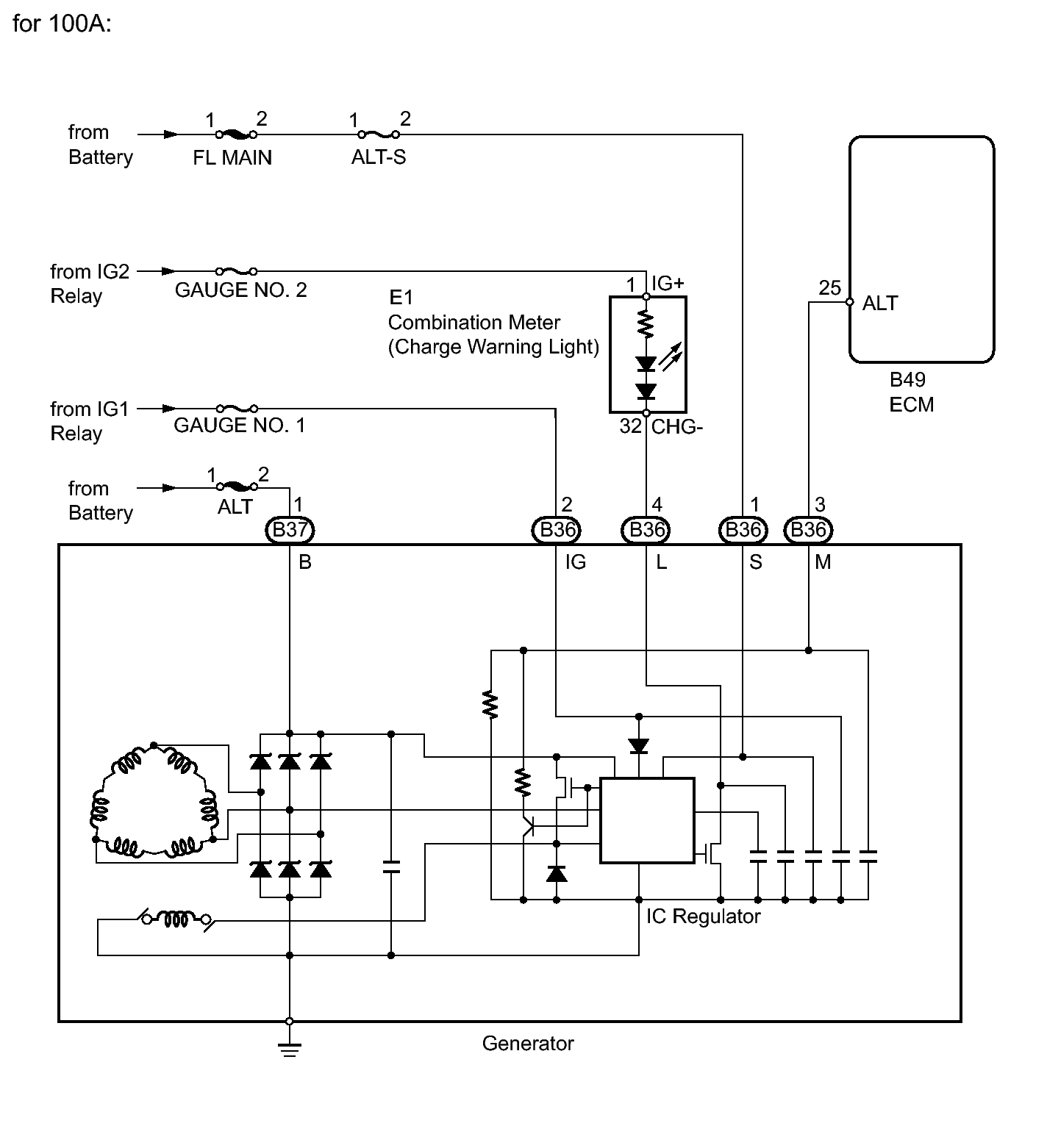

Fig 1: Identifying Charging System Circuit Diagram (1 of 2)
GTY183432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

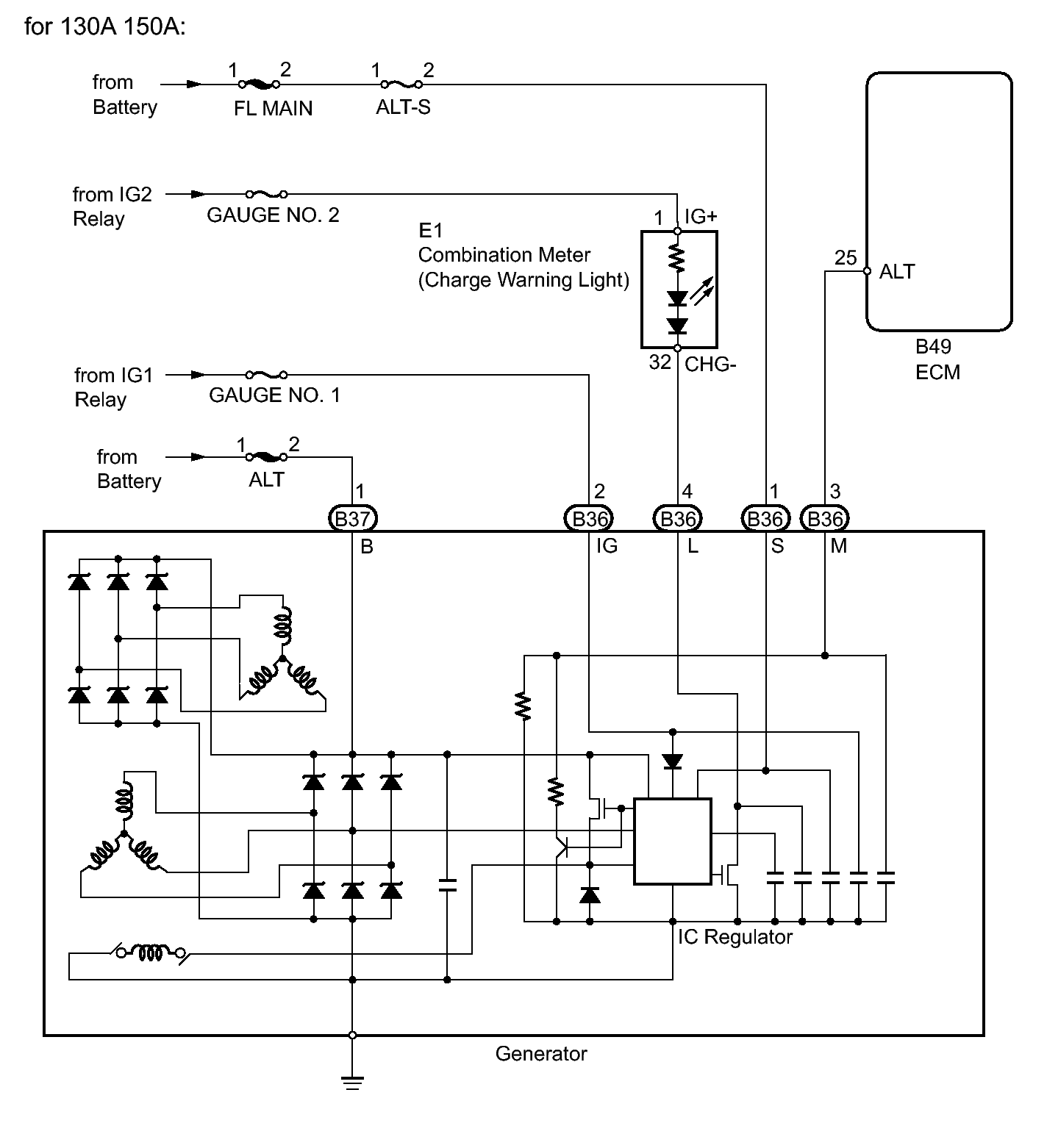

Fig 2: Identifying Charging System Circuit Diagram (2 of 2)
GTY178414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
