Section 30 (Ignition System (2GR-FE) (Service Information))
>>
Ignition Coil And Spark Plug
>>
Components
>>
Illustration
Ignition Coil And Spark Plug: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

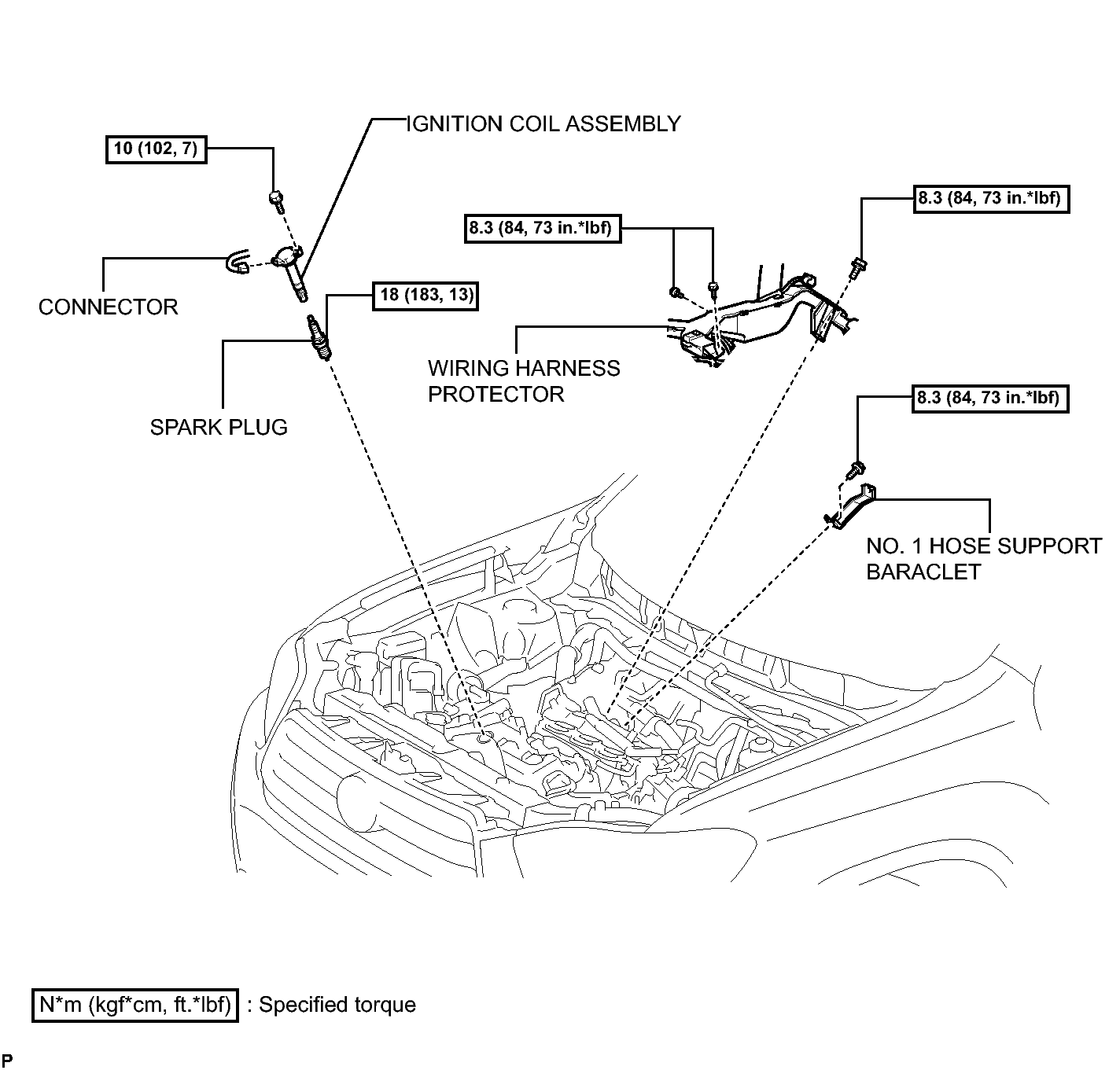

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
