Seat Position Sensor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

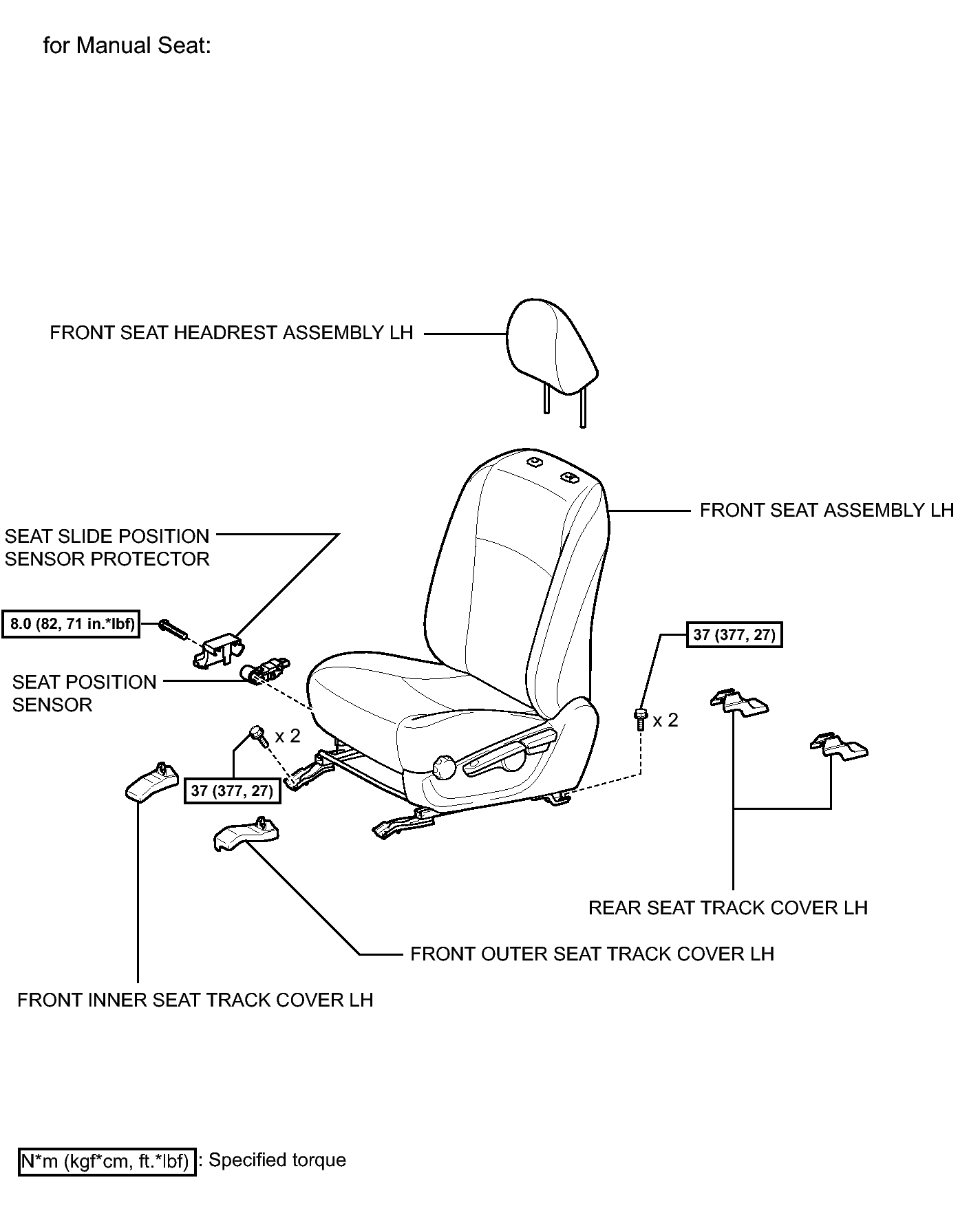

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY204545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

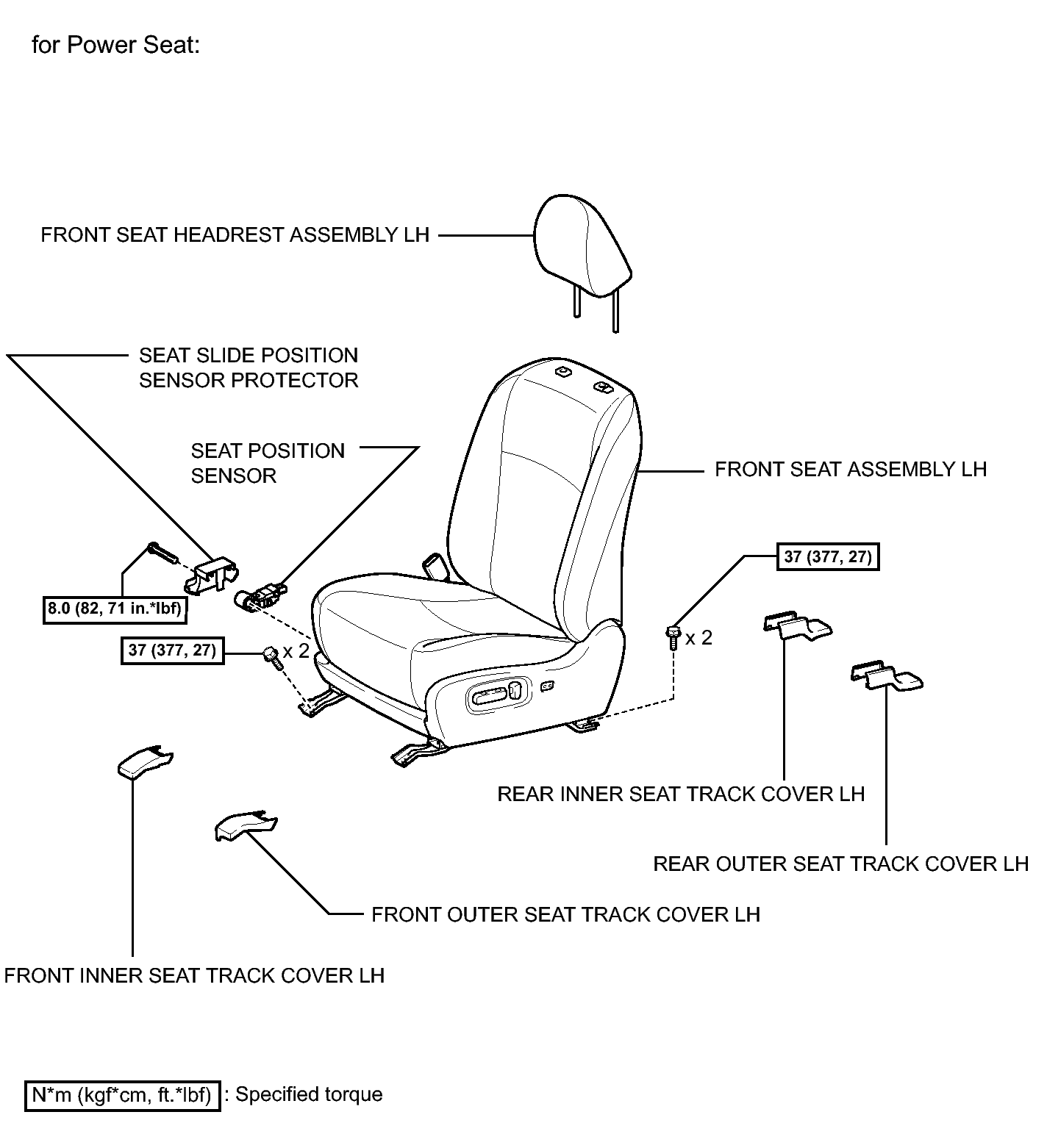

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY204167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
