SIDE AIRBAG SENSOR (for Rear Side): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

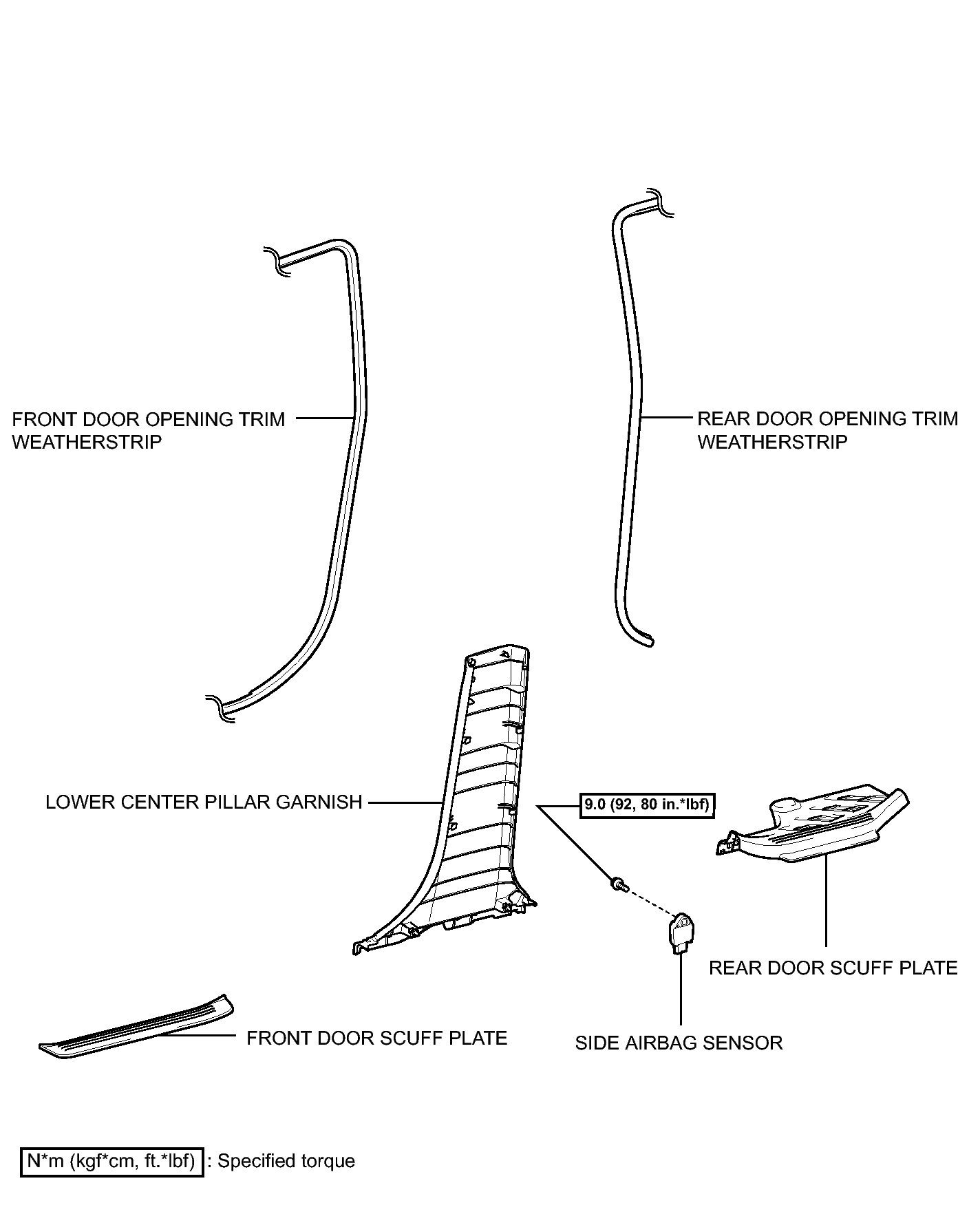

Fig 1: Side Airbag Sensor Replacement Components With Torque Specifications
GTY204165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
