SIDE AIRBAG SENSOR (for Front Side): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

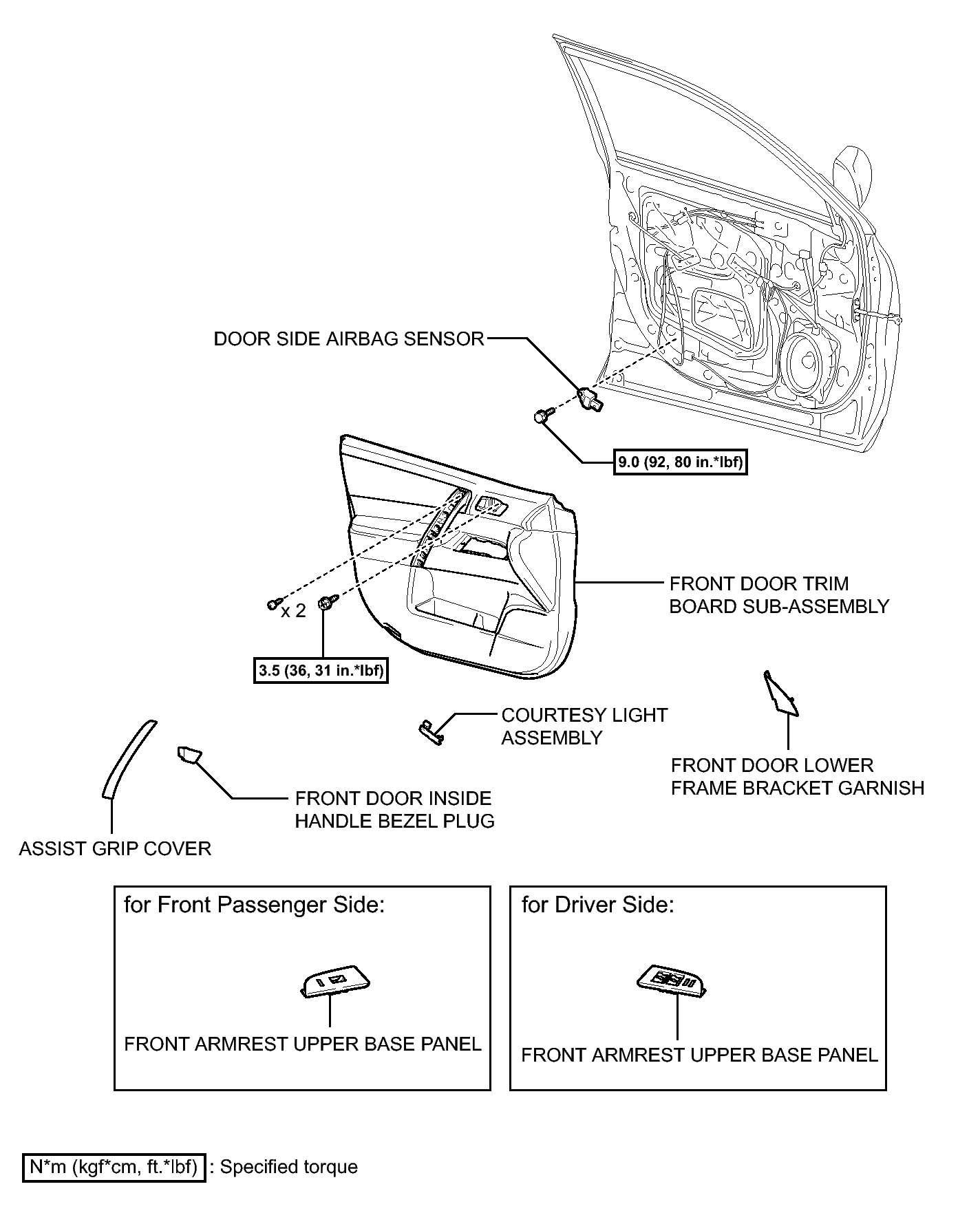

Fig 1: Identifying Side Airbag Sensor (For Front Side) Replacement Components With Torque Specifications
GTY305765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
