Front Passenger Airbag Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

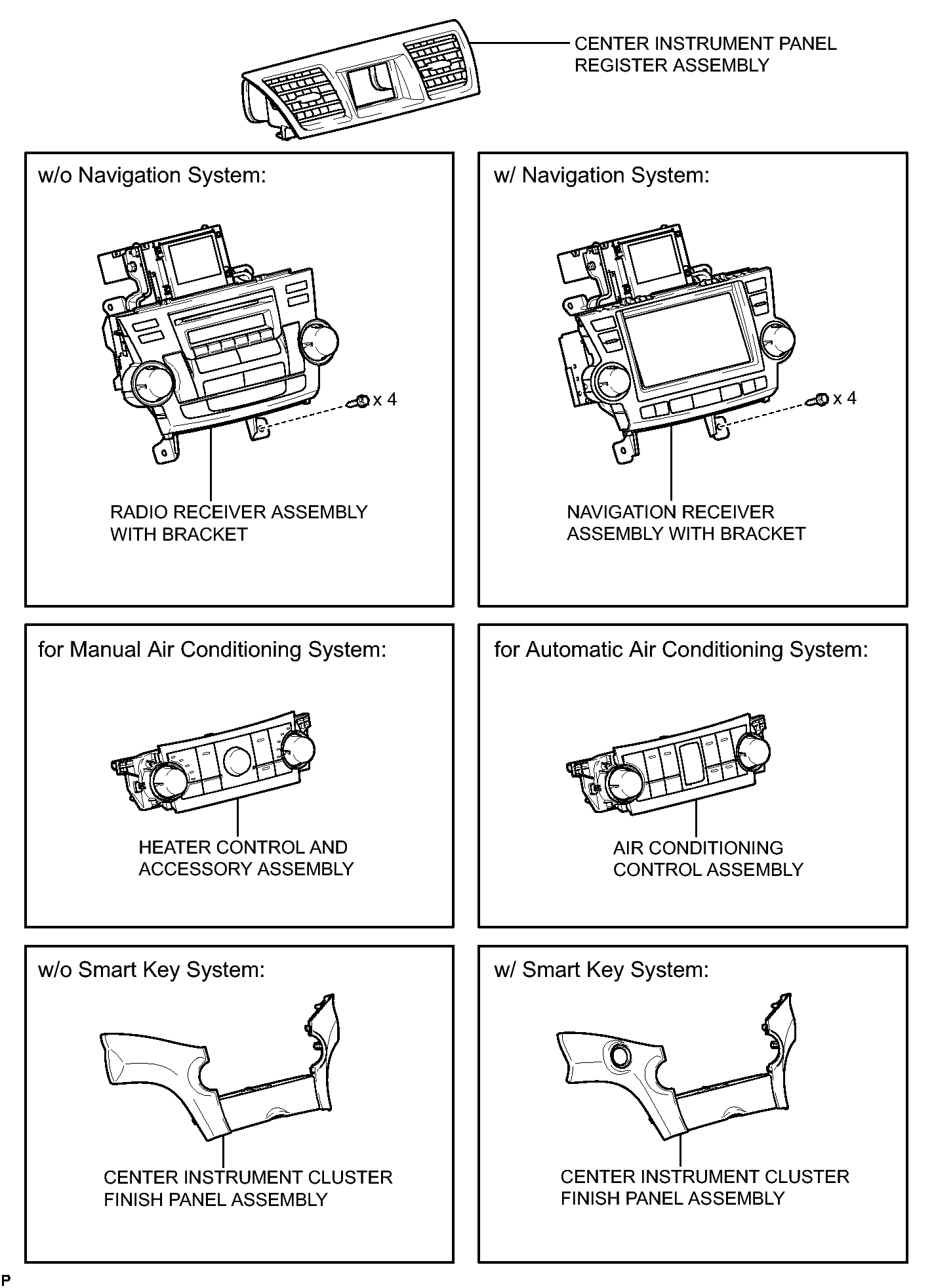

Fig 1: Identifying Front Passenger Airbag Assembly Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

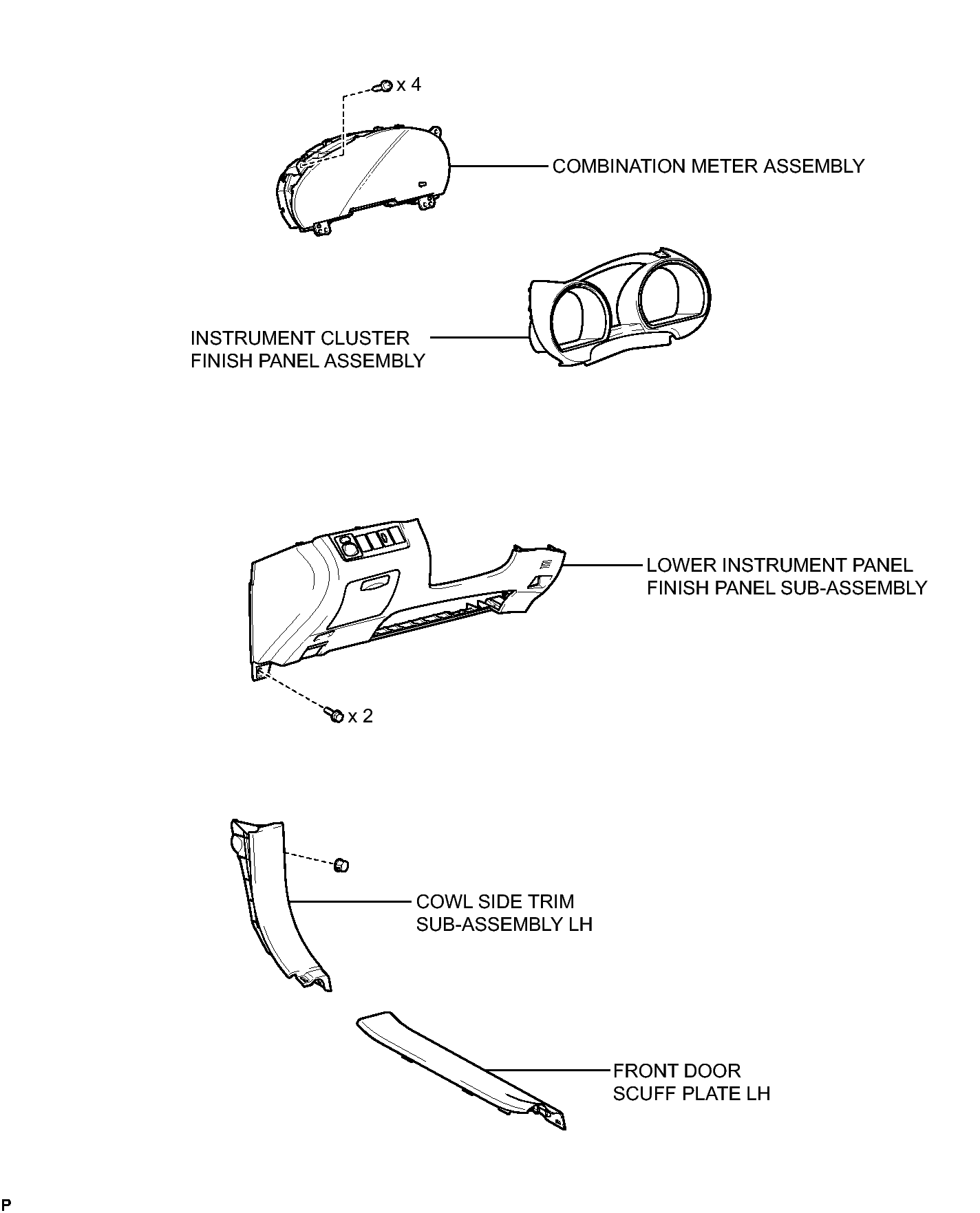

Fig 1: Identifying Front Passenger Airbag Assembly Replacement Components (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

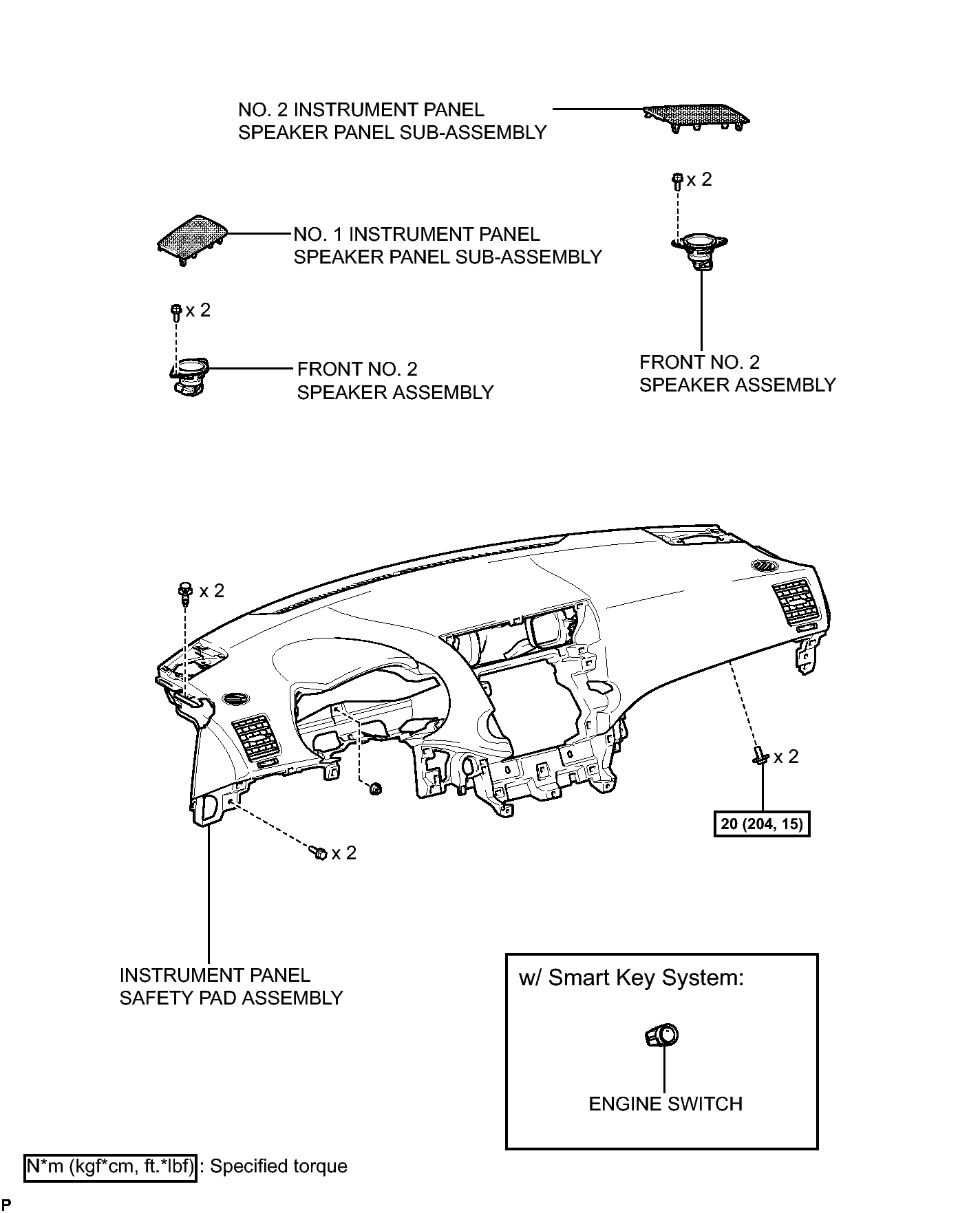

Fig 1: Identifying Front Passenger Airbag Assembly Replacement Components (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

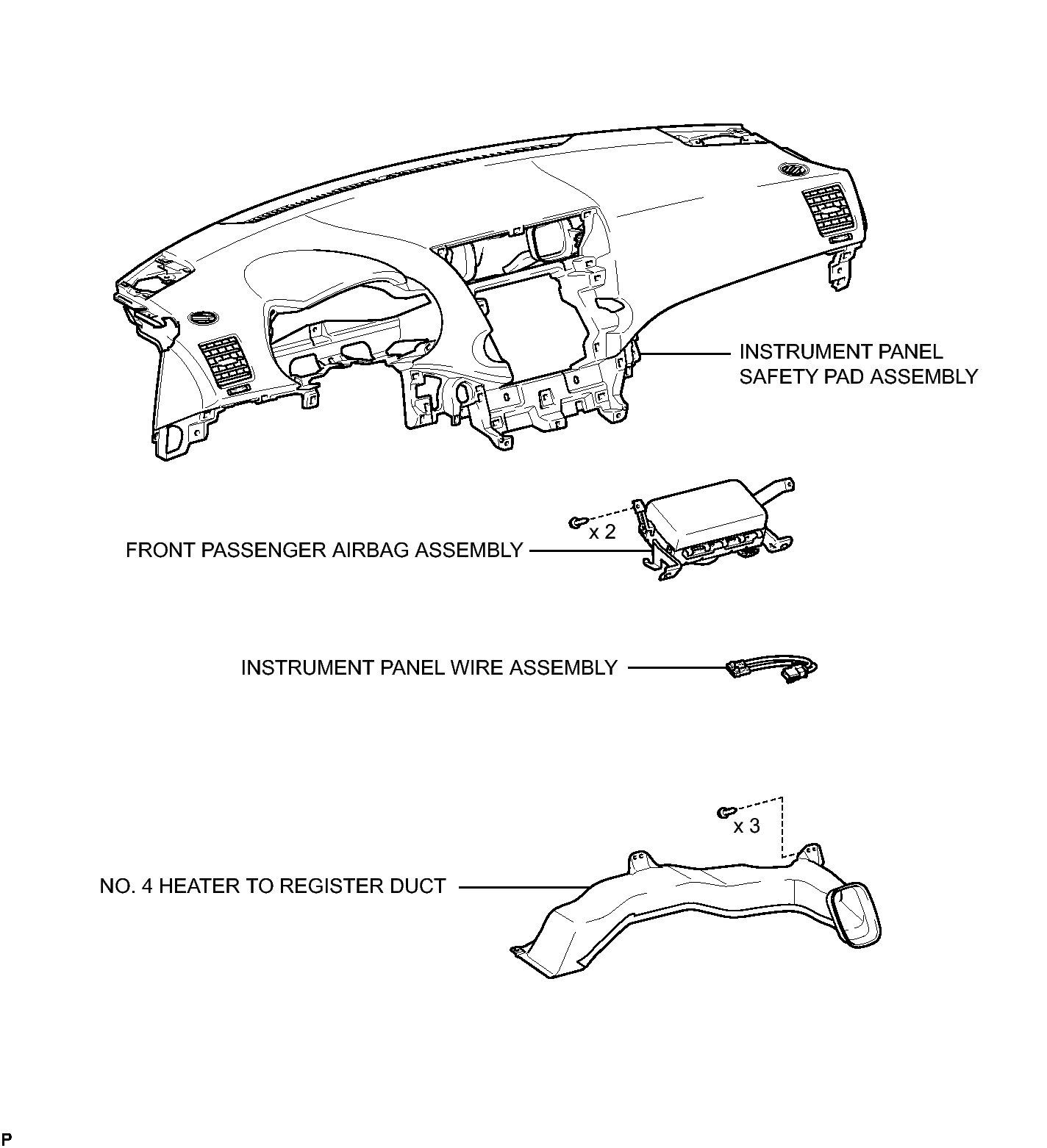

Fig 1: Identifying Front Passenger Airbag Assembly Replacement Components (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

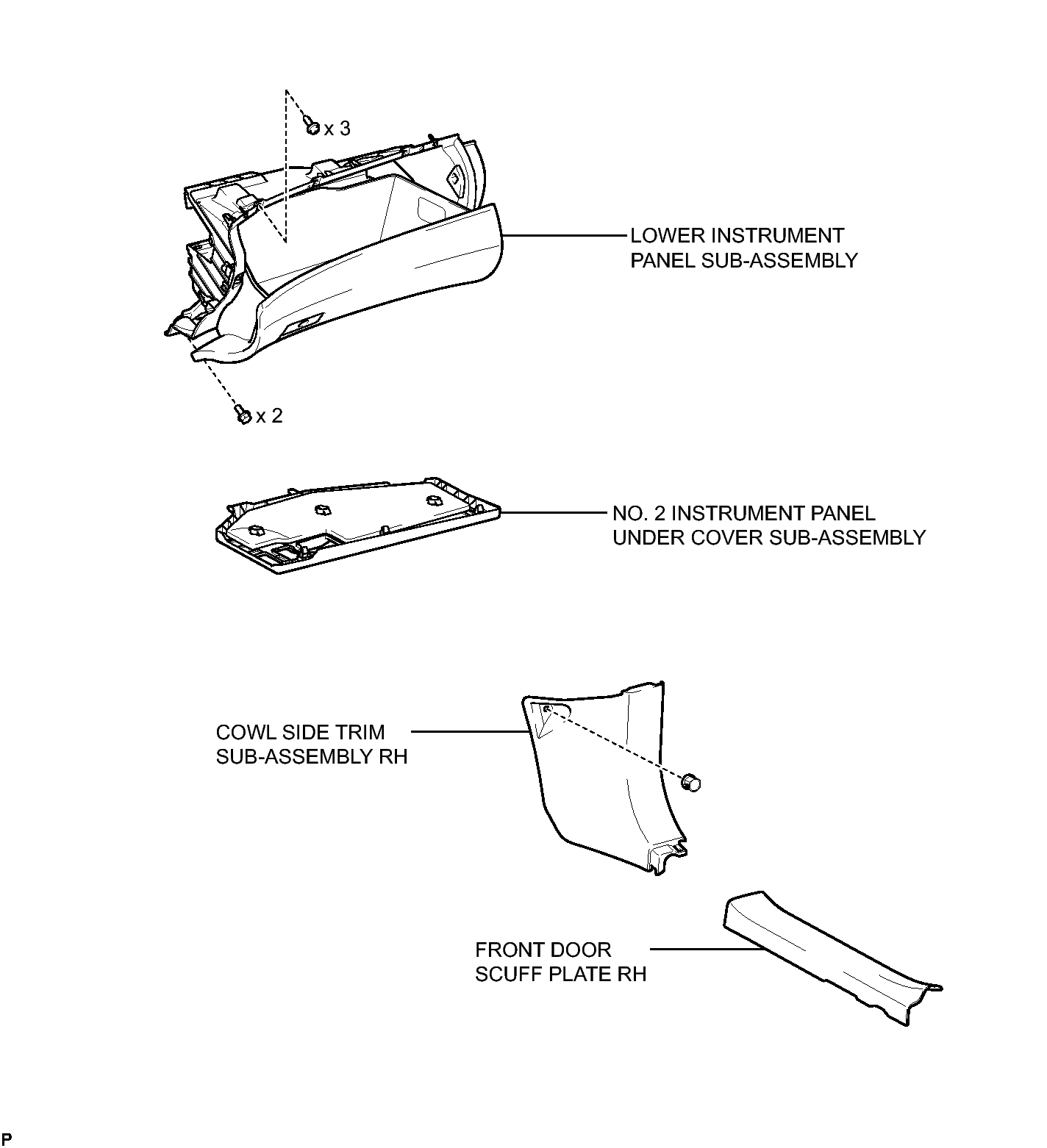

Fig 1: Identifying Front Passenger Airbag Assembly Replacement Components (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

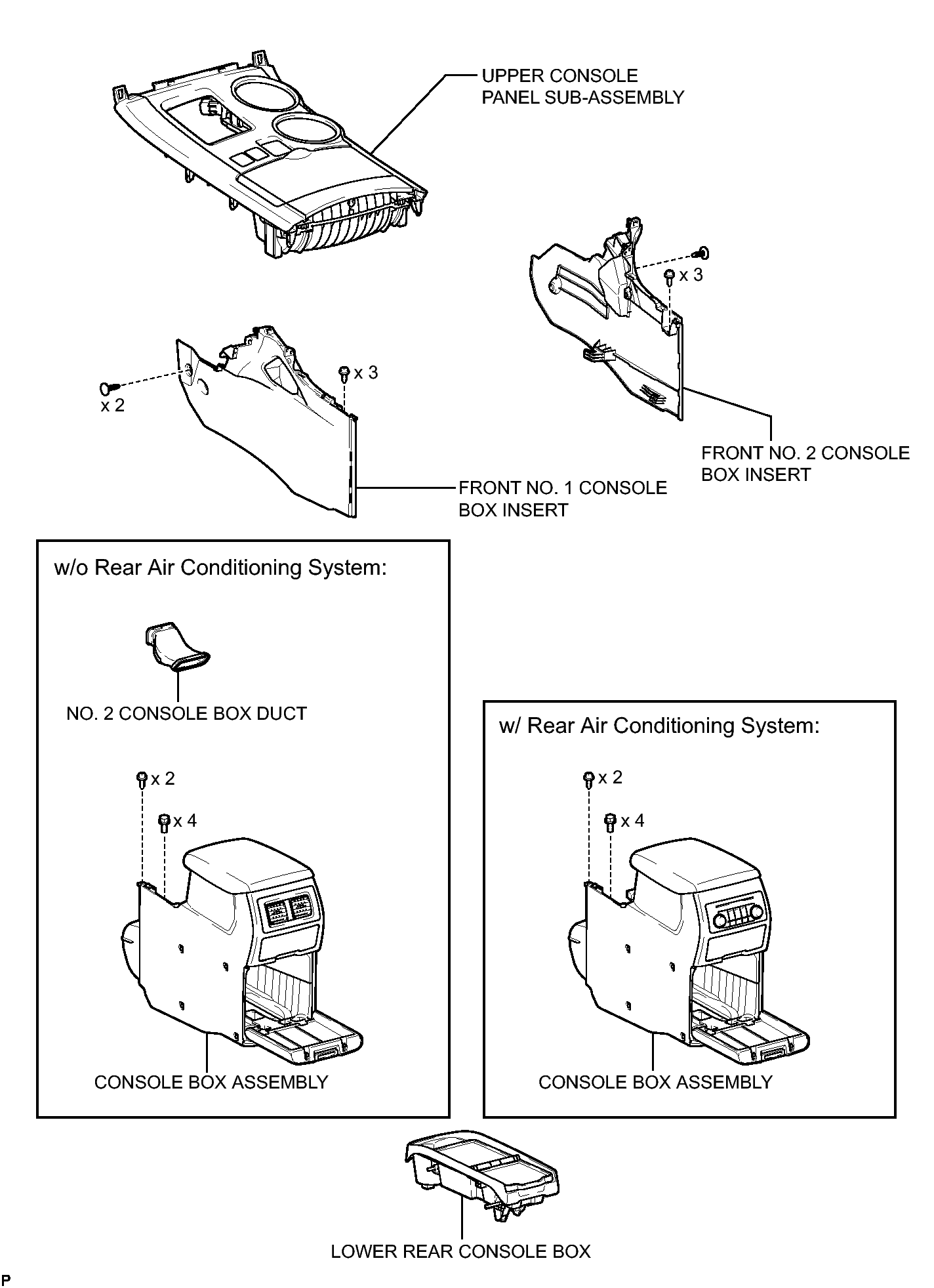

Fig 1: Identifying Front Passenger Airbag Assembly Replacement Components (6 Of 8)

Fig 1: Identifying Front Passenger Airbag Assembly Replacement Components With Torque Specification (7 Of 8)

Fig 1: Identifying Front Passenger Airbag Assembly Replacement Components (8 Of 8)
