Driver Side Knee Airbag Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

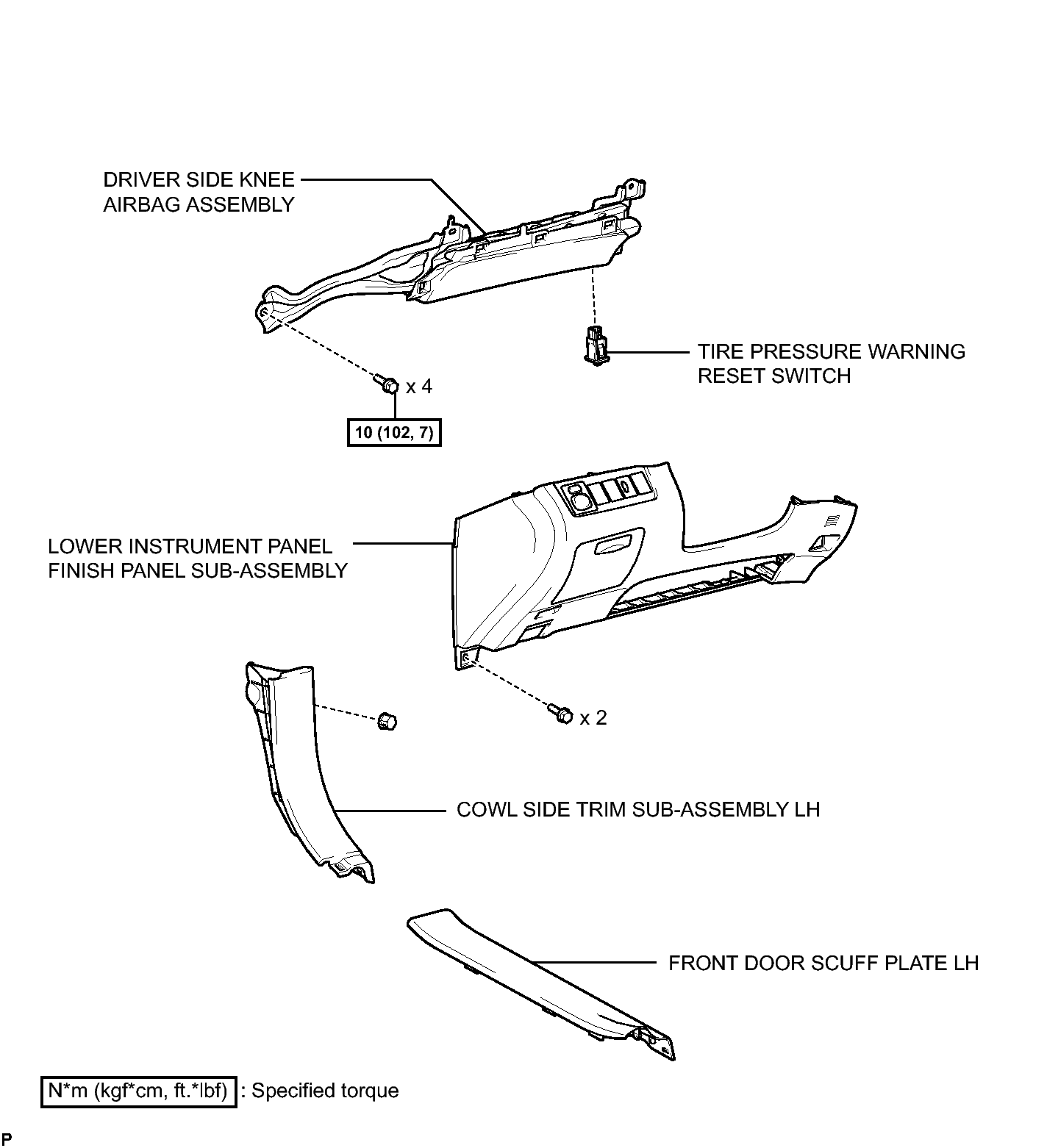

Fig 1: Driver Side Knee Airbag Assembly Replacement Components With Torque Specifications
GTY204156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
