Curtain Shield Airbag Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

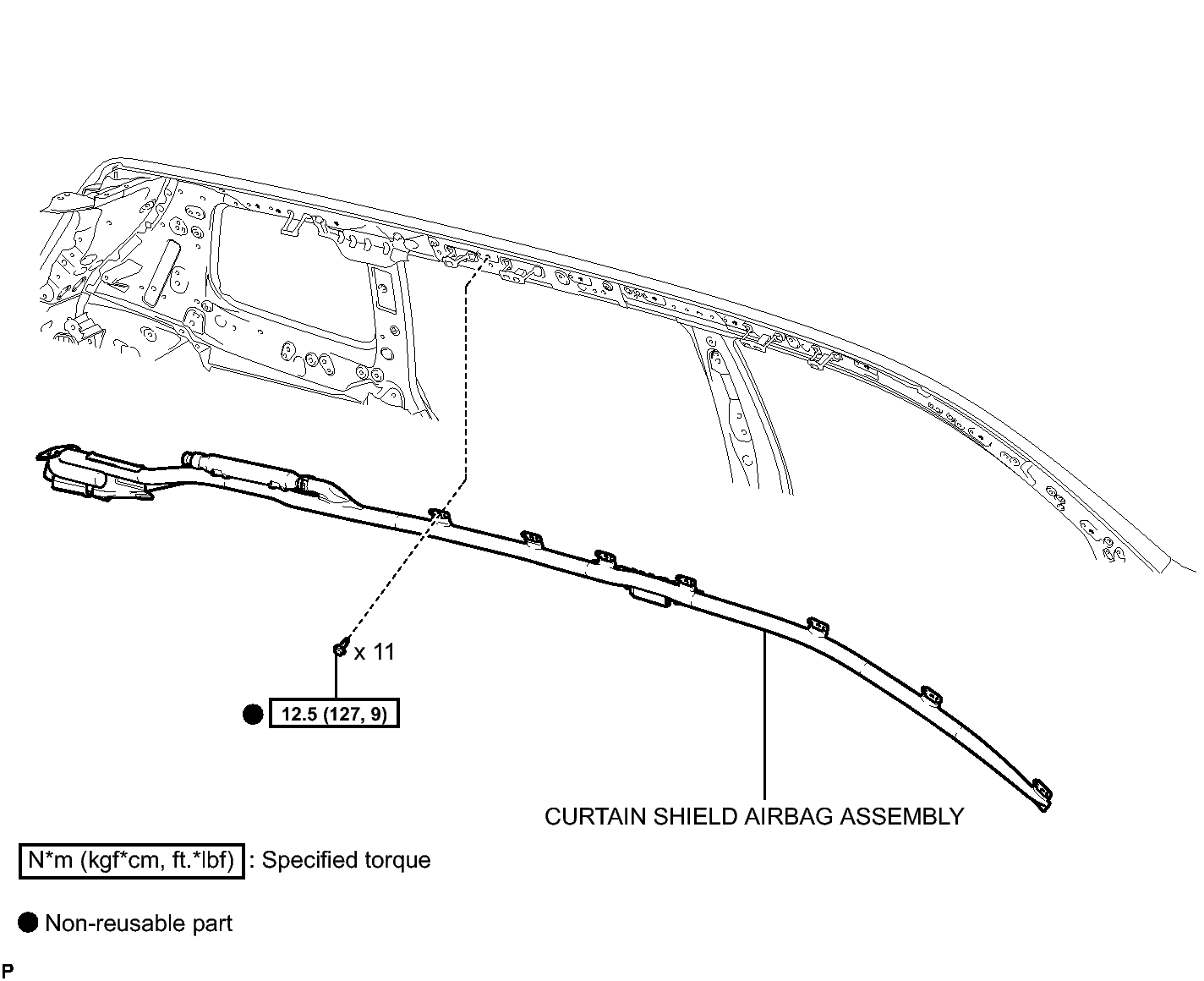

Fig 1: Identifying Curtain Shield Airbag Assembly Replacement Components With Torque Specifications
GTY299013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
