Drive Belt: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL RH
  2. REMOVE ENGINE UNDER COVER ASSEMBLY  See step  7
  3. REMOVE NO. 1 ENGINE UNDER COVER  See step  8
  4. REMOVE FRONT FENDER MOLDING SUB-ASSEMBLY RH
    1. Remove the clip.
      Fig 1: Identifying Front Fender Molding Screws Location
      GTY185411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 4 mm hexagon wrench, remove the screw.
    3. Peel off the front fender side protector and disengage the 3 clips, and then remove the front fender molding sub-assembly RH.
      Fig 2: Identifying Clips Location Of Front Fender Molding Sub-Assembly RH
      GTY185202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the pad from the front fender molding sub-assembly RH.
    5. Remove the 2 clips No. 4 from the front fender molding sub-assembly RH.
    6. Remove the front fender side protector from the front fender molding sub-assembly RH.
      Fig 3: Identifying Front Fender Molding Sub-Assembly RH
      GTY190878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT FENDER LINER RH  . Refer to REMOVAL - Step 6
  6. REMOVE FRONT FENDER APRON SEAL RH  See step  16
  7. REMOVE V-RIBBED BELT
    1. Using SST, release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise, and remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
      Fig 4: Identifying V-Ribbed Belt Tensioner Assembly Component Counterclockwise with SST 09249-63010
      GTY185273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09961-00950

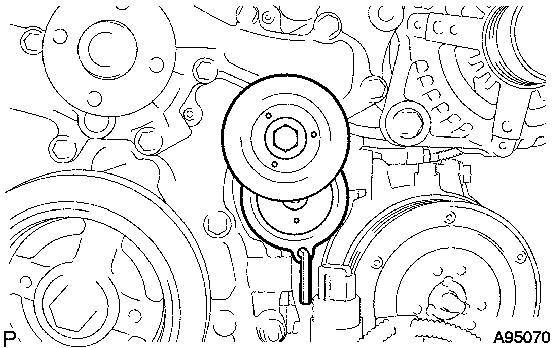

    2. While turning the V-ribbed belt tensioner assembly counterclockwise, align with its holes, and then insert the 5 mm bi-hexagon wrench into the holes to fix the V-ribbed belt tensioner assembly.
      Fig 5: Identifying Bi-Hexagon Wrench Into Holes To Fix V-Ribbed Belt Tensioner Component
      GTY145198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
