CYLINDER HEAD GASKET (for Bank 2): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

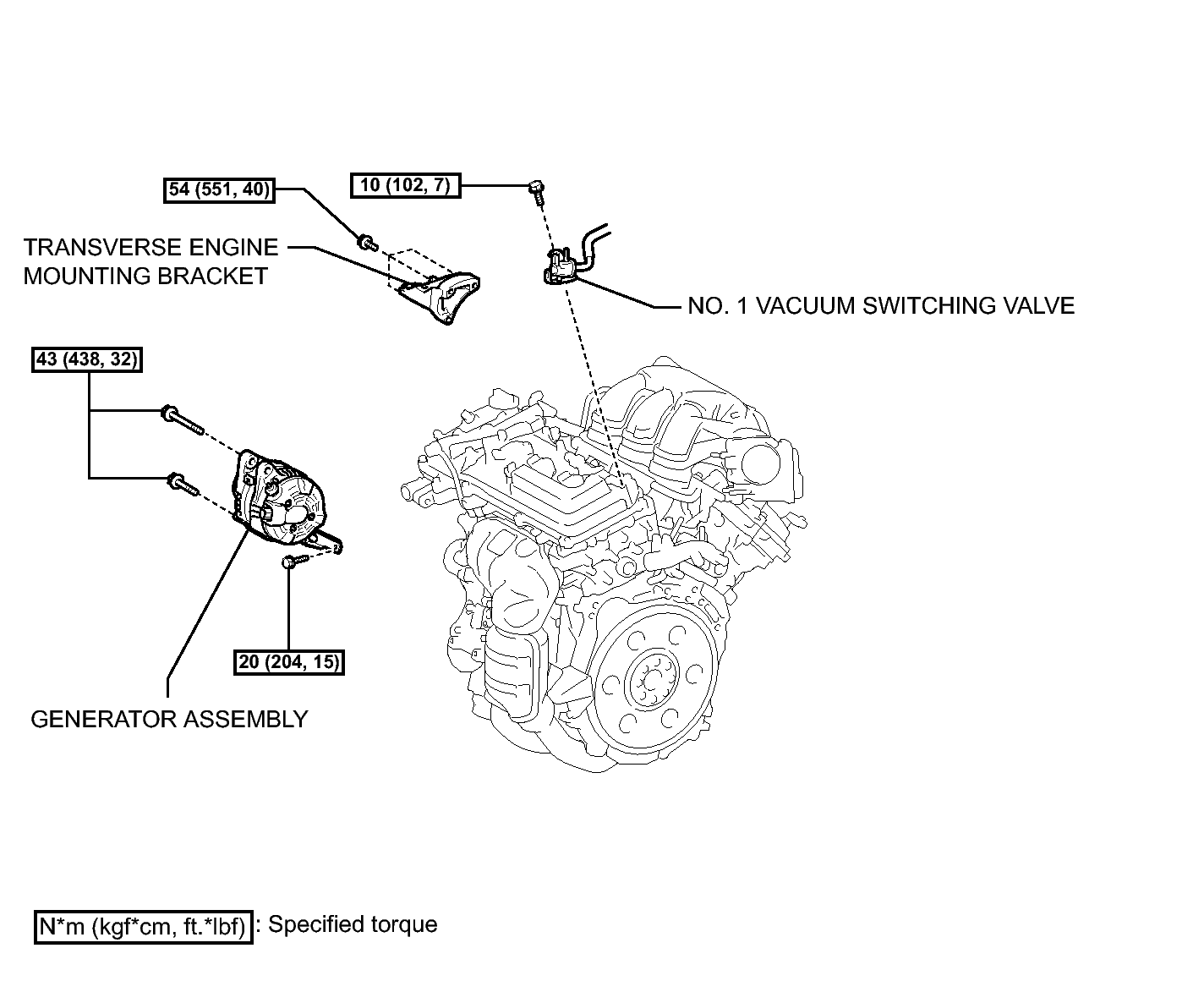

Fig 1: Identifying Cylinder Head Gasket (For Bank 2) Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

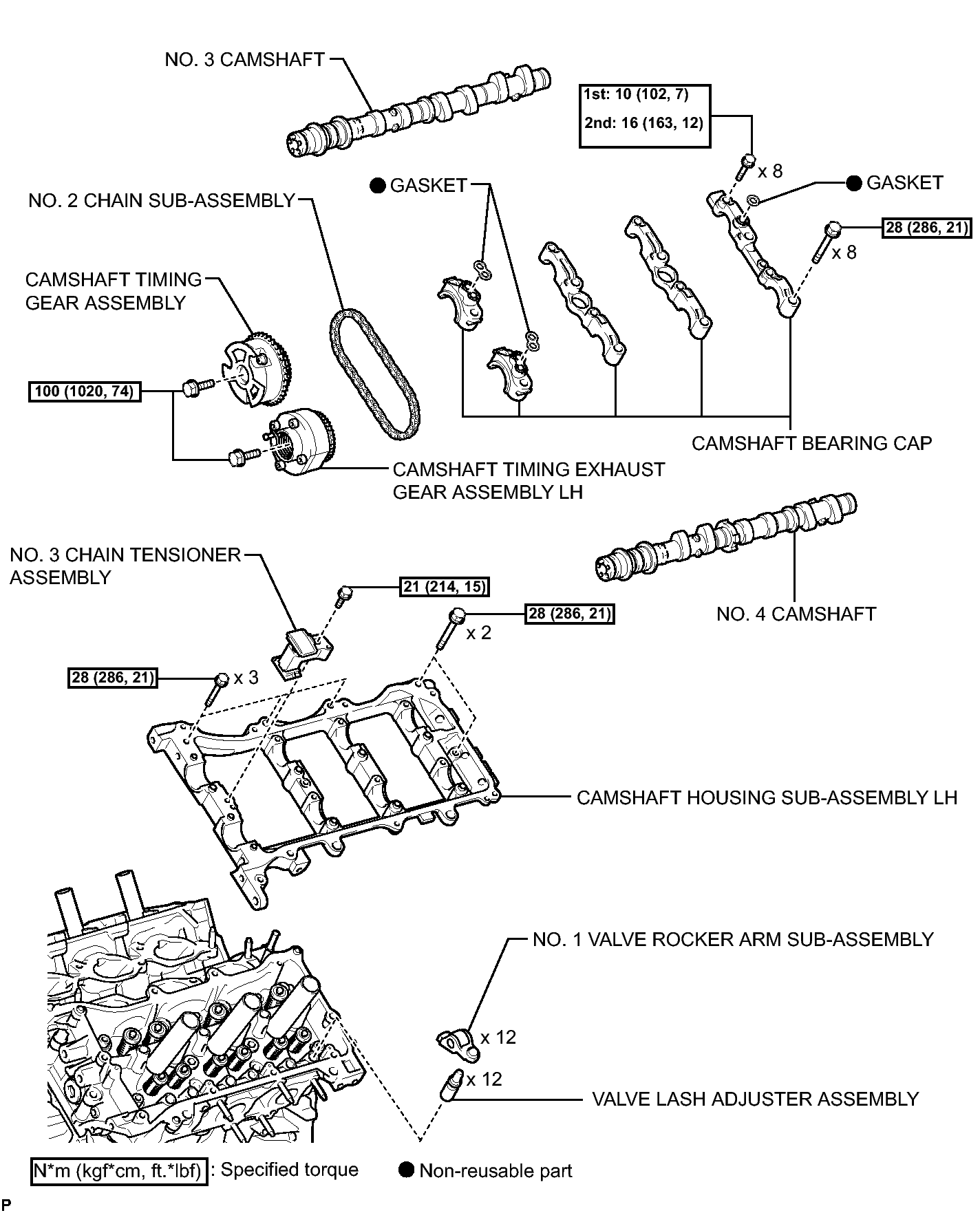

Fig 1: Identifying Cylinder Head Gasket (For Bank 2) Replacement Components With Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

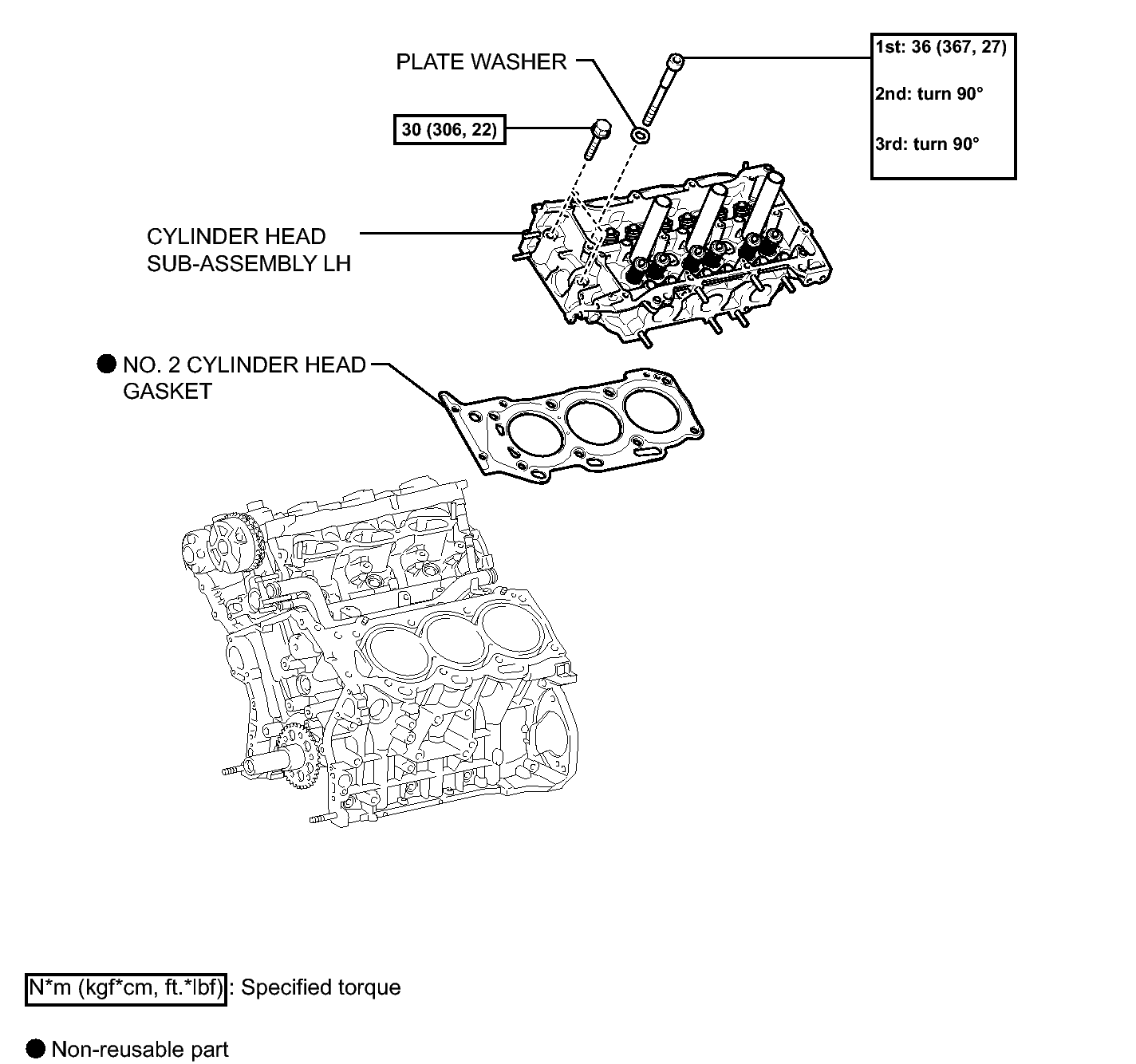

Fig 1: Identifying Cylinder Head Gasket (For Bank 2) Replacement Components With Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Cylinder Head Gasket (For Bank 2) Replacement Components With Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Cylinder Head Gasket (For Bank 2) Replacement Components With Torque Specifications (6 Of 9)

Fig 1: Identifying Cylinder Head Gasket (For Bank 2) Replacement Components With Torque Specifications (7 Of 9)

Fig 1: Identifying Cylinder Head Gasket (For Bank 2) Replacement Components With Torque Specifications (8 Of 9)

Fig 1: Identifying Cylinder Head Gasket (For Bank 2) Replacement Components With Torque Specifications (9 of 9)
