Section 27 (Automatic Transmission (U760E) (Service Information)): TCM: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL TCM
1. Install the TCM to the transaxle.
2. Install and tighten the 2 bolts in the order shown in the illustration.

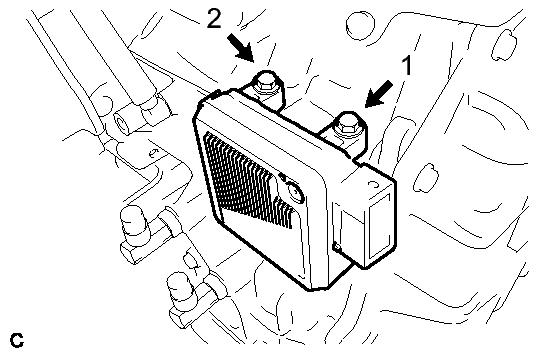

  Fig 1: Locating TCM Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
3. Connect the connector to the TCM.

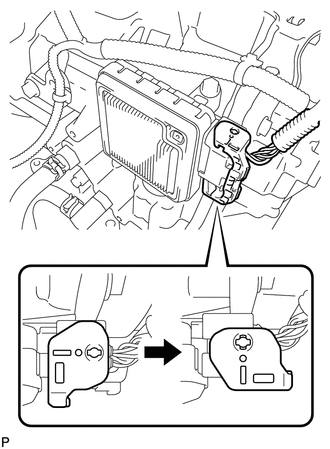

  Fig 2: Connecting Connector To TCM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the lock lever and secure the connector with the lock lever.
INSTALL NO. 1 INLET AIR CLEANER . Refer to INSTALLATION - Step 51
INSTALL AIR CLEANER BRACKET . Refer to INSTALLATION - Step 52
INSTALL AIR CLEANER CASE SUB-ASSEMBLY . Refer to INSTALLATION - Step 53
INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY . Refer to INSTALLATION - Step 54
INSTALL AIR CLEANER CAP SUB-ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL NO. 2 INLET AIR CLEANER . Refer to INSTALLATION - Step 56
INSTALL BATTERY . Refer to INSTALLATION - Step 57
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 89
INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 12
INSTALL EJECTOR TUBE . Refer to INSTALLATION - Step 10
INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 3
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH . Refer to INSTALLATION - Step 5
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH . Refer to INSTALLATION - Step 6
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 90
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected, refer to INITIALIZATION .
PERFORM TCM REGISTRATION
HINT:

Refer to PRECAUTION
