Shift Lever: Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL NO. 2 POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover to the No. 2 position indicator slide cover.

  Fig 1: Identifying No. 2 Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover to the position indicator housing lower.

  Fig 2: Identifying Position Indicator Slide Cover Component
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Install the No. 2 position indicator slide cover with the boss facing the rear of the vehicle.
INSTALL POSITION INDICATOR HOUSING LOWER
1. Engage the 4 claws and install the position indicator housing lower to the position indicator housing.

  Fig 3: Identifying Position Indicator Housing Lower Claws Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Make sure that the claws are firmly engaged.
INSTALL POSITION INDICATOR LIGHT GUIDE
1. Engage the 4 claws and install the position indicator light guide to the position indicator housing lower.

  Fig 4: Identifying Position Indicator Light Guide Claws Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Make sure that the claws are firmly engaged.
INSTALL POSITION INDICATOR LIGHT BULB
1. Install the cap to the bulb.
2. install the bulb to the position indicator light wire socket.
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Install the indicator light wire sub-assembly to the position indicator light guide.

  Fig 5: Identifying Indicator Light Wire Sub-Assembly Connector Component
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER CAP
1. Install the shift lever cap to the position indicator housing.
INSTALL POSITION INDICATOR HOUSING ASSEMBLY
1. Engage the 4 claws and install the position indicator housing to the shift lever assembly.

  Fig 6: Identifying Position Indicator Housing Claws Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Make sure that the claws are firmly engaged.
2. Connect the wire harness clamp to the shift lock control unit.
3. Connect terminals 4 and 8 of the indicator light wire.

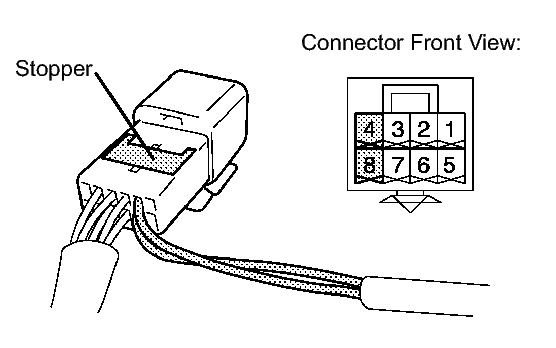

  Fig 7: Identifying Stopper On Connector & Terminal Identification
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Push the stopper.
5. Connect the connector and 2 wire harness clamps to the shift lock control unit.

  Fig 8: Identifying Wire Harness Clamps Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
