Shift Lever: Adjustment: Adjustment

WARNING: This page is about a different variant/trim than selected.

ADJUST SHIFT LEVER POSITION
1. Move the shift lever to N.

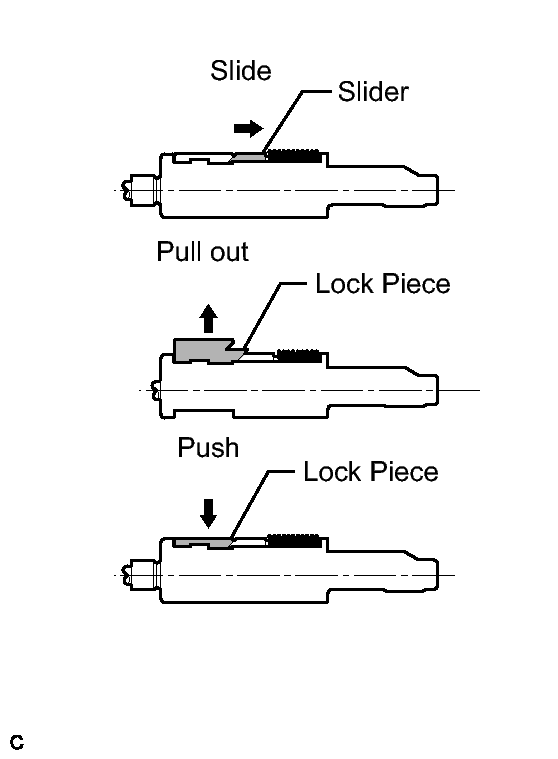

  Fig 1: Identifying Adjusting Shift Lever Position Locations
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Slide the slider in the direction shown in the illustration and pull out the lock piece.
3. Push the lock piece into the adjuster case.
  NOTE:
  Firmly push in the lock piece until the slider locks.
4. After adjusting the shift lever position, check the operation and function of the shift lever. If there is a problem, adjust the position again.
