Section 26 (Automatic Transmission (U151F) (Service Information))
>>
Differential Case
>>
Components
>>
Illustration
Differential Case: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

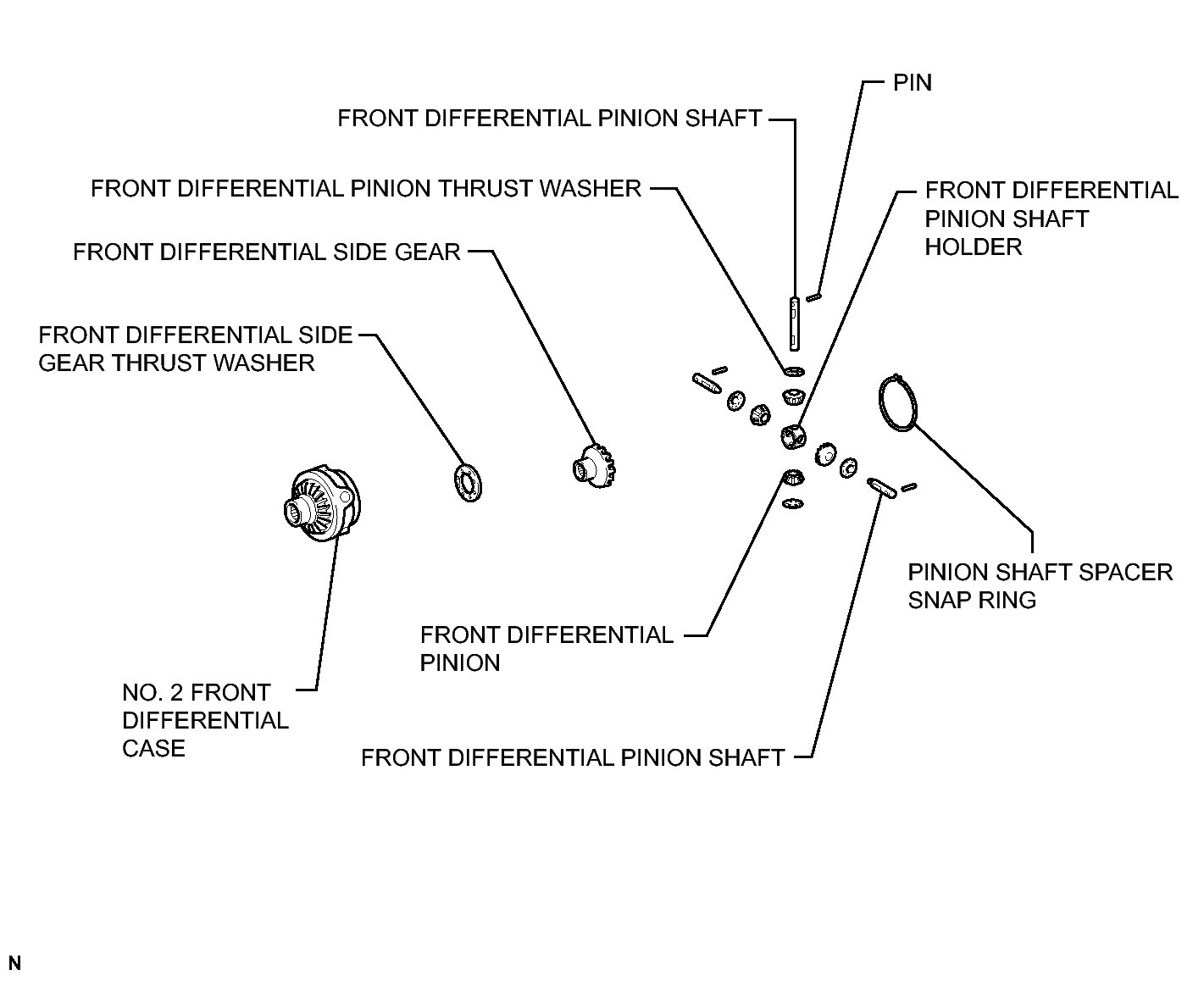

Fig 1: Identifying Differential Case Replacement Components With Torque Specification (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Differential Case Replacement Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

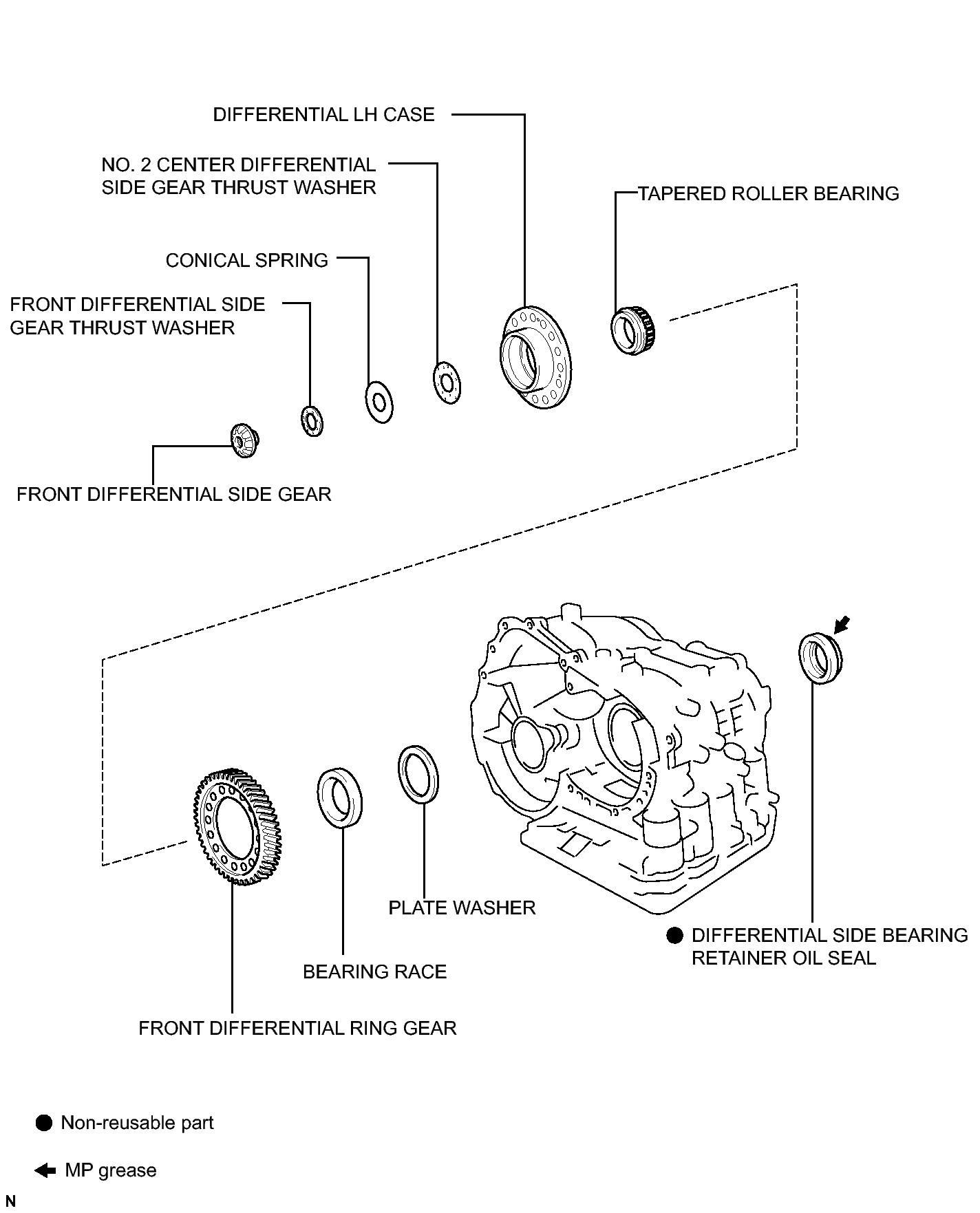

Fig 1: Identifying Differential Case Replacement Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
