Automatic Transaxle Unit: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

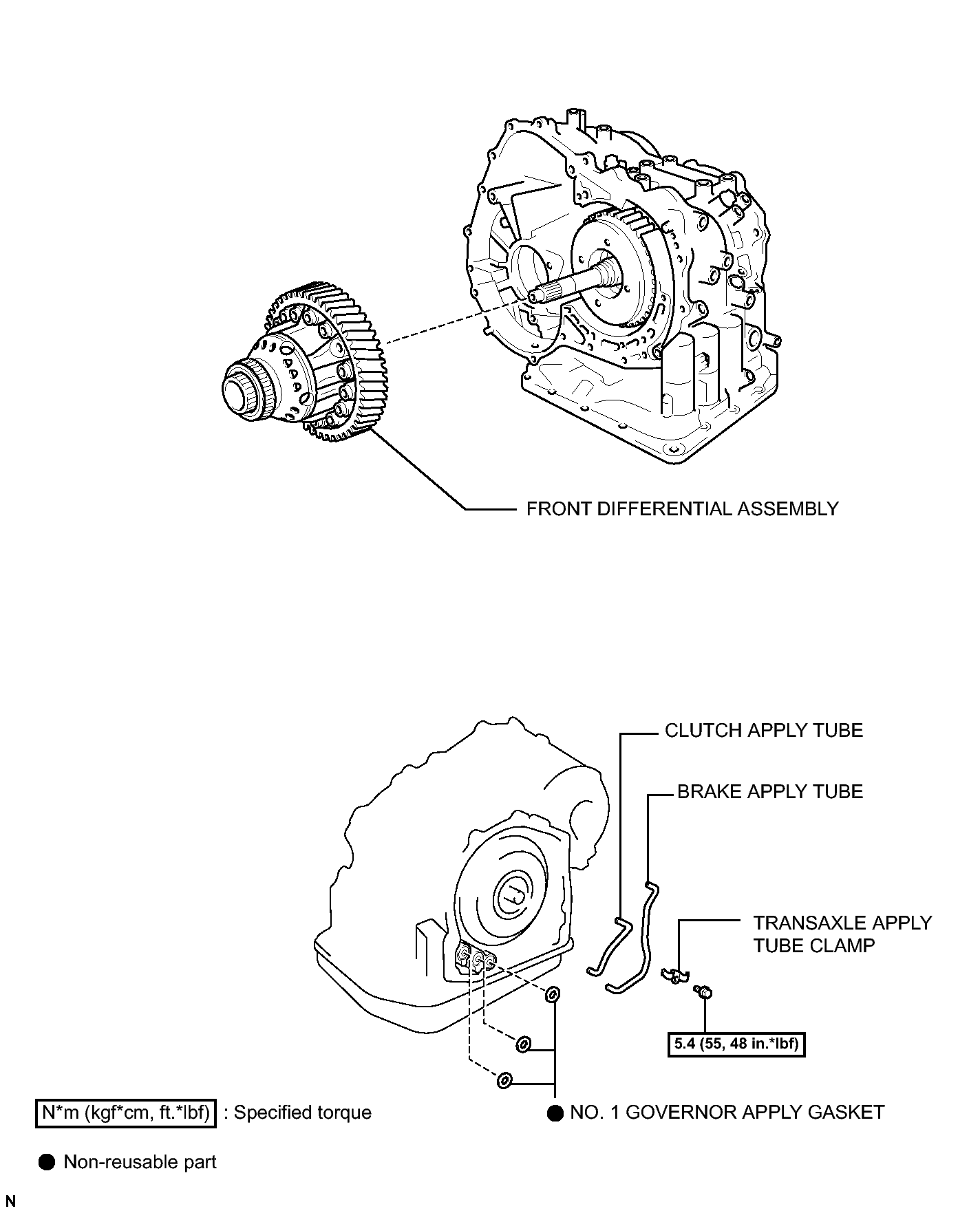

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

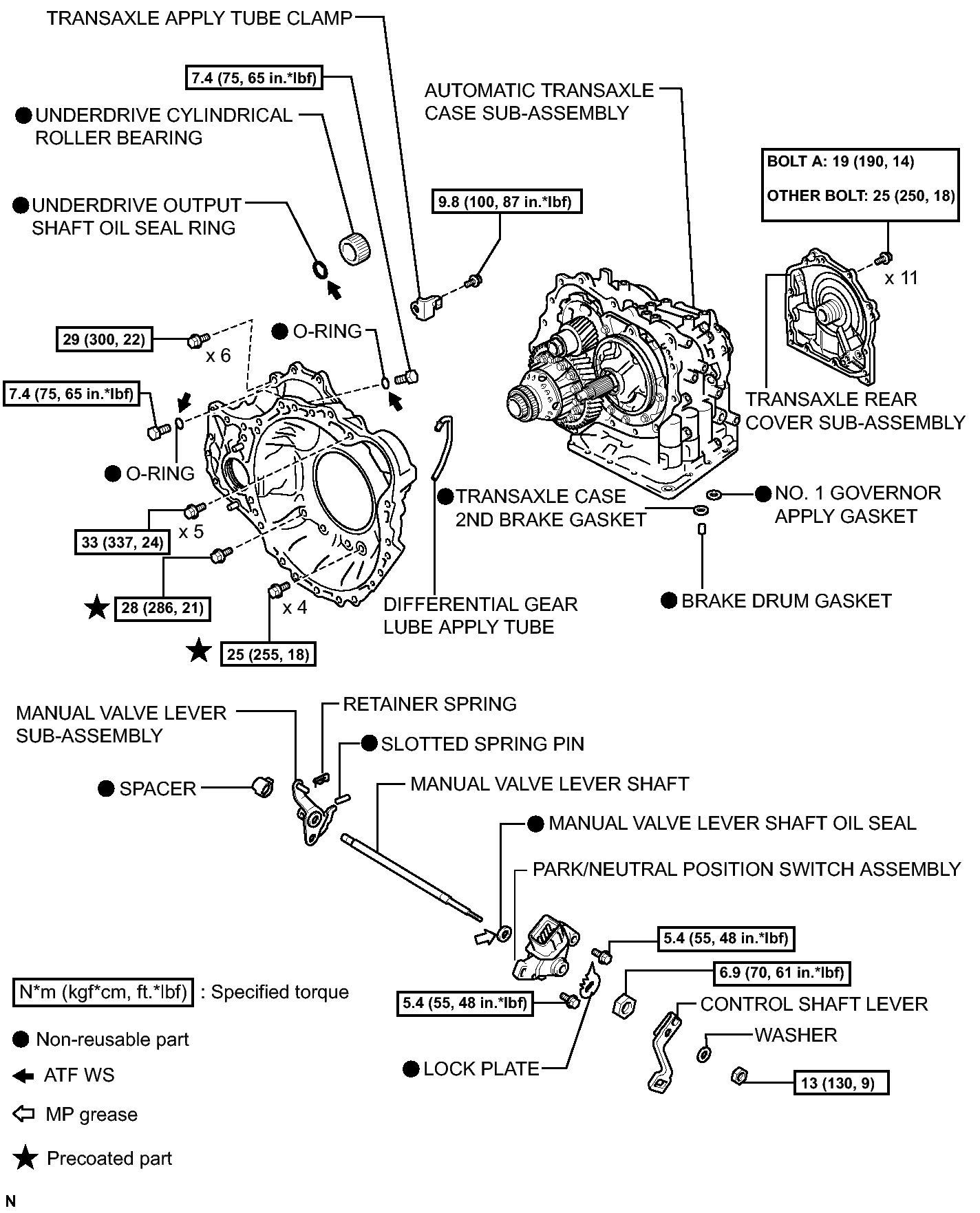

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (7 Of 10)

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (8 Of 10)

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (9 Of 10)

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (10 Of 10)
