Valve Body Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Valve Body Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY301760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY204759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

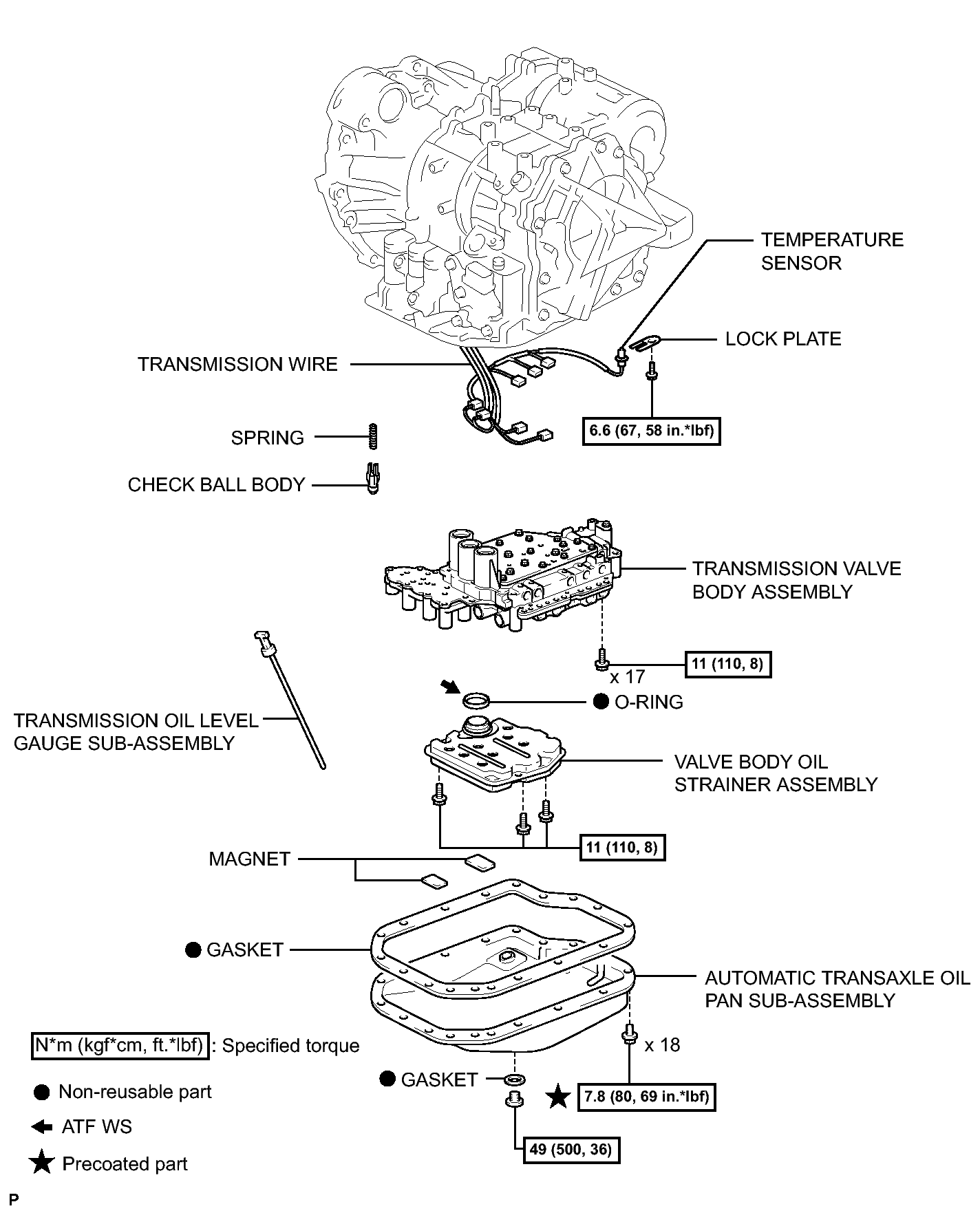

Fig 1: Identifying Valve Body Assembly Replacement Components With Torque Specification (1 Of 3)
GTY204454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
