UNDERDRIVE Planetary Gear: Inspection: Inspection

WARNING: This page is about a different variant/trim than selected.

INSPECT UNDERDRIVE PLANETARY GEAR PRELOAD
1. Using SST, secure the underdrive planetary gear assembly.

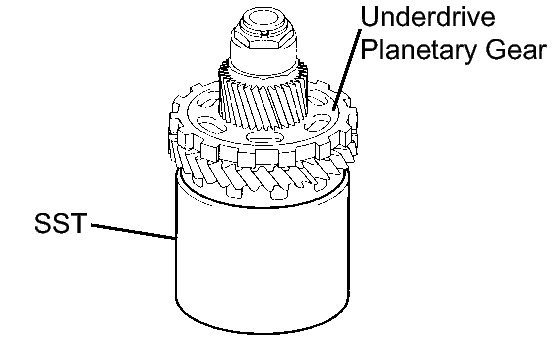

  Fig 1: Identifying Underdrive Planetary Gear Assembly Component & SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09387-00050
2. Using SST and a torque wrench, measure the turning torque of the underdrive planetary gear assembly while rotating the torque wrench at 60 RPM.

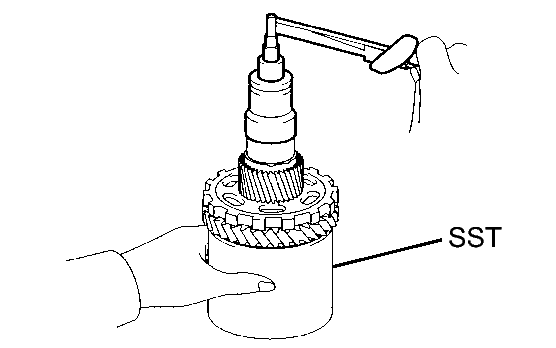

  Fig 2: Identifying Turning Torque Of Underdrive Planetary Gear Assembly Component with SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09387-00050
  Turning torque at 60 RPM.

  0.50 to 1.42 N*m (5.1 to 14.5 kgf*cm, 4.4 to 12.6 in.*lbf)

  HINT:

  Use a torque wrench with a fulcrum length of 160 mm (6.3 in.).
